  • Page 1 N870EP6 / N871EP6...

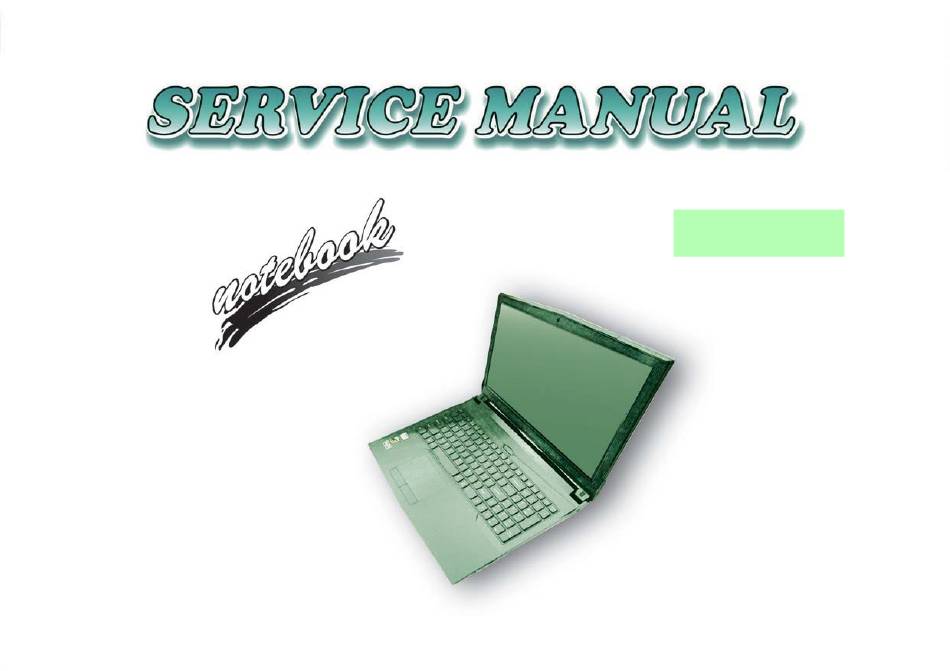

  • Page 3 Preface Notebook Computer N870EP6 / N871EP6 Service Manual...
  • Page 4 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven- dor.
  • Page 5 Preface About this Manual This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers. It is organized to allow you to look up basic information for servicing and/or upgrading components of the N870EP6 / N871EP6 series notebook PC.
  • Page 6 Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per- sons when using any electrical equipment: 1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
  • Page 7 Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...
  • Page 8 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data. Take care when using peripheral devices. Use only approved brands of Unplug the power cord before peripherals.
  • Page 9 Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
  • Page 10 Preface Related Documents You may also need to consult the following manual for additional information: User’s Manual on CD/DVD This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro- gram. It also describes the installation and operation of the utility programs provided with the notebook PC. System Startup 1.

  • Page 11: Table Of Contents

    Preface Contents Introduction ..........1-1 Main Board ................... A-5 HDD ....................A-6 Overview ..................1-1 LCD ....................A-7 Specifications ..................1-2 Schematic Diagrams......... B-1 External Locator - Top View with LCD Panel Open ......1-4 External Locator - Front & Right Side Views .........1-5 System Block Diagram ..............B-2 External Locator - Left Side &...
  • Page 12 Preface mDP (dGPU) ................B-28 PEX_VDD ..................B-60 Panel, Inverter ................B-29 FBVDDQ ..................B-61 HDMI ................... B-30 1V8_RUN 1V8_AON, NV3V3 ............B-62 PCH 1/9 ..................B-31 Audio Board ..................B-63 PCH 2/9 ..................B-32 Power Switch Board ..............B-64 PCH 3/9 ..................B-33 Hall Sensor Board .................B-65 PCH 4/9 ..................

  • Page 13: Introduction

    Introduction Chapter 1: Introduction Overview This manual covers the information you need to service or upgrade the N870EP6 / N871EP6 series notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about dri-vers (e.g.

  • Page 14: Specifications

    Introduction Specifications Processor Options LCD Options Intel® Core™ i7 Processor 17.3" (43.94cm), 16:9, F HD (1920x1080) i7-8750H (2.20GHz) Storage 9MB Smart Cache, 14nm, DDR4-2666MHz, TDP 45W  Intel® Core™ i5 Processor One Changeable 2.5" 9.5mm/7.0mm (h) SATA3 HDD/SSD Latest Specification Information i5-8300H (2.30GHz) (Factory Option) One M.2 SATA/PCIe Gen3 x4 Solid State Drive (SSD)
  • Page 15 Introduction Interface Communication One USB 2.0 Port Built-In Gigabit Ethernet LAN One USB 3.0 (USB 3.1 Gen 1) Type-A Port 1.0M HD PC Camera Module One USB 3.1 Gen 2 Type-A Port (Factory Option) 2.0M FHD PC Camera Module One USB 3.1 Gen 2 Type-C Port* WLAN/ Bluetooth M.2 Modules: One HDMI-Out Port (Factory Option) Intel®...

  • Page 16: External Locator - Top View With Lcd Panel Open

    Introduction External Locator - Top View with LCD Panel Open Figure 1 Top View 1. PC Camera 2. *PC Camera LED *When the PC camera is in use, the LED will be illuminated. 3. Built-In Array Microphone 4. LCD 5. Power Button 6.

  • Page 17: External Locator - Front & Right Side Views

    Introduction External Locator - Front & Right Side Views Figure 2 Front View 1. LED Indicator FRONT VIEW Figure 3 Right Side View 1. Headphone-Out RIGHT SIDE VIEW Jack 2. Microphone-In Jack 3. USB 2.0 Port 4. USB 3.0 Port 5.

  • Page 18: External Locator - Left Side & Rear View

    Introduction External Locator - Left Side & Rear View Figure 4 Left Side View 1. Security Lock Slot 2. DC-In Jack 3. RJ-45 LAN Jack 4. Mini Display Port LEFT SIDE VIEW 5. HDMI-Out Port 6. USB 3.1 Gen 2 Type C Port 7.

  • Page 19: External Locator - Bottom View

    Introduction External Locator - Bottom View Figure 6 Bottom View 1. Battery 2. Vent 3. Speakers  Overheating To prevent your com- puter from overhea- ting, make sure no- thing blocks any vent while the computer is in use. External Locator - Bottom View 1 - 7...

  • Page 20: Mainboard Overview - Top (Key Parts)

    Introduction Mainboard Overview - Top (Key Parts) Figure 7 Mainboard Top Key Parts 1. KBC-ITE IT8587 1 - 8 Mainboard Overview - Top (Key Parts)

  • Page 21: Mainboard Overview - Bottom (Key Parts)

    Introduction Mainboard Overview - Bottom (Key Parts) Figure 8 Mainboard Bottom Key Parts 1. GPU 2. CPU 3. Memory Slots DDR4 SO-DIMM 4. Mini-Card Connector (WLAN Module) 5. PCH 6. CMOS Battery 7. M.2-Card Connector (SSD Module) Mainboard Overview - Bottom (Key Parts) 1 - 9...

  • Page 22: Mainboard Overview - Top (Connectors)

    Introduction Mainboard Overview - Top (Connectors) Figure 9 Mainboard Top Connectors 1. DC-In Jack 2. RJ-45 LAN Jack 3. Mini Display Port 4. HDMI-Out Port 5. USB Port 3.0/3.1 (Type C) Connector 6. USB Port 3.0/3.1 (Type A) Connector 7. Multi-in-1 Card Reader 8.

  • Page 23: Mainboard Overview - Bottom (Connectors)

    Introduction Mainboard Overview - Bottom (Connectors) Figure 10 Mainboard Bottom Connectors 1. CCD Connector 2. Fan Connector 3. HDD Connector 4. Speaker Connector 5. LCD Connector Mainboard Overview - Bottom (Connectors) 1 - 11...
  • Page 24 Introduction 1 - 12...

  • Page 25: Disassembly

    Disassembly Chapter 2: Disassembly Overview This chapter provides step-by-step instructions for disassembling the N870EP6 / N871EP6 series notebook’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated). We suggest you completely review any procedure before you take the computer apart. Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are repeated here for your convenience.

  • Page 26: Maintenance Tools

    Disassembly NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the battery is removed too). Maintenance Tools The following tools are recommended when working on the notebook PC: • M3 Philips-head screwdriver •...

  • Page 27: Maintenance Precautions

    Disassembly Maintenance Precautions  The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a removal and/or replacement job, take the following precautions: Power Safety Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other components Warning could be damaged.

  • Page 28: Disassembly Steps

    Disassembly Disassembly Steps The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM THE DISASSEMBLY STEPS IN THE ORDER INDICATED. To remove the Battery: To remove the CCD Module: 1. Remove the battery page 2 - 5 1.

  • Page 29: Removing The Battery

    Disassembly Removing the Battery Figure 1 Battery Removal 1. Turn the computer off, and turn it over. 2. Slide the latch in the direction of the arrow (Figure 1a). a. Slide the latch in the 3. Slide the latch in the direction of the arrow. direction of the arrow.

  • Page 30: Removing The Keyboard

    Disassembly Removing the Keyboard Figure 2 Keyboard Removal 1. Turn off the computer, turn it over. 2. Remove screws from the bottom of the computer. a. Remove the screws from 3. Open it up with the LCD on a flat surface before pressing at point to release the keyboard module (use the spe- the bottom of the compu- cial eject stick...

  • Page 31: Removing The Hard Disk Drive

    Disassembly Removing the Hard Disk Drive Figure 3 The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 7mm HDD Assembly (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in Removal Chapter 4 of the User’s Manual) when setting up a new hard disk.
  • Page 32 Disassembly 5. Remove screws from the HDD assembly (Figure 4b). Figure 4 6. Slightly lift and pull the hard disk assembly in the direction of arrow (Figure 4c HDD Assembly 7. Lift the hard disk assembly out of the bay (Figure 4d Removal (cont’d.) 8.

  • Page 33: Removing The System Memory (Ram)

    Disassembly Removing the System Memory (RAM) Figure 5 RAM Module The computer has two memory sockets for 260 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting Removal DDR4 2400 MHz. The main memory can be expanded up to 16GB. The total memory size is automatically detected by the POST routine once you turn on your computer.

  • Page 34: Removing And Installing The M.2 Ssd Module

    Disassembly Removing and Installing the M.2 SSD Module Figure 6 M.2 SSD Module M.2 SSD Module Removal Procedure Removal 1. Turn off the computer, turn it over, remove the battery (page 2 - 2. The M.2 SSD module will be visible at point on the mainboard (Figure 6a).

  • Page 35: Removing The Wireless Lan Module

    Disassembly Removing the Wireless LAN Module Figure 7 Wireless LAN 1. Turn off the computer, turn it over, remove the battery (page 2 - Module Removal 2. The Wireless LAN module will be visible at point on the mainboard (Figure 7a).

  • Page 36: Wireless Lan, Combo Module Cables

    Disassembly Wireless LAN, Combo Module Cables Note that the cables for connecting to the antennae on WLAN, WLAN & Bluetooth Combo modules are not labelled. The cables/covers (each cable will have either a black or transparent cable cover) are color coded for identification as outlined in the table below.

  • Page 37: Removing The Ccd

    Disassembly Removing the CCD Figure 8 CCD Removal 1. Turn off the computer, turn it over to remove the battery (page 2 - 2. Lay the computer down on a flat surface with the top case up forming a 90 degree angle. Carefully remove the a.
  • Page 38 Disassembly 5. Disconnect the cable (Figure 9c). Figure 9 6. Remove the CCD module (Figure 9d). CCD Removal 7. Reverse the process to install a new CCD module. (cont’d) c. Disconnect the cable. d. Remove the CCD mod- ule.  11.

  • Page 39: Part Lists

    Appendix A:Part Lists This appendix breaks down the N870EP6 / N871EP6 series notebook’s construction into a series of illustrations. The component part numbers are indicated in the tables opposite the drawings. Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure to cross-check any relevant documentation.

  • Page 40: Part List Illustration Location

    Part List Illustration Location The following table indicates where to find the appropriate part list illustration. Table A - 1 Part List Illustration Part Location page A - 3 Bottom page A - 4 page A - 5 Main Board page A - 6 page A - 7 A - 2...

  • Page 41: Top

    Figure A - 1 Top A - 3...

  • Page 42: Bottom

    Bottom Figure A - 2 Bottom A - 4 Bottom...

  • Page 43: Main Board

    Main Board Figure A - 3 Main Board Main Board A - 5...

  • Page 44: Hdd

    Figure A - 4 A - 6 HDD...

  • Page 45: Lcd

    Figure A - 5 LCD A - 7...
  • Page 46 A - 8...

  • Page 47: Schematic Diagrams

    Schematic Diagrams Appendix B: Schematic Diagrams This appendix has circuit diagrams of the N870EP6 / N871EP6 notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram. Diagram - Page Diagram - Page Diagram - Page Table B - 1 System Block Diagram - Page B - 2 GPU NVVDD, FBVDDQ - Page B - 25 RGB KB Only - Page B - 48...

  • Page 48: System Block Diagram

    Schematic Diagrams System Block Diagram N850EP6 System Block Diagram (Coffee lake) VDD3,VDD5 SHEET 50 nVIDIA GPU NVVDD, NVVDDS Nvidia 2 VIA:3"~8" N17E-G1 -RAM SIZE 6GB DDR5 Coffee Lake-H SHEET 57,58 PCIE*16 4 VIA:3"~9" CFL-H 62 45W 5V,3.3V,5VS,3.3VS SHEET 10,11,12, SHEET 48 13,14,15,16,17,18,19,20,21,22,23,24,25 PANEL Connector 1 vias <5"...

  • Page 49: Processor 1/6

    Schematic Diagrams Processor 1/6 U29C PEG_TX_0 C725 0.22u_10V_X5R_04 PEG_RX0 PEG_TX#_0 PEG_TX0 10 PEG_RXP_0 PEG_TXP_0 C734 0.22u_10V_X5R_04 PEG_RX#0 PEG_RXN_0 PEG_TXN_0 PEG_TX#0 10 PEG_TX_1 C731 0.22u_10V_X5R_04 6-36-00180-250 PEG_RX1 PEG_TX#_1 PEG_TX1 10 PEG_RXP_1 PEG_TXP_1 C730 0.22u_10V_X5R_04 PEG_RX#1 PEG_RXN_1 PEG_TXN_1 PEG_TX#1 10 CPU HOLD PEG_TX_2 C737 0.22u_10V_X5R_04...
  • Page 50 Schematic Diagrams Processor 2/6 M_A_DQ[63:0] M_B_DQ[63:0] U29A U29B M_A_DQ0 M_B_DQ0 BT11 M_A_DQ1 DDR0_DQ_0/DDR0_DQ_0 DDR0_CKP_0/DDR0_CKP_0 M_A_CLK_DDR0 M_B_DQ1 DDR1_DQ_0/DDR0_DQ_16 DDR1_CKP_0/DDR1_CKP_0 M_B_CLK_DDR0 BR11 M_A_DQ2 DDR0_DQ_1/DDR0_DQ_1 DDR0_CKN_0/DDR0_CKN_0 M_A_CLK_DDR#0 M_B_DQ2 DDR1_DQ_1/DDR0_DQ_17 DDR1_CKN_0/DDR1_CKN_0 M_B_CLK_DDR#0 M_A_DQ3 DDR0_DQ_2/DDR0_DQ_2 DDR0_CKP_1/DDR0_CKP_1 M_A_CLK_DDR1 M_B_DQ3 DDR1_DQ_2/DDR0_DQ_18 DDR1_CKP_1/DDR1_CKP_1 M_B_CLK_DDR1 M_A_DQ4 M_A_CLK_DDR#1 M_B_DQ4 M_B_CLK_DDR#1 DDR0_DQ_3/DDR0_DQ_3 DDR0_CKN_1/DDR0_CKN_1 DDR1_DQ_3/DDR0_DQ_19...

  • Page 51: Processor 3/6

    Schematic Diagrams Processor 3/6 Configuration Signals: The CFG signals have a default value of '1' if not terminated on the board. NEAR CPU Refer to the appropriate platform design guide for 1.05V_VCCST pull-down recommendations when a logic low is desired. CFG[0]: Stall reset sequence after PCU PLL U29E lock until de-asserted:...
  • Page 52 Schematic Diagrams Processor 4/6 VCORE C341 C340 C333 C346 C275 C273 C344 C271 C201 VCORE VCORE 128A 128A U29I VCORE VCORE AA13 AH13 128A U29J 128A VCC1 VCC64 AA31 AH14 VCC2 VCC65 AA32 AH29 VCC3 VCC66 VCC1 VCC64 AA33 AH30 VCC4 VCC67 VCC2...

  • Page 53: Processor 5/6

    Schematic Diagrams Processor 5/6 PLACE CAP BACKSIDE 1.05V_VCCST 1.05V_VCCST C210 C211 VCCSA VDDQ U29L 11.1A 3.3A VCCSA1 VDDQ1 AE12 U29M VCCSA2 VDDQ2 place to angle VCCSA3 VDDQ3 VCCSA4 VDDQ4 RSVD_TP[5] VCCSA5 VDDQ5 IST_TRIG RSVD_TP5 VCCSA6 VDDQ6 RSVD_TP[4] IST_TRIG AJ12 VCCSA7 VDDQ7 RSVD_TP[3] RSVD_TP4...
  • Page 54 Schematic Diagrams Processor 6/6 U29H U29G VCCGT VCCGT VSS_325 VSS_409 U29F BJ15 VSS_163 VSS_244 VSS_326 VSS_410 AY12 BJ18 BP12 VSS_1 VSS_82 VSS_164 VSS_245 VSS_327 VSS_411 AL10 AY33 BJ22 BP14 VSS_2 VSS_83 VSS_165 VSS_246 VSS_328 VSS_412 AL12 AY34 BJ25 BP18 U29K VSS_3 VSS_84 AL14...

  • Page 55: Ddr4 Cha So-Dimm

    Schematic Diagrams DDR4 CHA SO-DIMM Channel A SO-DIMM 0[RAM1] VTT_MEM RVS TYPE VDDQ J_DIMMA_1B H=5.2mm 2.5V Samuel change RVS H=4MM DIMM J_DIMMA_1A M_A_DQ[63:0] VDD19 M_A_DQ1 VDD18 M_A_CLK_DDR0 CK0_T M_A_DQ0 VDD17 M_A_CLK_DDR#0 M_A_DQ3 CK0_C VDD16 VPP2 M_A_CLK_DDR1 CK1_T M_A_DQ2 VDD15 VPP1 M_A_CLK_DDR#1 CK1_C M_A_DQ4...

  • Page 56: Ddr4 Chb So-Dimm

    Schematic Diagrams DDR4 CHB SO-DIMM VTT_MEM STD TYPE J_DIMMB_2B Channel B SO-DIMM 0[RAM2] VDDQ 2.5V H=5.2mm VDD19 VDD18 VDD17 J_DIMMB_2A VDD16 VPP2 PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM M_B_DQ5 M_B_DQ[63:0] VDD15 VPP1 DDR4_DRAMRST# M_B_CLK_DDR0 CK0_T M_B_DQ1 VDD14 3.3VS 8,33 DDR4_DRAMRST#...

  • Page 57: Vga Pci Express

    Schematic Diagrams VGA PCI Express NV3V3 1V8_AON NV PCI EXPRESS R406 R405 23,57 NVVDD_PWRGD 10K_04 *10K_04 2SK3018S3 PEG_CLKREQ# R407 INS27169410 *10K_04 BGA2152 COMMON 1/23 PCI_EXPRESS under GPU PLACE btw GPU & VR PEX_VDD BB33 PEX_DVDD BK26 BB35 PEX_RST PEX_DVDD 22,23 GPU_PEX_RST# BB36 C103...

  • Page 58: Gpu Frame Buffer Partition

    Schematic Diagrams GPU Frame Buffer Partition PAGE3: GPU FRAME BUFFER PARTITION A/B INS27170978 BGA2152 INS27171632 COMMON BGA2152 COMMON 3/23 FBB 2/23 FBA FBB_D0 FBB_CMD0 FBA_DBI[7..0] FBB_DBI[7..0] FBA_D0 FBA_CMD0 FBB_D1 FBB_D0 FBB_CMD0 FBB_CMD1 FBA_D1 FBA_D0 FBA_CMD0 FBA_CMD1 FBA_DBI[7..0] FBB_DBI[7..0] FBB_D2 FBB_D1 FBB_CMD1 FBB_CMD2 FBA_D2...

  • Page 59: Frame Buffer Partition A

    Schematic Diagrams Frame Buffer Partition A FBA_WCK01 FBA_CMD[31..0] FBA_WCK01 FBA_WCK01# FBA_CMD[31..0] FBA_WCK23 FRAME BUFFER PARTITION A FBA_WCK01# FBA_D[63..0] FBA_WCK23 FBA_WCK23# FBA_D[63..0] FBA_WCK23# FBA_WCK45 FBA_DBI[7..0] FBA_WCK45# FBA_WCK45 FBA_DBI[7..0] FBA_WCK45# FBA_WCK67 FBA_EDC[7..0] FBA_WCK67 FBA_WCK67# FBA_EDC[7..0] FBA_WCK67# INS27174520 BGA170 COMMON NORMAL FBA_D32 INS27173867 INS27173992 BGA170_MIRR FBA_D33...

  • Page 60: Frame Buffer Partition B

    Schematic Diagrams Frame Buffer Partition B FBB_WCK01 FBB_CMD[31..0] FBB_WCK01 FBB_WCK01# FBB_CMD[31..0] FRAME BUFFER PARTITION B FBB_WCK01# FBB_WCK23 FBB_D[63..0] FBB_WCK23# FBB_WCK23 FBB_D[63..0] FBB_WCK23# FBB_WCK45 FBB_DBI[7..0] FBB_WCK45 FBB_WCK45# FBB_DBI[7..0] FBB_WCK45# FBB_WCK67 FBB_EDC[7..0] FBB_WCK67 FBB_WCK67# FBB_EDC[7..0] FBB_WCK67# INS27175604 BGA170 INS27175707 INS27175830 COMMON BGA170_MIRR BGA170 INS27175933 COMMON...

  • Page 61: Frame Buffer Partition A_B

    Schematic Diagrams Frame Buffer Partition A_B FRAME BUFFER PARTITION A/B DECOUPLING P6xx RA Fr a m e A , B FBVDDQ FBVDDQ DECOUPLING AROUND FBA MEMORIES (DQ0-DQ31) DECOUPLING AROUND FBA MEMORIES (DQ32-DQ63) PLACE Under MEM PLACE Under MEM SPARE SPARE C107 C106 C396...

  • Page 62: Gpu Frame Buffer

    Schematic Diagrams GPU Frame Buffer GPU FRAME BUFFER PARTITION C/D FBC_DBI[7..0] FBC_DBI[7..0] FBC_EDC[7..0] FBC_EDC[7..0] P6xx RE F r a m e INS27181293 FBC_CMD[31..0] INS27181927 BGA2152 FBC_CMD[31..0] BGA2152 COMMON COMMON FBC_D[63..0] 4/23 FBC 5/23 FBD FBC_D[63..0] FBC_D0 FBC_CMD0 FBC_D0 FBC_CMD0 FBVDDQ FBD_D0 FBD_CMD0 FBC_D1...

  • Page 63: Frame Buffer Partition C

    Schematic Diagrams Frame Buffer Partition C FBC_CMD[31..0] FRAME BUFFER PARTITION C FBC_CMD[31..0] FBC_WCK01 FBC_D[63..0] FBC_WCK01 FBC_WCK01# FBC_WCK23 FBC_D[63..0] FBC_WCK01# FBC_WCK23 FBC_WCK23# FBC_DBI[7..0] FBC_DBI[7..0] FBC_WCK23# FBC_WCK45 FBC_EDC[7..0] FBC_WCK45 FBC_WCK45# FBC_EDC[7..0] FBC_WCK45# FBC_WCK67 M10D FBC_WCK67 FBC_WCK67# M10B INS27183681 FBC_WCK67# BGA170 INS27183454 COMMON BGA170 COMMON NORMAL...

  • Page 64: Frame Buffer Partition C_D

    Schematic Diagrams Frame Buffer Partition C_D FRAME BUFFER PARTITION C/D DECOUPLING FBVDDQ PLACE Under MEM DECOUPLING AROUND FBC MEMORIES (DQ0-DQ31) SPARE C530 C498 C508 C511 C499 C512 C534 C514 C507 C505 FBVDDQ C541 C542 C509 C544 C533 C513 1u x 10 Sheet 17 of 69 10u x 6 22u x 5...

  • Page 65: [18] Gpu Decoupling1

    Schematic Diagrams GPU Decoupling 1 GPU DECOUPLING1 MID-FREQ CERAMICS NVVDD NVVDD NVVDD NVVDD x4 22uF X5R 0805 CLOSE TO GPU CLOSE TO GPU x2 47uF X5R 0805 x11 10uF X5R 0603 NVVDD C696 C699 C228 C235 C363 C364 C298 C160 C155 C157 C293...

  • Page 66: [19] Gpu Decoupling2

    Schematic Diagrams GPU Decoupling 2 GPU DECOUPLING FBVDDQ PLACE Under GPU FBVDDQ 1V8_RUN Partition A x2 10uF, x6 1uF 1V8_AON C167 C166 C430 C382 C383 C428 C367 C359 C371 C358 C788 C769 C768 C132 C134 C217 C135 C136 C215 C216 C278 C279 C277...

  • Page 67: Straps And Xtal

    Schematic Diagrams STRAPS and XTAL XTAL INS27190481 BGA2152 COMMON 30ohm ESR 10mohm bead GPU_PLLVDD 14/23 XTAL/PLL 40mil GPU_PLLVDD HCB1608KF-300T60 BD12 SP_PLLVDD 1V8_RUN 0_06 20mil Near to GPU BC12 VID_PLLVDD 22u_6.3V_X6S_08 *4.7u_6.3V_X6S_06 C285 0.1u_16V_X7R_04 0.1u_16V_X7R_04 Strap 2 Strap 1 Strap 0 RAMCFG[4:0] GPU under 40mil...

  • Page 68: Ifp I/O Interface

    Schematic Diagrams IFP I/O Interface INS27191357 INS27191529 BGA2152 BGA2152 IFP I/O INTERFACE COMMON COMMON 11/23 MIOA 12/23 MIOB MIOAD0 MIOBD0 INS27191953 MIOAD1 MIOBD1 BGA2152 COMMON MIOAD2 MIOBD2 MIOAD3 MIOBD3 MIOAD4 MIOBD4 7/23 IFPAB MIOAD5 MIOBD5 MIOAD6 MIOBD6 DL-DVI DVI/HDMI MIOAD7 MIOBD7 MIOAD8 MIOBD8...

  • Page 69: Misc - Gpio_I2C_Rom

    Schematic Diagrams Misc - GPIO_I2C_ROM MISC: GPIO, I2C, and ROM INS27193986 BGA2152 COMMON VBIOS ROM 1M 15/23 MISC 2 1V8_AON VGA_ROM_CS# (OPTIMUS) ROM_CS VGA_ROM_SI 1V8_AON ROM_SI VGA_ROM_SO VGA_ROM_SI INS28107254 ROM_SO VGA_ROM_SCLK VGA_ROM_SO R429 Zdiff=50Ω STRAP0 STRAP0 ROM_SCLK VGA_ROM_SCLK 1V8_AON COMMON STRAP1 STRAP1 10K_04...

  • Page 70: Nvidia Power Sequence

    Schematic Diagrams NVIDIA Power Sequence DEFAULT HW POWER SEQUENCE 3.3V FBVDDQ_EN NV_FBVDDQ_EN 23,33 NV_EN_DOWN NV_PEXVDD_EN VIN_DOWN PEX_VDD_EN OVERT# OVERT# NVVDDS_EN NV_NVVDDS_EN 1V8_AON_PWRGD SUSB# NVVDD_EN NV_NVVDD_EN NVVDDS_PWRGD NVVDDS_PWRGD 3V3_SYS_EN NV_NV3V3_EN GPIO1_GC6_FB_EN_R NV_1V8RUN_EN GC6_FB_EN 1V8_MAIN_EN 34,46 GC6_FB_EN_PCH GC6_FB_EN_PCH 1V8_AON_EN NV_1V8AON_EN 30,31,44 PLT_RST# PLT_RST# GPIO4_1V8_MAIN_EN GPIO4_1V8_MAIN_EN...

  • Page 71: Gpu Nvvdd, Fbvddq

    Schematic Diagrams GPU NVVDD, FBVDDQ GPU NVVDD, FBVDDQ INS27199655 INS27199049 INS27198561 BGA2152 BGA2152 FBVDDQ BGA2152 FBVDDQ COMMON COMMON COMMON NVVDD NVVDD NVVDD NVVDD 18/21 VDD_1/2 19/23 VDD_2/2 20/23 FBVDDQ AA14 AG22 AP21 BB45 AA10 AT43 FBVDDQ FBVDDQ AA15 AG23 AP22 BB46 AA11 FBVDDQ...

  • Page 72: Gpu Gnd

    Schematic Diagrams GPU GND GPU GND INS27203725 INS27205557 INS27204695 BGA2152 BGA2152 BGA2152 COMMON COMMON COMMON 16/23 GND_1/3 17/23 GND_2/3 22/23 GND_3/3 AR20 BL43 AR21 AJ14 AR22 BA48 AJ15 AR23 BB49 AJ16 AR24 BC13 AJ17 AR25 BC16 AJ18 AR26 BC19 AA49 AJ19 AR27 AR28...

  • Page 73: Mdp (Igpu

    Schematic Diagrams mDP (iGPU) 3.3VS MDP_I_PWR MDP_I_PWR SHIELD6 GND4 COMMON SHIELD5 GND3 I_MDP_D3 I_MDP_D3J I_MDP_D#3 I_MDP_D#3J VOUT I_MDP_D2 I_MDP_D2J I_MDP_D#2 I_MDP_D#2J *10u_6.3V_X5R_06 10u_6.3V_X5R_06 I_MDP_AUX#_R AUX_CHN uP7549UMA5-20 I_MDP_D#2J I_MDP_AUX_R LANE_2N AUX_CHP TVUDF1004AD0 I_MDP_D2J LANE_2P 27,29,43,48 SUSB 3.3VS I_MDP_D#3J I_MDP_D0 I_MDP_D0J LANE_3N I_MDP_D3J I_MDP_D#1J I_MDP_D#0...

  • Page 74: Mdp (Dgpu

    Schematic Diagrams mDP (dGPU) PLEASE CLOSE TO CONNECTOR DP ESD W/O LEVELSHIFT , NE T SW A P mini-Display Port E (LEFT) Close to Display PORT AUX interception disable for Port y (y = 1, 2). Internal pull down at ~150K , 3.3V I/O; D_MDP_E2 D_MDP_E2J L: AUX interception enable, driver configuration is set by link training (default)

  • Page 75: [28] Panel,Inverter

    Schematic Diagrams Panel, Inverter PANEL POWER PANEL CONNECTOR SHORT PJ10 VLED OPEN_2A LED PANEL (EDP Channel). PLVDD J_LCD1 *MTS3572G6 C808 C442 C443 D02A C317 *1u_6.3V_X5R_04 3.3V R510 C741 0.1u_16V_X7R_04 *0.22u_50V_Y5V_06 EDP_TXN_0 C742 0.1u_16V_X7R_04 *4.7K_06 EDP_TXP_0 R536 C743 0.1u_16V_X7R_04 GND5 *150K_04 EDP_TXN_1 GND5 GND4...

  • Page 76: Hdmi

    Schematic Diagrams HDMI HDMI_5VS HDMI CONNECTOR HDMI ESD W/O LEVELSHIFT , NE T SW A P R522 TMDS_DATA0# TMDS_DATA0#J *0_04 RB551V-30S2 TMDS_DATA0 TMDS_DATA0J *RB551V-30S2 For ESD TMDS_CLOCK TMDS_CLOCKJ *0.5_1%_04 TMDS_CLOCK# TMDS_CLOCK#J *0.5_1%_04 *TVU1240R1A HDMI_5VS R520 R521 J_HDMI1 VOUT 2K_04 2K_04 TMDS_DATA2# TMDS_DATA2#J TMDS_DATA2...

  • Page 77: Pch 1/9

    Schematic Diagrams PCH 1/9 BOOT HALT JTAG ODT ENABLED IF LOW DISABLE:LOW PCH HAS (INTERNAL WEAK PU) INTERNAL WEAK U31A SPI_SI_R SPI_SO_R LAN_WUP# BE36 AV29 R631 *0_04 33,40,42,46 LAN_WAKEUP# PLT_RST# 23,31,44 GPP_A11/PME#/SD_VDD2_PWR_EN# GPP_B13/PLTRST# RSVD2 T101 R610 R605 GPP_K16/GSXCLK RSVD1 T103 GPP_K12/GSXDOUT *4.7K_04 *4.7K_04...

  • Page 78: Pch 3/9

    Schematic Diagrams PCH 2/9 U31B USB_PN1 DMI_MT_IR_0_DN DMI0_RXN USB2N_1 1- USB3 Port 1 Charger DMI_MT_IR_0_DP USB_PP1 DMI0_RXP USB2P_1 DMI_IT_MR_0_DN DMI0_TXN USB2N_2 DMI_IT_MR_0_DP DMI0_TXP USB2P_2 USB_PN3 DMI_MT_IR_1_DN DMI1_RXN USB2N_3 3- Type-C DMI_MT_IR_1_DP USB_PP3 DMI1_RXP USB2P_3 DMI_IT_MR_1_DN DMI1_TXN USB2N_4 DMI_IT_MR_1_DP DMI1_TXP USB2P_4 5- Audio USB3.0 Con.

  • Page 79: Pch 6/9

    Schematic Diagrams PCH 3/9 BIOS RECOVERY PCH_RSVD MFG_MODE ENABLE :LOW 3.3VS 3.3VS 3.3VS SATAGP0 3.3VS SATAGP3 10K_8P4R_04 SATAGP2 R202 R587 R588 SCI#_R R557 10K_04 100K_04 10K_04 *10K_04 SATA_LED# R569 10K_04 BIOS_REC PCH_RSVD MFG_MODE SWI#_R R533 10K_04 3.3VA U31C T113 CL_CLK PCIE9_RXN PCIE_RXN9_SSD T112...

  • Page 80: Pch 8/9

    Schematic Diagrams PCH 4/9 R534 300_1%_04 R535 45.3K_1%_04 SUS_PWR_ACK#_R VDD3 *20mil short-p SUSWARN# R238 W/O GCLK W/O GCLK Non DSX U31D ISH_GP_6_R BD11 BF36 RTC3.2V HDA_BITCLK HDA_BCLK/I2S0_SCLK GPP_A12/BM_BUSY#/ISH_GP6/SX_EXIT_HOLDOFF# PM_CLKRUN# BE11 AV32 HDA_SDIN0 HDA_SDOUT HDA_SDI0/I2S0_RXD GPP_A8/CLKRUN# BF12 6-06-00054-06F 33,45 HDA_SDOUT HDA_SDO/I2S0_TXD LAN_DISABLE_N BG13 BF41...
  • Page 81 Schematic Diagrams PCH 5/9 3.3VS R168 R183 *100K_04 *100K_04 U31E I_MDP_CLK AL13 GPP_I5/DDPB_CTRLCLK I_MDP_DATA I_MDP_CLK MDP OUT (B) (iGPU) I_MDP_HPD I_MDP_DATA GPP_I0/DDPB_HPD0/DISP_MISC0 GPP_I6/DDPB_CTRLDATA HDMI OUT(C) AN10 AN13 GPP_I1/DDPC_HPD1/DISP_MISC1 GPP_I7/DDPC_CTRLCLK 22,29 HDMI_HPD R185 *1K_04 AL10 GPP_I2/DDPD_HPD2/DISP_MISC2 GPP_I8/DDPC_CTRLDATA AL15 MDP OUT(D,F) (dGPU) R169 1K_04 22,27...
  • Page 82 Schematic Diagrams PCH 6/9 GCLK Co-Lay XTAL24_OUT_GCLK 0_04 R552 PCI-E CLK Usage C835 15p_50V_NPO_04 0_04 R555 W/O GCLK ASM x142 USB 3.1 GLAN 6-07-18034-1A0 R563 WLAN FSX3M_24MHZ PEG(NV) 1M_1%_04 SSD (X 4 LANE) SPEC: 20PPM Co-Lay R566 0_04 C840 15p_50V_NPO_04 W/O GCLK XTAL24_IN_GCLK 0_04...
  • Page 83 Schematic Diagrams PCH 7/9 SHORT PJ16 U31H 5.95A AA22 0.182A R250 *20mil_04 VDD1.05 3.3VA VCCPRIM_1P051 VCCPRIM_3P32 AA23 VCCPRIM_1P052 VCC_RTCEXT_CAP *5mm C502 AB20 BF47 VCCPRIM_1P053 DCPRTC1 AB22 BG47 VCCPRIM_1P054 DCPRTC2 AB23 1u_6.3V_X5R_04 C539 VCCPRIM_1P055 AB27 0.095A R139 *20mil_04 3.3VA *0.1u_10V_X7R_04 VCCPRIM_1P056 VCCPRIM_3P35 AB28 VCCPRIM_1P057...
  • Page 84 Schematic Diagrams PCH 8/9 U31I AL12 U31L VSS_1 VSS_73 AL17 VSS_2 VSS_74 AL21 VSS_145 VSS_196 BG33 M-MARK M-MARK M-MARK M-MARK VSS_3 VSS_75 AL24 VSS_146 VSS_197 VSS_4 VSS_76 BG37 AL26 VSS_147 VSS_198 VSS_5 VSS_77 AL29 VSS_148 VSS_199 BG48 VSS_6 VSS_78 AL33 VSS_149 VSS_200 VSS_7...
  • Page 85 Schematic Diagrams PCH 9/9 NO REBOOThis signal has an integrated weak BOOT STARP pull-down resistor (20 KΩ nominal) to This signal has an integrated weak disable the no reboot strap functionality pull-down resistor (20 KΩ nominal) by default. to default boot from SPI. To enable no reboot on TCO Timer To enable boot to LPC, this signal expiration, this signal should be...

  • Page 86: M.2 3G Card

    Schematic Diagrams M.2 3G Card 3G_EN 3G CARD GPS_DISABLE# 6-34-P750S-010 3G_PWR_EN CURRENT2A ,DON'T DROP BELOW 3.135V 3G_3.3V 3G_3.3V 80 mils H6_5D3_7 J_3G1 C946 220u_6.3V_6.3*6.3*4.2 C943 0.1u_16V_Y5V_04 CONFIG_2 3.3V4 GND10 3.3V3 C942 *0.1u_16V_Y5V_04 GND9 3.3V2 DETECT_SW CONFIG_1 SUSCLK(32Khz)(O) Reset#(O)1.8V SIM Detect(O) ANTCTL3(I)1.8V COEX1(I/O)1.8V C934...

  • Page 87: Wlan+Bt, Ssd

    Schematic Diagrams M.2 WLAN+BT, SSD J_WLAN1 WLAN+BT 40 mil WLAN_3.3V GND13 3.3V3 CNVI_WT_CLKP WT_CLKP 3.3V2 C558 C586 C557 CNVI_WT_CLKN WT_CLKN PEWAKE1_N GND12 CLKREQ1_N 22u_6.3V_X5R_06 22u_6.3V_X5R_06 *0.1u_16V_Y5V_04 CNVI_WT_D0P WT_D0P PERST1_N CNVI_WT_D0N WT_D0N REFCLK0 CLKIN_XTAL_LCP VDD3 GND11 IRQ_N(I) R272 10K_04 CNVI_WT_D1P WT_D1P I2C CLK(O) WLAN_3.3V R271...

  • Page 88: Usb Conn, Usb Charger

    Schematic Diagrams USB Conn, USB Charger USB3.1 PORT(PORT3,4) 6-02-75495-9C0 USB3.1 PORT(PORT1) VDD5 USBVCC_CH 80 mil 80 mil VOUT C864 10u_6.3V_X5R_06 C547 C549 R731 200K_04 USBVCC3.1_1 R644 100K_04 *0.1u_16V_Y5V_04 WNSB3831Q_CC R265 *0_04 CHARGER Default Low 0.1u_16V_Y5V_04 28,29,31,33,46,48,49,51,54 SUSB# CHARGER USB_DD_ON# uP7549UMA5-20 USBVCC3.1_1 R281 0_04...

  • Page 89: [42] Card Reader/ Lan Rtl8411B

    Schematic Diagrams Card Reader / LAN RTL8411B LAN (RTL8411B) 6 IN 1 SOCKET - MMC / RSMMC Crystal HSX32 1 S(3. 2X 2. 5X 0. 6 5) meet realtek Freq tolerance 50ppm - SD / mini SD / SDHC / SDXC Co-Lay J_CARD-REV1 RSET...

  • Page 90: Hdd, Click Tp, Audio, Hall Con

    Schematic Diagrams HDD, Click TP, Audio, Hall Con. FOR SUPPORT OPTANE project, SATA HDD POWER GATEING HDD CONNECT1 (MASTER) SHORT SATA_5VS PJ54 OPEN_3mm SATA_5VS 6-20-43790-122 2.5A 2.5A J_HDD1 Gen3 VOUT C872 C882 C871 C880 JHDD_SATA_TXP4 C931 0.01u_50V_X7R_04 JHDD_SATA_TXN4 SATA_TXP4 VOUT C930 0.01u_50V_X7R_04 SATA_TXN4...

  • Page 91: [44]Led,Ccd,Tpm,Power Sw Con

    Schematic Diagrams LED, CCD, TPM, Power SW Con. NGFF B & M KEY TPM 2.0 (SLB9665TT) PCI E S S D L E D S A T A WLAN LED L E D WLAN ON PIN24 S S D L E D B I O S Windows 7 WLAN OFF...

  • Page 92: Audio Codec Alc269 Vc2

    Schematic Diagrams Audio Codec ALC269 VC2 PCB Footprint ALC26 9 VC2-QFN48-6 X 6M AUDIO CODEC ALC269 VC2 EMI Require Layout note: PVDD1_2 HCB1005KF-121T20 GND and AUDG space is 60mils ~ 100mils DVDD_IO For 3.3V HDA Link. R679 *20mil short-p C662 C649 R342 *20mil short-p...

  • Page 93: Kbc-Ite It8587

    Schematic Diagrams KBC-ITE IT8587 VDD3 KBC_AVDD HCB1005KF-121T20 KB-DET R316 100K_04 VDD3 SMC_BAT VDD3 R339 1.5K_04 VDD3 SMD_BAT C668 C675 C659 C637 R338 1.5K_04 BAT_DET C638 VBATT_BOOST# R325 10K_1%_04 10u_6.3V_X5R_06 *0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 0.1u_16V_Y5V_04 R323 10K_04 R375 0.1u_16V_X7R_04 N850 N870 100K_04 C672 46,56 SMD_BAT Used for 15"...

  • Page 94: Rgb Kb Only

    Schematic Diagrams RGB KB Only RGB KB Only N 8 5 PCB Footprint = 87151-1207G_R-1 P/N = 6-20-94A20-112 3 layou t t r a ce 87151-1207G KB_5VS KB_VDD KBZONE1_R C552 KBZONE1_B KBZONE1_G R597 *0_06 KB_5VS KBZONE1_R 4.7u_25V_X5R_08 KBZONE1_B OUT0 R596 0_06 OUT1 KBZONE1_G...

  • Page 95: [48] 5V,5Vs,3.3V,3.3Vs

    Schematic Diagrams 5V, 5VS, 3.3V, 3.3VS VDD3 DD_ON# VDD3 SUSB PR175 PR390 C708 VIN1 10K_04 100K_04 DD_ON# SUSB DD_ON# 41,51 SUSB 26,27,29,43 C670 C664 C665 PQ10 PQ43 PC290 0.1u_50V_Y5V_06 0.1u_50V_Y5V_06 0.1u_50V_Y5V_06 2SK3018S3 PC99 2SK3018S3 41,46,50 DD_ON 28,29,31,33,41,46,49,51,54 SUSB# *0.1u_16V_Y5V_04 *0.1u_16V_Y5V_04 PR171 PR388 Clost to P2808B0...

  • Page 96: Vdd1.05V, Vccio

    Schematic Diagrams VDD1.05V, VCCIO For CV test VDD1.05 VDD1_EN TON_P1U1 R382 100K_04 PR406 820K_1%_06 VDD3 PJ61 *CV-40mil PC313 PC312 1.8VA_PGD PJ62 *1mm PU20 PC311 R703 *0_04 DD_ON_EN PR177 PC100 VREG5 0_06 PQ48 40,46,49,54 SLP_SUS# PJ60 OPEN_40mil MDV1525URH EN_PSV SHORT VTT_SELECT VTT VR Output Voltages DH_PU1 PR405...

  • Page 97: [50] Vdd3,Vdd5

    Schematic Diagrams VDD3, VDD5 PR173 PR172 78.7K_1%_04 78.7K_1%_04 EN_5V PC102 1000p_50V_X7R_04 2.5A PU19 2.5A VREG3 PC106 PC308 PC309 PC307 PC301 PC107 PC305 PC108 VDD3 PC294 1u_6.3V_X5R_04 VREG3 PGOOD PQ45 PQ46 MDV1525URH PC293 PC300 MDV1525URH VDD5 PR398 0_06 PR400 0_06 VBST2 VBST1 0.1u_16V_X7R_04 0.1u_16V_X7R_04...

  • Page 98: Ddr 1.2V / 0.6Vs, 2.5V

    Schematic Diagrams DDR 1.2V / 0.6VS, 2.5V DDR4 PQ42 1.2V/0.6VS MDU1516 PU18 ULTRASO-8 PC284 PC94 RB0540S2 G5616BRZ1U VDDQ_R PC95 VTT_MEM(0.6V) 1.2V PC285 PC280 SHORT VLDOIN VBST EMR2 10u_6.3V_X5R_06 0.1u_25V_X7R_06 VDDQ_R SHORT VTT_MEM DRVH PL17 0_06 PJ56 OPEN_2mm BCIHP0730-1R0M PJ55 PC289 VTTGND VDDQ PR384...

  • Page 99: Vcore Output Stage

    Schematic Diagrams VCore Output Stage VCORE OUTPUT STAGE EMI solution(close to MOS) PC40 PC148 PC213 PC159 PC214 PC38 PC122 0.22u_16V_X7R_06 VCORE PR10 PR205 PR225 PU10 1_06 2.2_06 2.2_06 NCP81151MNTBG PC202 PC211 PC74 PC73 PC71 PC70 PC72 PR62 *10K_1%_06 PCMB104T-R15MS VCORE PWM1_4PH/ICCMAX_4PH 128A PQ25...

  • Page 100: Vcc_Core & Vccgt & Vccsa

    Schematic Diagrams VCC_Core & VCCGT & VCCSA Intel SKYLAKE IMVP8 POWER CKT - 2+1 PHASE VCORE PC46 Place close to CPU Place close to CPU 1000p_50V_X7R_04 100_04 PR290 PR293 100_04 SHORT SHORT 1.05V_VCCST PR89 PR84 PJ41 *1mm 0_04 499_1%_04 PJ40 *1mm VSP_4PH VSN_1PH...

  • Page 101: Dx_Vccstg/Vccsfr_Oc

    Schematic Diagrams 1.05DX_VCCSTG/VCCSFR_OC NOTE: 1.05DX_VCCSTG Ton need <65us M5938 TURON-ON TIME=60us SHORT 1.05DX_VCCSTG 1.05DX_VCCSTG VDD1.05 VOUT1_U140 VOUT C961 C962 C413 VDD3 VDD3 *100_04 *0.1u_10V_X7R_04 PC329 VCCSFR_OC Combine with U162 R117 TC7SZ08FU 3.3VA(U16) R743 20K_1%_04 *100K_04 38,49 GPP_J1 VCCSTG_EN VBIAS *2SK3018S3 C496 VCCSTG_EN R749...

  • Page 102: Vccgt & Vccsa Output Stage

    Schematic Diagrams VCCGT & VCCSA Output Stage VCCGT & VCCSA OUTPUT STAGE PC233 PC232 PC226 0.22u_16V_X7R_06 PR324 PR323 PU15 2.2_06 2.2_06 NCP81151MNTBG PR308 VCCGT 7,53,55 1_06 PL11 PR119 CMME063T-R15MS0R907 10K_06 PWM1_2PH/ICCMAX_2PH VCCGT DCR=0.90mR PR301 52,53,55 DRON 0_06 PR118 Sheet 55 of 69 PR307 PR300 0V~1.5V...

  • Page 103: Ac_In, Charger

    Schematic Diagrams AC_In, Charger SMART CHARGER PD12 PD10 Samuel ADD PC362, PC422 12/20 MDL914S2 MDL914S2 Gary_EMI TEST J_DC_JACK1 EML1 HCB2012KF-800T80 JDC_AC EML2 HCB2012KF-800T80 PC124 PC125 PC123 VDD3 2DC3003-002211 PR48 180K_1%_04 PR46 ILIM PQ28 PQ27 6-20-B3810-003 P/N = QM3116M6 QM3116M6 PRS5 45.3K_1%_04 PCB Footprint = TDC-099DHSR2-L-005-J-1 WMCSL0612R005FETA...

  • Page 104: Nvvdd

    Schematic Diagrams NVVDD NVVDD PHASE 1 ~ 2 1V8_AON NVVDD FOR N17_VGA *CV-40mil PR178 PR29 4.7K_04 1V8_AON *0_04 NVVDD_EN PR179 0_04 PR58 0_04 GPIO0_NVVDD_PWM_VID NV_NVVDD_EN 23,57 Default PR57 PC34 1V8_AON PR180 PC181 100K_04 PC133 PC314 *0.1u_10V_X7R_04 *10K_04 PR211 NV_VDD_L PWR_SRC_NV *10K_04 PR213 *1K_04...

  • Page 105: Nvvdds

    Schematic Diagrams NVVDDS NVVDDS PHASE 1 and 2 NVVDDS FOR N17_VGA 1V8_AON PJ52 *CV-40mil PR360 PR359 4.7K_04 1V8_AON *0_04 NVVDDS_EN PR361 0_04 PR358 0_04 GPIO3_PS_NVVDDS_VID NV_NVVDDS_EN 23,58 Default PC88 PR363 *0.1u_10V_X7R_04 *10K_04 PWR_SRC_NVVDDS PR366 *1K_04 1V8_AON NVVDDS&NVVDD combine( UP1666_VREF PU15_PSI PR368 *0_04 GPIO6_NVVDD_PSI#...

  • Page 106: [59] Pex_Vdd

    Schematic Diagrams PEX_VDD Open VREG Type 0 PEX_VDD 2.6Amps @ 1.0V PC160 PC161 PR248 PR101 22u_6.3V_X5R_06 10_06 PU12 0.1u_16V_X7R_04 10K_1%_04 RT8071CGQW DFN10 PR278 10K_04 0.200 COMMON PR100 *160K_04 PEX_VDD 3.3V PGOOD 1.1V PEXVDD_EN OpenV R e g PR111 10K_04 PC59 *0.01u_16V_X7R_04 2.4A 3.3V...

  • Page 107: Fbvddq

    Schematic Diagrams FBVDDQ FBVDDQ PHASE 1 and 2 PAGE22: FBVDDQ, and MXM Mounting Holes PJ13 FBVDDQ FOR N17_VGA *CV-40mil PR150 4.7K_04 1V8_AON FBVDDQ_EN NV_FBVDDQ_EN PR149 0_04 NV_FBVDDQ_EN Default PC261 *0.1u_10V_X7R_04 PR142 1K_04 PWR_SRC_NV_FB 1V8_AON FBVDDQ_VREF 2.5A PR346 PR143 15K_1%_04 *0_04 PC259 1u_6.3V_X5R_04 PR345...

  • Page 108: 1V8_Run 1V8_Aon, Nv3V3

    Schematic Diagrams 1V8_RUN 1V8_AON, NV3V3 1.8VA 1.8VA C352 C424 C425 G5016 10u_6.3V_X5R_06 10u_6.3V_X5R_06 *10u_6.3V_X5R_06 1V8_AON 1V8_RUN 1V8_AON 1V8_RUN OUT1 OUT2 OUT1 OUT2 PR120 C351 10K_04 VDD3 0.1u_16V_X7R_04 1V8_RUN 1V8_AON_PWRGD C353 C354 *100p_50V_NPO_04 100p_50V_NPO_04 R506 R497 VDD3 1V8_AON 100K_04 10_06 1V8_AON_ON 1V8_RUN_ON R102 0_04...

  • Page 109: Audio Board

    Schematic Diagrams Audio Board *0_04 *0_04 6-71-N85E8-D01 USB PORT(PORT9) USB2.0 CON *0_04 *0_04 *22u_6.3V_X5R_08 AGND A_5V *0_04 *0_04 60 mil A_USBVCC2 0.1u_10V_X7R_04 A_USBVCC2 AGND 60 mil 60 mil AUDIO BOARD Connector VOUT 22u_6.3V_X5R_08 AGND CLOSE TO CONNECTOR 10u_6.3V_X5R_06 AJ_USB1 AGND SY6288D20AAC GND2 GND2...

  • Page 110: Power Switch Board

    Schematic Diagrams Power Switch Board *0_04 *0_04 6-71-N85ES-D01 *0_04 *0_04 POWER SW BOARD *0_04 *0_04 Sheet 63 of 69 Power Switch Board BH_3.3VS BH_3.3VS POWER POWER POWER BUTTON BUTTON BOTTOM 6-53-31500-B41 390_06 390_06 For N850 BSW1 T4BJB10BQR 6-13-82001-2AB 6-13-82001-2AB BJ_SW1 BPWRBTN# N850 N870...

  • Page 111: [64]Hall Sensor Board

    Schematic Diagrams Hall Sensor Board HALL Sensor Board 6-71-N85E1-D01 *0_04 *0_04 *0_04 *0_04 *0_04 *0_04 Sheet 64 of 69 H_VDD3 6-02-09249-LC0 OLD Value MH248-ALFA-ESO 6-02-00248-LC2 Hall Sensor Board *100K_04 HJ_HALL1 H_VDD3 H_LIDSW# H_LID_SW# H_GND H_LID_SW# *10mil_short AH9249NTR-G1 FP226H-004S10M *100p_50V_NPO_04 *V15AVLC0402 H_GND H_GND H_GND...

  • Page 112: Click Board

    Schematic Diagrams Click Board *0_04 *0_04 6-71-N85E2-D01 *0_04 *0_04 *0_04 *0_04 CTP_VCC Sheet 65 of 69 C_TP_CLK C_CTPBUTTON_L C_TP_DATA Click Board C_CTPBUTTON_R C_SMB_CLK C_SMB_DATA CJ_TP3 FP225H-008S11M 6-20-94K30-108 C_GND N870 CTP_VCC 0.1u_10V_X7R_04 *10u_6.3V_X5R_06 CJ_TP2 N870 CJ_TP1 C_GND C_GND C_CTPBUTTON_L C_TP_DATA C_CTPBUTTON_R C_TP_CLK C_SMB_DATA C_SMB_CLK...

  • Page 113: Led Board

    Schematic Diagrams LED Board *0_04 *0_04 6-71-N87P4-D61 *0_04 *0_04 *0_04 *0_04 6-52-55001-021 GREEN YELLOW HDD LED WLAN LED L_LED_HDD# 220_04 L_3.3VS RY-SP190YG34-5M WLAN ON GREEN YELLOW Windows 7 L_AIRPLAN_LED# Airplane mode 220_04 WLAN OFF L_3.3VS RY-SP190YG34-5M Airplane ON 6-52-55001-021 Windows 8 Airplane OFF WLAN/BLUETOOTH Sheet 66 of 69...

  • Page 114: Pw Board

    Schematic Diagrams PW Board POWER 1B2R *0_04 4B2R *0_04 6-71-N875S-D01 BOTTOM 2B2R *0_04 5B2R *0_04 6-53-31500-B41 3B2R *0_04 6B2R *0_04 B2SW1 For N875HP6 T4BJB10BQR B2J_SW1 B2PWRBTN# B2H_3.3VS N875HP6 PCBfootprint: B2DGND B2PWRBTN# TJE-53X-Q BSW1 FP226H-004S10M B2DGND N875HP6 POWER B2H_3.3VS B2H_3.3VS B2H_3.3VS B2H_3.3VS BUTTON Sheet 67 of 69...

  • Page 115: Led Board

    Schematic Diagrams LED Board 1L2R *0_04 4L2R *0_04 6-71-N8754-D01 2L2R *0_04 5L2R *0_04 3L2R *0_04 6L2R *0_04 For N875HP6 L2J_LED1 L2H_3.3VS L2DGND FP226H-004S10M N875HP6 L2H_3.3VS L2H_3.3VS L2H_3.3VS L2H_3.3VS L2H_3.3VS L2H_3.3VS L2H_3.3VS L2H_3.3VS Sheet 68 of 69 L2R1 L2R2 L2R3 L2R4 L2R8 L2R5 L2R6...

  • Page 116: Power Sequence

    Schematic Diagrams Power Sequence W650RN POWER ON SEQUENCE VDD3 3.372v DD_ON 595.47us 3.367V 3.3V 1.398ms 5.19V VDD5 1.963ms 5.18V 30.459ms 3.348V SLP_SUS# 31.018ms 3.371V 3.3VA 31.333ms 1.054V VDD1.05 81.21963ms 3.368V RSMRST 182.725ms 3.369V PWR_BTN 178.754ms 3.372V SUSC# 33.405us 3.372V SUSB# 98.177 1.214V Sheet 69 of 69...

  • Page 117: Updating The Flash Rom Bios

    BIOS Update Appendix C:Updating the FLASH ROM BIOS  BIOS Version To update the FLASH ROM BIOS, you must: Make sure you down- • Download the BIOS update from the web site. load the latest correct version of the BIOS ap- •...

  • Page 118: Use The Flash Tools To Update The Bios

    BIOS Update Use the flash tools to update the BIOS 1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you see the message “EFI Shell”. You will then be prompted to give “Y” or “N” responses to the programs being loaded by EFI Shell.

This manual is also suitable for:

Clevo n871ep6

Table of Contents

Save PDF
