I
T
N
NSTALLING
HE
• When using a 32-bit PCI slot, the end of the card's edge
connector will be exposed. Be careful that it does not touch
any conducting parts on the PC motherboard.
3. Install the network card into the slot so that it is firmly seated.
Then screw the card's bracket securely into the PC's chassis.
32-Bit PCI Slot

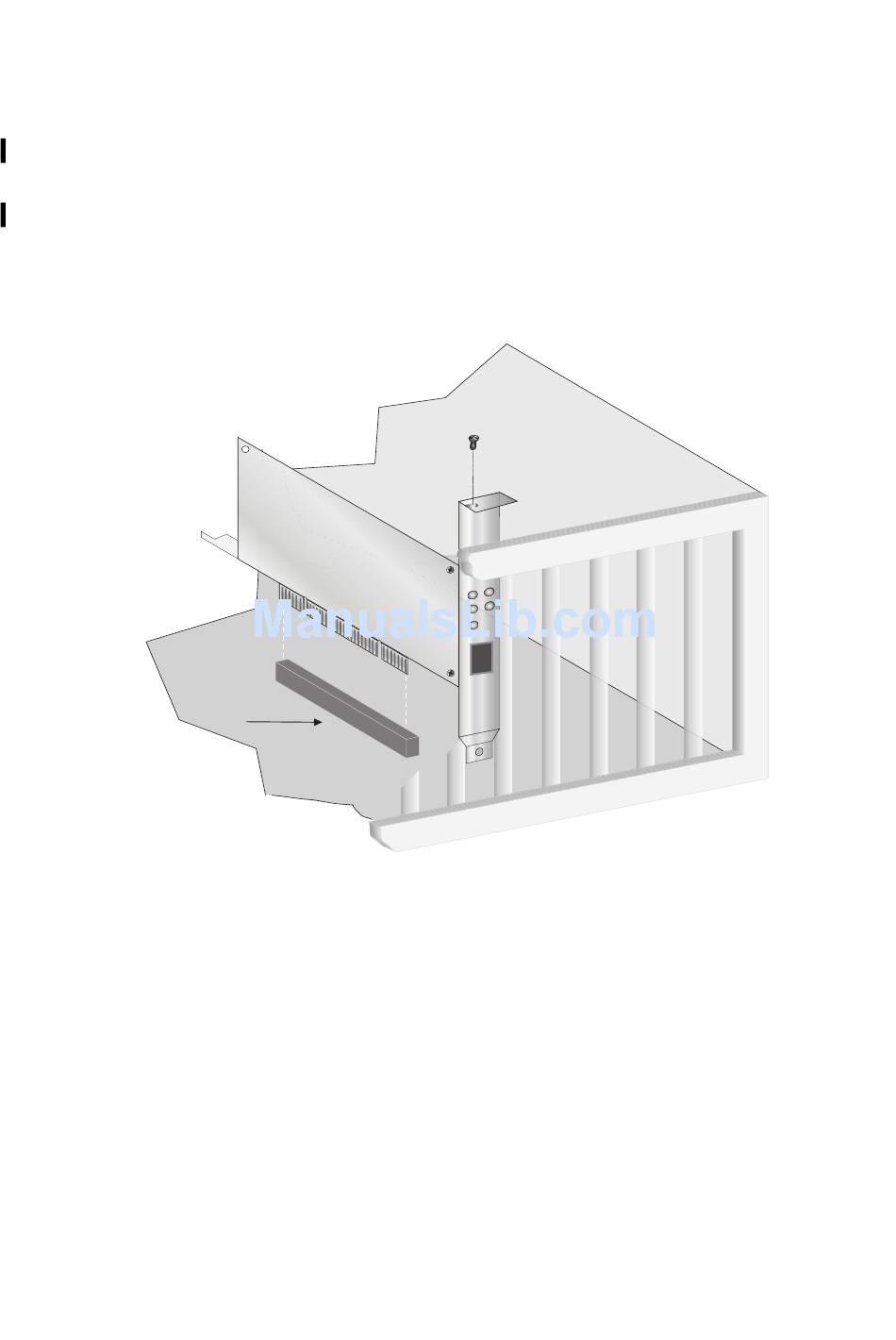

Figure 1-3. Inserting the Network Card
1-6
C
ETWORK
ARD
