LED Indicators

The EZ Card 1000 network card includes status LED indicators as
described in the following figure and table.

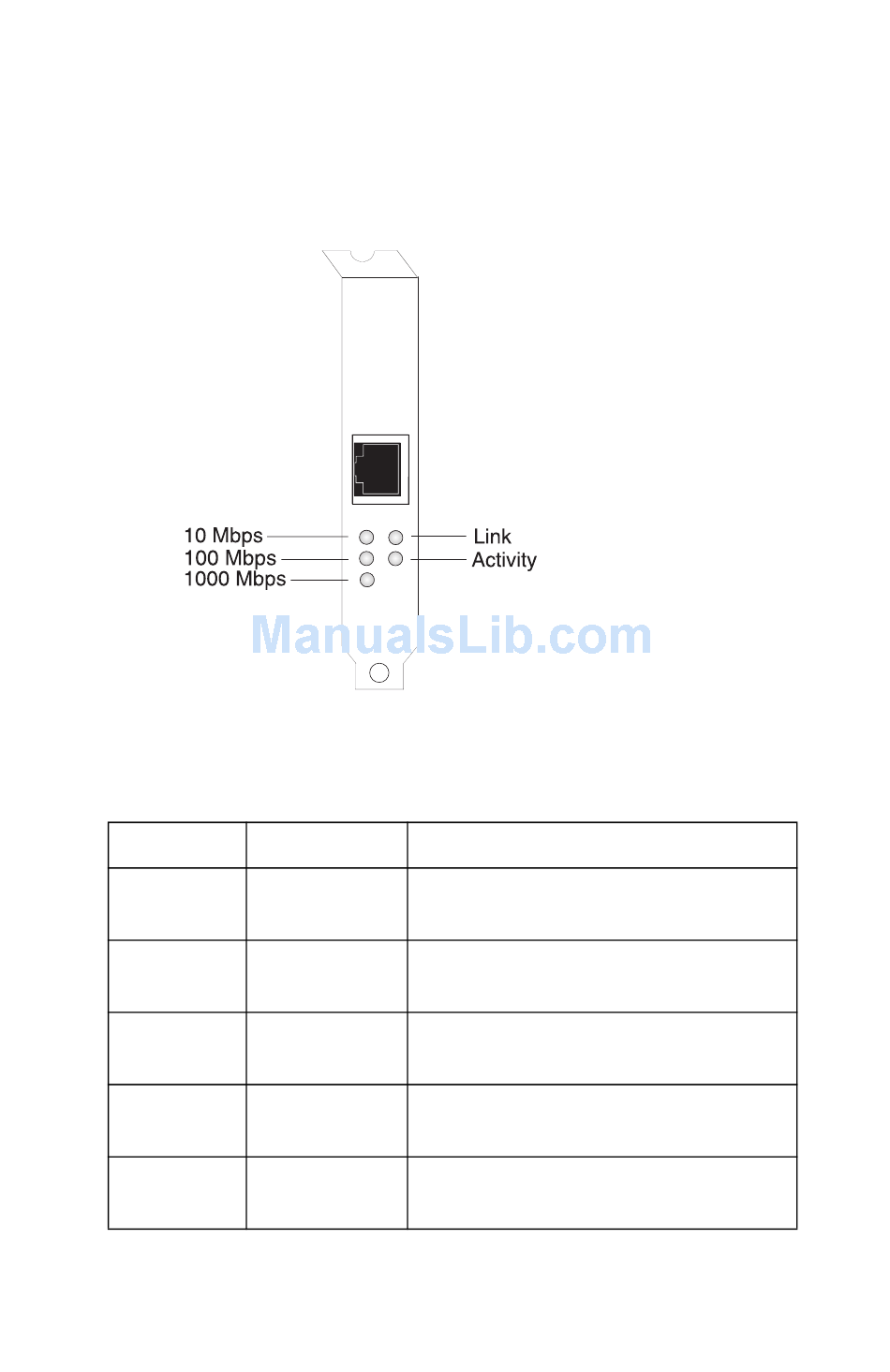

Figure 1-2. Status LEDs
LED
Link
ACT
1000
100
10
Status Description
On Green Indicates a valid 1000BASE-T
connection.
Flashing Indicates that the adapter is
Green transmitting or receiving data.
On Green Indicates that the adapter is
operating at 1000 Mbps.
On Green Indicates that the adapter is
operating at 100 Mbps.
On Green Indicates that the adapter is
operating at 10 Mbps.
