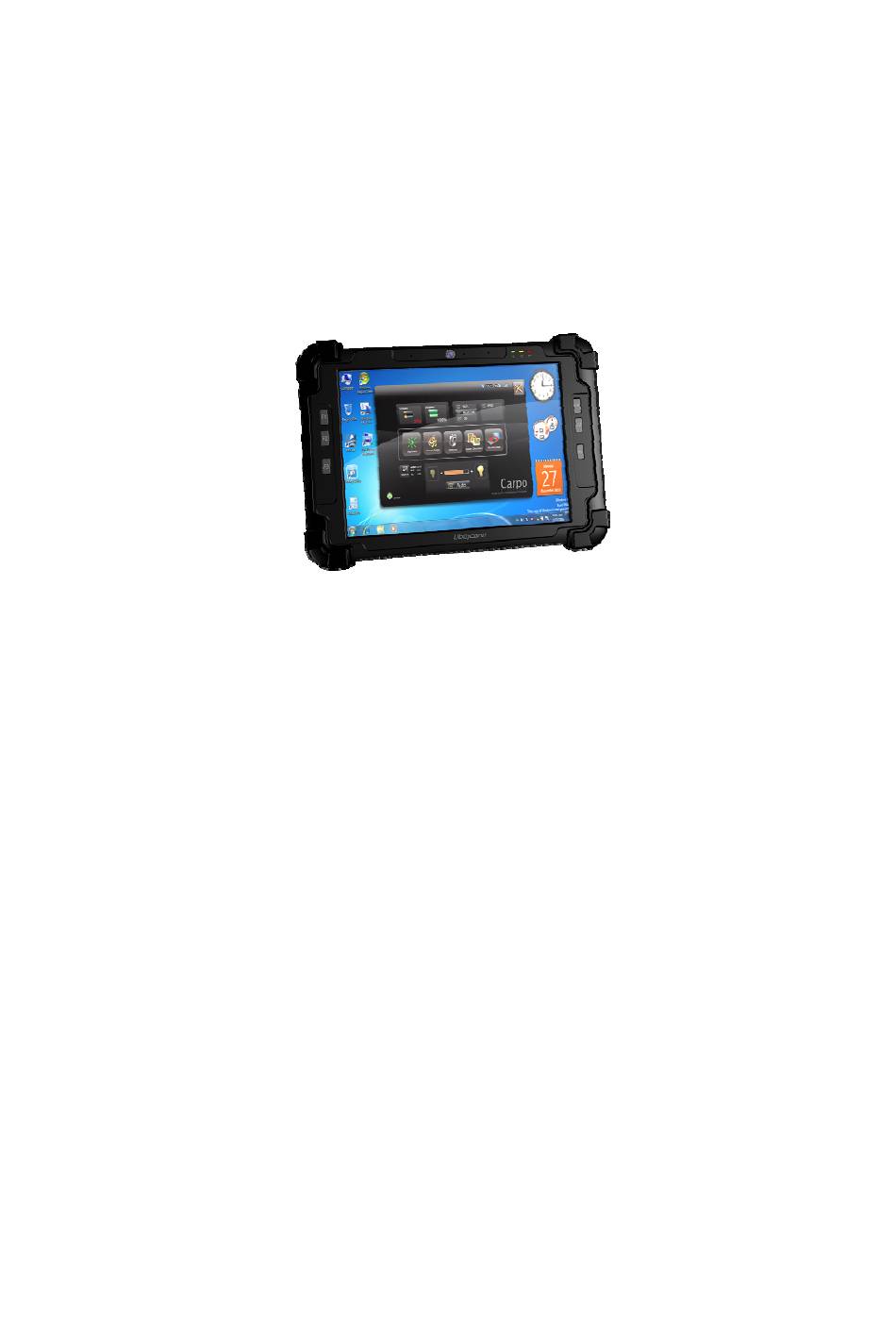

- Page 1 Preface Rugged TABLET PC User Manual...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 When placed upright on the desktop, the front panel of the T10C appears as shown in below. The front side of the T10C is equipped the I/O as described below.
-
Page 4: System Status Information
Camera/2 Mega-pixel (Front) The built-in camera can be used as a communication device for allowing you to capture images, record videos, and have video chats. It is 2M pixels and transmitting instant image through network for conference. Camera/5 Mega-pixel (Rear) ... - Page 5 For battery capacity status: The T10C is equipped with one internal battery and one optional external battery. The battery capacity status shown below advises you, that only one internal battery is embedded with the system with fully charged, and there is no optional battery installed in the system. If the system installs both the 1st internal battery and 2nd optional battery, the illustration shown below indicates its current charging status and capacity. If 1st battery capacity drops to 15%, the system will display the following warning message for 5 seconds.
-
Page 6: Brightness Control
For RF status: The following RF status shows you that the system is equipped with Wi‐Fi, and Bluetooth functions. If you want to close either of these functions, please refer section for how to disable it. The following signal strength shows you that the Wi‐Fi function is connecting currently, the stronger the signal strength, the more scale will show on the bar. If there is no module in the system, there will be no status scale in the following status bar. For System Information: The system information shown on the left shows you the utility version, BIOS and EC version and you can use them for customer service when asked. Your T10C has numbers of applications on the control panel for executing specific command. It provides you to adjust brightness, volume, launch webcam, and switch monitor (via docking). Brightness Control For brightness adjustment, press the Brightness icon. -
Page 7: Volume Control
When you press it, the brightness control panel is appeared as follows: You can click or to reduce or increase the LCD brightness. Also, you can slide the scale bar to set the brightness. Volume Control For Volume adjustment, press the Volume icon. When you press it, the Volume control panel is appeared as follows: You can click or to reduce or increase the audio volume incrementally. Also, you can slide the scale bar to set the audio volume. You can tick the Mute to mute the audio. Launch Webcam Utility For Webcam Launch, press the Webcam icon to launch the Webcam utility. Or can access the Webcam icon located on desktop. - Page 8 Do not expose heat or attempt to disassemble the battery, and do not place the battery in water or in a fire. Do not subject the battery to strong impact, such as a blow from a hammer, or stepping on or dropping it. Do not puncture or disassemble the battery. Do not attempt to open or service the battery. Replace only with batteries designed specifically for this product. Keep the battery out of reach of children. Dispose of used batteries according to local regulations. Only operate touch panel using a polyacetal stylus pen (tip R0.8 mm or more) or a finger. Do not scratch the surface of the screen with any hard objects. Do not operate touch panel with hard or sharp tips such as a ball point pen or a mechanical pencil as it would make permanent scratch to the surface of touch screen. Do not spray corrosive liquid directly on the screen or allow excess liquid to drip down inside the device. Do not place anything, such as food and drink, on the screen at any time to prevent damage to the screen. Clean the LCD display only with a soft cloth dampened with denatured alcohol or a proprietary LCD screen cleaner. Turn off the T10C and unplug the power cord. Wipe the screen and exterior with a soft, damp cloth moistened only with water. Do not use liquid or aerosol cleaners on the screen, as these will ...
- Page 9 discolor the finish and damage the screen. ...
