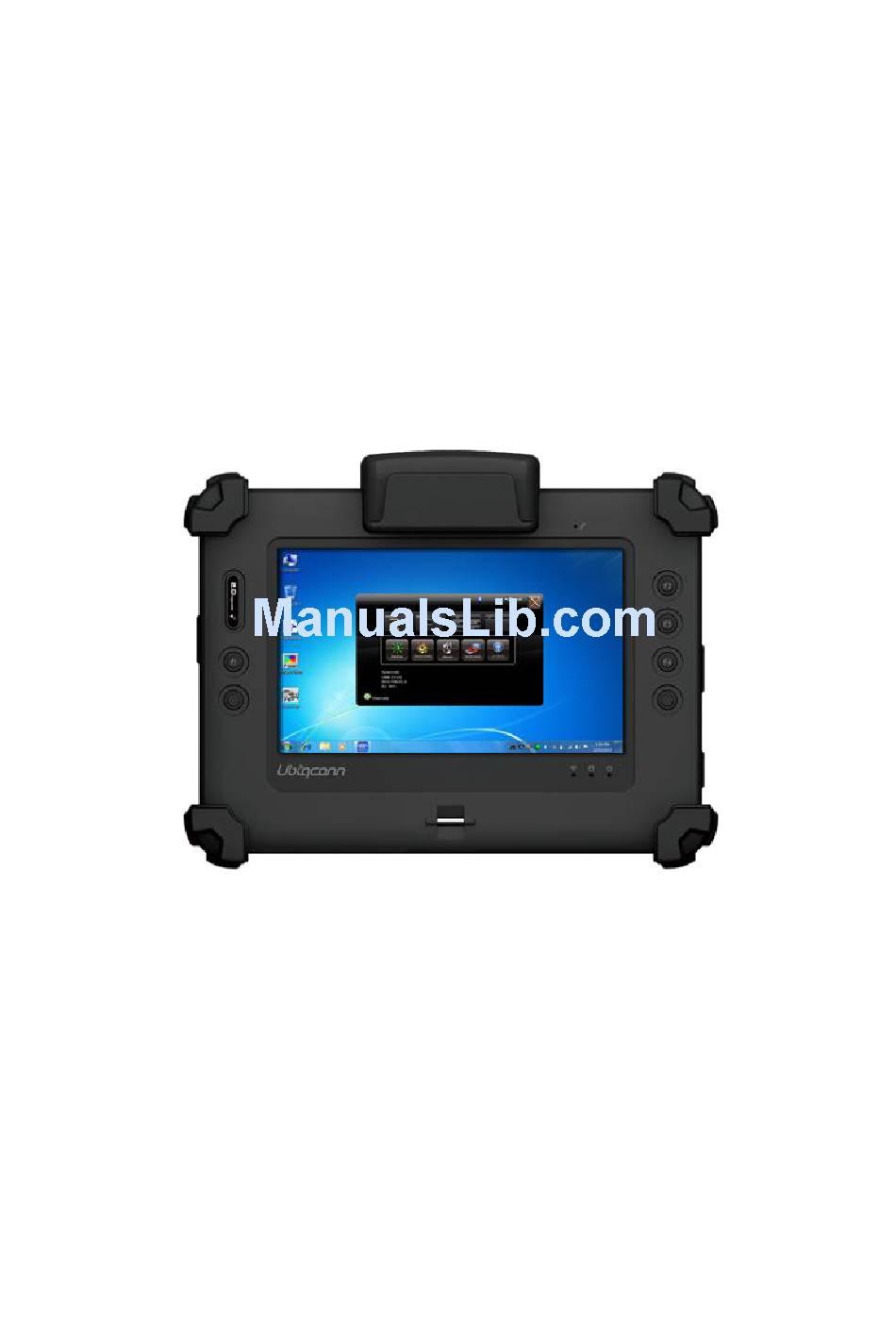

- Page 1 Rugged Tablet PC T70C User’s Guide...
- Page 2 Platform: Intel® Cedar Trail Platform (N2600+NM10) GPU: Intel ATOM N2600 1.6GHz Dual core Chipset: Intel® NM10 Express Chipset System Memory: 2GB DDRIII 800 SO-DIMMM Storage: - 1 x 32G SATA Slim Half-Size Solid State Disk ...
-
Page 3: Mechanical And Environmental
Mechanical & Environmental Physical Characteristics : Dimension & Weight : 225 x 168 x 26.5mm ; 850g Rugged Design Drop : 5ft drop Vibration : Operating : MIL-STD-810G Method 514.6 Category 4 Fig 514.6C-3 ... - Page 4 ANSI/ISO Standards 7810,7811-1/6, 7813 JIS II Decoding Method : ISO Track1 - IATA , Track2 - ABA and Track3 – THRIFT Barcode Scanner : Decoded Mode : 1D Symbologies : EAN/UPC, RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ...
- Page 5 Before starting to set up the T70C, get familiar with the locations and purpose of controls, connectors and I/O ports, which are illustrated in the figures below. When placed upright, the front panel of the T70C appears as shown in below.
- Page 6 Camera / 2 Mega-pixel (Front-facing) The built-in camera can be used as a communication device for allowing you to capture images, record videos, and have video chats. It is 2M pixels and can be used for transmitting live image through network for video conference. Camera / 5 Mega-pixel (Rear-facing) ...
- Page 7 3.5mm Headphone Jack Allows you to connect an external 3.5mm 4-conductor TRRS (stereo-plus-mic) headphone for personal listening and sound recording. MicroSD Card Slot The MicroSD (SDHC) card slot allows you to transfer/record video and pictures to your tablet, while adding extra storage capacity. Ethernet Port ...
- Page 8 The configuration file is located under drive C: root directory as "c:\FKeySet.txt" Trigger Buttons (F1 / F4) Please press F1 or F4 function keys to trigger to scan the barcode when the optional barcode scanner snap-on module is installed. If your system does not install this module, these buttons can be programmable to execute specific software application.
-
Page 9: Enable Or Disable The User Interface
Your T70C tablet has numbers of applications on the control panel for executing specific command. It provides you to adjust brightness, volume, launch webcam, switch monitor (via docking) and RF device ON/OFF. This user interface provides specific mobile utility to let you easily setup some helpful functions and aware the system status directly. - Page 10 For battery capacity status: The T70C is equipped with one internal battery and one optional external battery. The battery capacity status shown below advises you, that only one internal battery is embedded with the system which is fully charged, and there is no 2 optional battery installed in the system.
- Page 11 For RF status: The following RF status shows you that the system is equipped with Wi-Fi, and Bluetooth functions. If you want to close either of these functions, please refer section for how to disable it. The following signal strength shows you that the Wi-Fi function is connecting currently, the stronger the signal strength, the more scale will show on the bar.
-
Page 12: Brightness Control
Brightness Control For brightness adjustment, press the Brightness icon. When you press it, the brightness control panel is appeared as follows: You can click to reduce or increase the LCD brightness. Also, you can slide the scale bar to set the brightness. ... -
Page 13: Monitor Switch
incrementally. Also, you can slide the scale bar to set the audio volume. You can tick the Mute to mute the audio. Launch Webcam Utility For Webcam Launch, press the Webcam icon to launch the Webcam utility. Or can access the Webcam icon located on desktop. -
Page 14: Rf Device On/Off Control
the external display device. You can click Projector only to display on external projector/monitor only. RF Device ON/OFF Control Press this soft button (via hotkey utility menu) to enable or disable Wi-Fi, Bluetooth, WWAN, or GPS devices. When you press the RF ON/OFF soft button, the screen pops-up the option list for your selection. - Page 15 To activate the function, please again tick the option as shown in the following graphics to make the device enable. Activate Wi-Fi function Activate Bluetooth function Activate WWAN function Activate GPS function The Power/Resume button is found on the left side of the Tablet PC. Press the Power/Resume button to start your system and check that if the Power LED turns After a few seconds, the system’s display will turn on and your system will begin to execute the Power On Self Test or POST to check if all system components are...
- Page 16 A keyboard is an input device; a mouse is a pointing device. Please connect these two devices as graphics shown below to interact with your system. USB (Universal Serial Bus) is a hardware interface that enables you to connect multiple devices (such as printers, mice, keyboards, storage devices, joysticks, digital cameras, and video conference cameras, etc.) to your tablet pc and up to 127 devices can be attached.
-
Page 17: Function Key
This system comes with a chip from Phoenix BIOS that contains the ROM Setup information for your system. (This chip serves as an interface between the processor and the rest of the system components.) This section explains the information contained in the Setup program and tells you how to modify the settings according to your system configuration. - Page 18 The Standard CMOS Setup screen is displayed above. Each feature may have one or more option settings. Use the arrow keys to highlight the feature you want to change and then use “”or “” to select the value you want for that feature. NOTE: The system BIOS automatically detects BIOS, Processor, memory size, thus no changes are necessary.
- Page 19 Total Memory The system will automatically displays the information of Total Memory. For Advanced Settings, it lets you define the device configuration when system booting. Set Supervisor Password This field let you set or clear the Supervisor account’s password. Set User Password ...
- Page 20 This page allows you to set the search drive sequence where the system will try to boot up first. To select the boot device, you can use the up or down arrow key, then press <+> to move up the device in the list or press <-> to move down the device in the list. To exit from this menu, press <Esc>.
- Page 21 and exit setup?”. Select [OK] to exit the BIOS SETUP UTILITY without saving any changes. Load Setup Defaults When you select this option, it will pop-out the following message, “Load optimal defaults?” Select [OK] to load the default values for all the setup configurations. Save Changes ...
