E-line LC-X0T User Manual

Product Name : Smart Scene Controller
Model No. : LC-X0T
Features :
Multi-spot mobile remote control
RF transmit no wiring necessary
2,3,4,6 touch keys to be programmed easily.
One touch to transmit sigle or multi direction
One extra code to activate a scene controller
nearby. (Scene 1~10 for assigned or disable)
N.C. / N.O. dry contact input (Digital Input) to
trigger key 1 content
Looks like LC series SW, can be paste on a spot
where there has no gang box to take control SW,
curtain & appliances.
Specification :
RF Radio Frequency: 433.92 MHz
Power Input : AC - 110V ~ 230V
Use an RC-07 to program a scene & input to a key to store.
If to program a key to become a 2-way SW button, the corresponding SW
should be a standard e2-LiVE SW that can be a 2-Way SW control system.
Function Descriptions
1. Forewords
A. Each key of LC-X0T can be programmed as a(n):
a. 2-Way SW: to store one single action, such as [1], [ON] (Light No.1, ON). The key
become a 2-way SW to every SW set as Light No.1.
b. Scene button: to store up to 36 actions including dimming.
c. Appliances Activate Button: touch this key to activate a scene, stored in a scene
controller nearby (ex. RP-10,12, HC-12) to accomplish a series control of home appliances
and lightings. This function can be disabled.

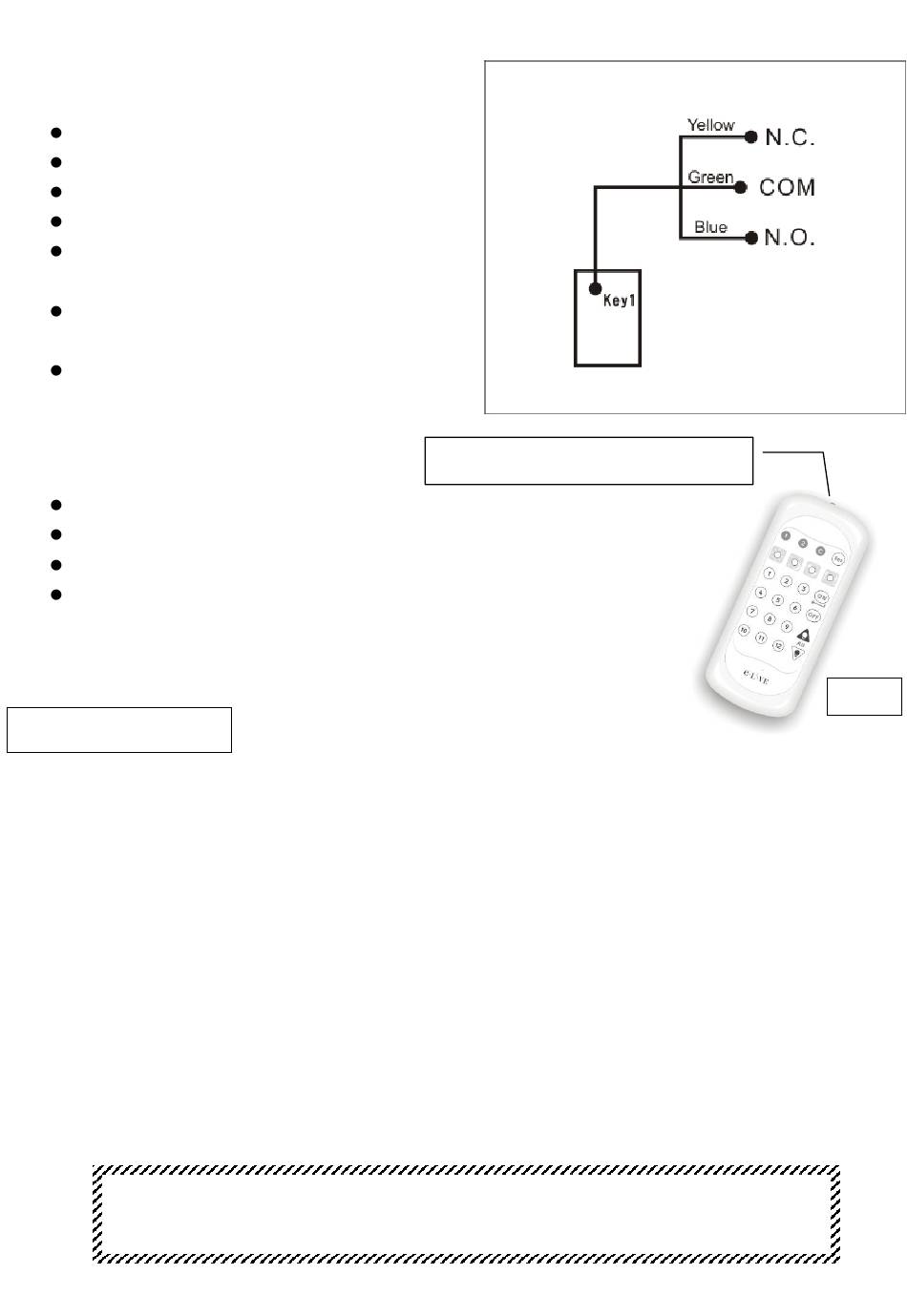

B. DI Input: LC-X0T provide one N.C./N.O. input wire to accept trigger signal from various sensors, to
NOTE: 2-Way or scene control function is alternative, the Appliances Activation
function can be coexistence & Dry Contact input can only activate key 1 scenes.
carry out a series scene control action pre-stored in key 1.
IR Output for scenes' actions ouput
P/N:LC-X0T_20130110
RC-07
1
