OWNER'S MANUAL
2014 YETI SB6C

Advertisement

loading

Related Manuals for Yeti Cycles SB6C

Summary of Contents for Yeti Cycles SB6C

  • Page 1 OWNER’S MANUAL 2014 YETI SB6C...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS BRAND OVERVIEW FRAME FEATURES GEOMETRY MAINTENANCE SCHEDULE SETUP OVERVIEW SHOCK SETUP DERAILLEUR HANGER INSTALL CABLE/LINE SETUP TECHNICAL ASSEMBLY OVERVIEW EXPLODED VIEWS REBUILD KITS LEGAL WARRANTY CONTACT INFORMATION...
  • Page 3 WELCOME TO THE TRIBE. CONGRATULATIONS ON YOUR PURCHASE OF A NEW YETI. We are confident your new bicycle will exceed This manual outlines basic setup and your expectations for value, performance, and maintenance recommendations of your new ride quality. Each frameset and component Yeti.

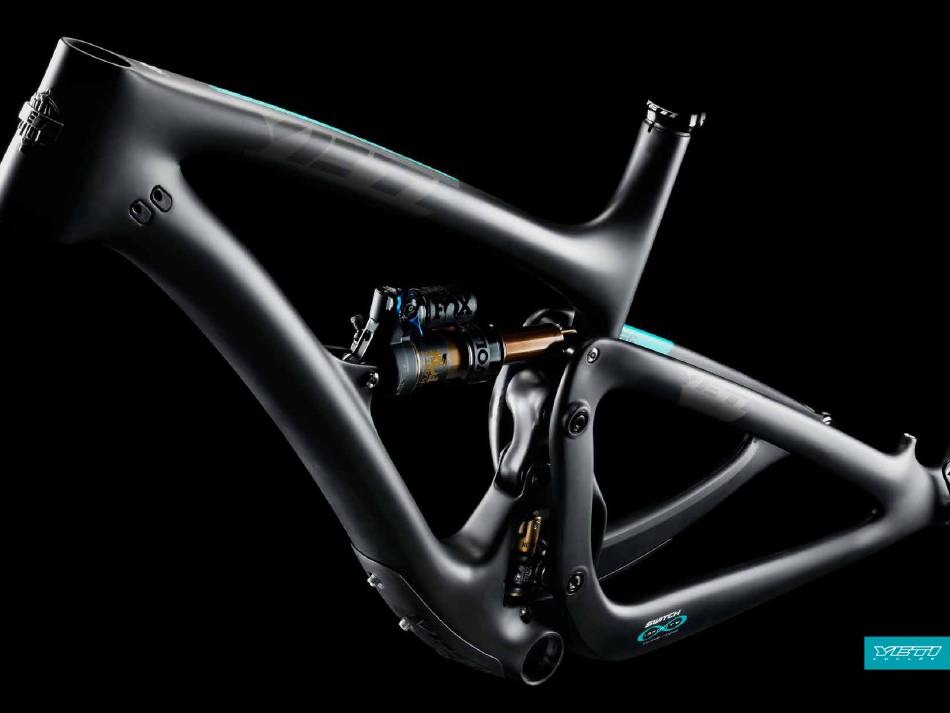

  • Page 4 HIGH MODULUS CARBON FIBER MAIN FRAME AND SWING ARM OVERSIZED PIVOT PINS WITH ENDURO MAX BEARINGS The ISCG 05’ tab is built into your SB6c. The built in system is lighter than a conventional tab and allows for a full myriad of chain- INTEGRATED ISCG 05 MOUNTS guide options.

  • Page 5: Geometry

    GEOMETRY FOX 36 / 160MM FORK 15.0 16.5 17.5 20.5 21.8 22.8 23.8 24.8 25.8 65.5 65.5 65.5 65.5 65.5 73.5 73.5 73.5 73.5 73.5 17.4 17.4 17.4 17.4 17.4 44.6 45.7 46.8 47.8 48.9 13.6 13.6 13.6 13.6 13.6 28.7 28.8 28.9...

  • Page 6: Overview

    It is important to remember that service intervals can vary specifications for individual parts on the SB6c are listed below, as well as in the step by step depending on climate, trail conditions and riding frequency. If you are unsure about working on assembly instructions later in the manual.

  • Page 7: Shock Setup

    Once you have set your baseline air pressure you with your settings to find the set-up that For the SB6c to ride properly it is important to need to measure the sag. To measure the sag setup the shock with the correct amount of sag.

  • Page 8: Derailleur Hanger Install

    DERAILLEUR HANGER INSTALLATION DERAILLEUR HANGER INSTALL YETI TIPS TOOLS NEEDED NOTE: The hanger cap is REVERSE • 6mm Allen key THREADED. Be careful not to strip out the • Grease Hanger tool faces. The cap is marked with a tighten direction arrow. Inspect the frame around the hanger seat for any suspicious damage any time you replace 01.
  • Page 9 CABLE HOUSING SETUP The SB6c uses internally routed full length cable housing. By using full cable housing, we have eliminated break points in the line of your shifter housing. This allows riders to experience better overall shifting performance by reducing the entrance of unwanted elements such as sweat and sediment.
  • Page 10 • Lock ring pliers threads. The instructions denote whether to • Grease use a Loctite compound or grease. All the parts you’ll need to get your SB6c put Slip washers onto and apply blue (248) Loctite to • Blue (248) Loctite together.
  • Page 11 ASSEMBLY ASSEMBLY Insert the link and align the lower pivot. Place Place the steel washer on the lower link bolt and Slide the main pivot pin through the swingarm Prepare and install the upper link pivot pin the the steel washer over the pivot pin, apply a small apply pink Loctite (222).
  • Page 12 ASSEMBLY ASSEMBLY Using a soft mallet push the female shock Prep and install the male shock mounting Prepare both your collet bolts with grease. You Using a 5mm allen wrench, thread both collet mounting hardware through the frame and shock hardware on both ends of the shock.

  • Page 13: Exploded Views

    EXPLODED VIEW...
  • Page 14 BOLT CAP M6 X 1 X 20MM 300060072 YETI SEAT CLAMP 300030214 WASHER 10 X 6.2 X 1MM 400100119 SB6C DOWN TUBE PROTECTOR 300030276 WASHER 15.2 X 21.5 X 1MM 300030148 WASHER 5.1 X 8.9 X 1MM 300030277 WASHER 10.4 X 21.5 X 1MM 300030010 BOLT-CAP H20 (M5 X 0.8 X 16MM)

  • Page 15: Rebuild Kits

    WASHER SS 6.5MM ID 12.5 OD .5M 300030069 WASHER SS 8.8MM ID 12.5MM OD . PART # DESCRIPTION 300030151 BOLT-TI-MALE M6X12MM 200020232 SB6C MASTER REBUILD KIT 300030154 STUD-TI-FEMALE 8X54.5MM 300020045 BEARING F6902 2RS 28X15X7 OUT 300030214 WASHER 10 X 6.2 X 1 300030057...
  • Page 16 REBUILD KITS CONTINUED PART # DESCRIPTION 400100126 SB6C PROTECTOR KIT 400100119 PROTECTOR SB6-C DT 400100120 PROTECTOR SB6-C CS/SS 400100121 PROTECTOR SB6-C CHAIN SUCK 400100122 PROTECTOR SB6-C CS LOWER 200020236 SB6-C CABLE GUIDE KIT 2014- 300040474 PORT GROMMET BLANK 300040475 PORT GROMMET 5MM...

  • Page 17: Warranty

    Every YETI frameset has a useful product life cycle. The length of that useful product life Yeti Cycles will repair or replace, at its option, any frame it determines to be defective due to cycle will vary depending on the construction and the materials of the frameset, maintenance defective materials and/or workmanship.
