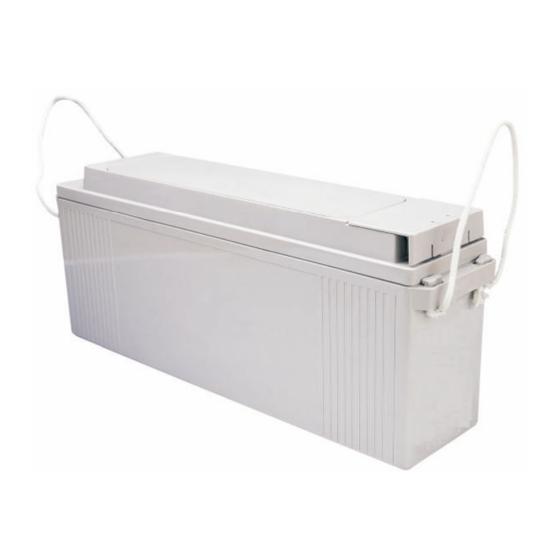

- Page 1 Polymer Gel Standby Battery MPG Series OPERATION MANUAL Version：V4.7 Zhejiang Narada Power Source Co., Ltd.
-
Page 2: Table Of Contents
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series Contents Security Instructions ......................... 3 Chapter One Product Introduction ....................4 1.Features ....................错误!未定义书签。 2. Main Applications .................. 错误!未定义书签。 3. Types and Dimensions ................错误!未定义书签。 4. Dimension and Sketch Map..............错误!未定义书签。... -
Page 3: Security Instructions
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series Safety and Warning Please read this manual! It provides very important direction for fix and operation, which can make best capability for the equipment, and elongate the using life. ⚫... -
Page 4: Chapter One Product Introduction
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series Chapter One Product Introduction 1. Technical Features 1.1. Gel technology 1.1.1. Using polymer gel electrolyte 1.1.2. Special Paste Formula 1.1.3. Special Patented grid alloy 1.1.4. Thick Plate Design 1.1.5. Through-the-portions Welding and low internal resistance 1.2. -
Page 5: Types And Dimensions
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 3. Types and Dimensions Tab.1-1 Types and Dimensions Normal Rated Dimensions(mm) Weight Type Voltage Capacity (Kg) Length Width Height （V） (Ah) MPG12V50F 20.7 MPG12V65F 24.5 MPG12V85F 28.0 MPG12V100F 38.0 MPG12V105F 34.0... - Page 6 NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series MPG12V50F MPG12V100F MPG12V85F MPG12V105F MPG12V150F...
-
Page 7: Terminals Sketch Map
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 5. Terminals Sketch Map MPG12V100 MPG12V200 MPG12V75F 、 MPG12V125F 、 MPG12V150F MPG12V85F... -
Page 8: Chapter Two Technical Characteristics
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series Chapter Two Technical Characteristics 1. Charge Characteristics Curve Fig. 2-1 The battery voltage vs charge time curves at 25℃ Fig.2-1 Charge Curve at 25℃ 2. Discharge Characteristics Curve Fig.2-2 The terminal voltage vs discharge time curves at different current at 25℃. -
Page 9: Internal Resistance And Short Circuit Current
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 3. Internal resistance and short circuit current The internal resistance of the battery is a dynamic nonlinear parameter that is continuously changed along with the temperature and discharge state. The internal resistance is the lowest when battery is fully charged. -
Page 10: Constant Current And Power Discharge Data
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 4．Constant Current and Power Discharge Data Table 2-2 Constant current discharge characteristic Units: Amperes(25℃) MPG12V50F End voltage 5min 15min 30min 45min per cell 1.60V 31.2 17.9 14.0 10.8 4.40 2.73 2.28... - Page 11 NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 1.67V 85.5 69.0 39.6 28.4 22.6 19.0 16.3 12.5 10.3 8.72 5.42 4.53 1.70V 84.9 68.5 39.2 28.2 22.5 18.8 16.2 12.5 10.2 8.64 5.41 4.53 1.75V 84.3 67.5 38.3 27.9...
-
Page 12: Mpg12V150F
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series MPG12V150F End voltage 5min 15min 30min 45min per cell 1.60V 108.4 62.3 45.2 35.4 29.9 25.7 19.8 16.3 13.65 8.57 7.16 1.67V 108.4 61.9 44.4 35.2 29.8 25.5 19.6 16.0 13.65... -
Page 13: Mpg12V170F
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 1.80V 91.1 52.6 41.4 32.3 28.1 24.3 19.0 15.6 13.25 8.27 6.99 1.83V 87.1 51.9 40.1 30.8 27.2 23.4 18.5 15.0 12.75 8.25 6.88 1.85V 84.4 50.0 39.0 30.4 26.5 22.9... - Page 14 NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series Table 2-3 Discharge data with constant power Units: Watts per cell(25℃) MPG12V50F End voltage 5min 15min 30min 45min per cell 1.60V 58.8 33.8 26.6 20.6 18.5 15.6 12.3 10.0 8.51 5.41...
- Page 15 NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 1.75V 75.0 54.1 43.6 36.5 31.5 24.2 20.0 16.9 10.9 9.15 1.80V 74.7 54.0 43.5 35.9 31.1 24.1 19.9 16.8 10.9 9.14 1.83V 73.8 52.7 42.0 35.1 30.2 23.9 19.4 16.4...
- Page 16 NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 1.67V 202.8 117.5 84.7 68.0 57.4 49.2 38.1 31.2 26.51 16.87 14.26 1.70V 202.8 116.5 84.7 67.7 56.6 48.8 37.9 31.0 26.20 16.87 14.16 1.75V 199.8 116.5 83.9 67.7 56.5 48.7...
- Page 17 NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series End voltage 5min 15min 30min 45min cell 1.60V 1044 223.7 128.4 94.0 74.5 62.9 54.2 41.9 34.4 28.99 18.56 15.55 1.67V 1006 222.7 128.4 92.8 74.4 62.9 53.9 41.7 34.2 28.99...
-
Page 18: Chapter Three Operation And Maintenance
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series Chapter Three Operation and Maintenance 1. Operation Conditions Ambient temperature: MPG series optimum temperature is 15℃～25℃, the higher and lower temperatures will impact battery performance Operation temperature range Temperature range... -
Page 19: Temperature
The MPG series using the polymer gel technology, this technology leverages on the advantages of the AGM and Tubular gel technology to provide the excellent temperature tolerance ability, the operation temperature range is -40℃... - Page 20 PbSO , decrease the capacity, and also shorten the life of the battery. At 25℃, the proper floating voltage for MPG series is 2.25V/cell. And temperature compensate coefficient is -3mV/℃/cell. The formula to calculate float voltage at different temperature: =2.25-(T-25)×0.003...
- Page 21 3.3. Temperature and equalization charge GEL battery needs equalization charge periodically to guarantee normal operation. At 25℃, the proper equalization voltage for MPG series is 2.4V/cell. And temperature compensate coefficient is -5mV/℃/cell. The formula to calculate equalization voltage at different temperature: =2.4-(T-25)×0.005...
-
Page 22: Charge And Discharge Requirements
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series designed life of battery at 25℃ is 5 years, when battery operates at 35℃, the actual life is only 2.5 years. （ － ） ＝t ×2 Notes：T the actual ambient temperature;... -
Page 23: Storage
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series were not deep discharged, e.g., the charge time of 20%DOD batteries can be shortened to 10 hours). － On condition of constant voltage, the value of charge current hasn’t varied for continuous three hours. -
Page 24: Maintenance
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series 10 C(50 F) 40 C (104 F) 30 C (86 F) 20 C(68 F) 6. Maintenance In order to assure service life, the batteries should be correctly inspected and maintained. - Page 25 NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series — Make a discharge test to check with exact load every year, discharging 30-40% of rated capacity. 6.4. Three-year Maintenance Make a 80% capacity test every year after three years’ operation.
- Page 26 NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series After-sales Service / Customer Service Hotline NARADA POWER SOURCE CO.,LTD. Building A, No.822 Wen’er West Road, Hangzhou, China Tel: +86-571-56975980 Fax: +86-571-56975955 Website: www.naradapower.com E -mail: intl@narada.biz NARADA ASIA PACIFIC PTE. LTD.
-
Page 27: Annex 1
NARADA POWER SOURCE CO., LTD Operation Manual for MPG Series Annex 1 GEL Battery Regular Maintenance Record Type Place Test Status Current(A) Room Temperature Total Voltage（V） Voltage（V） Voltage（V） Check by sight Result： Tester Date...
