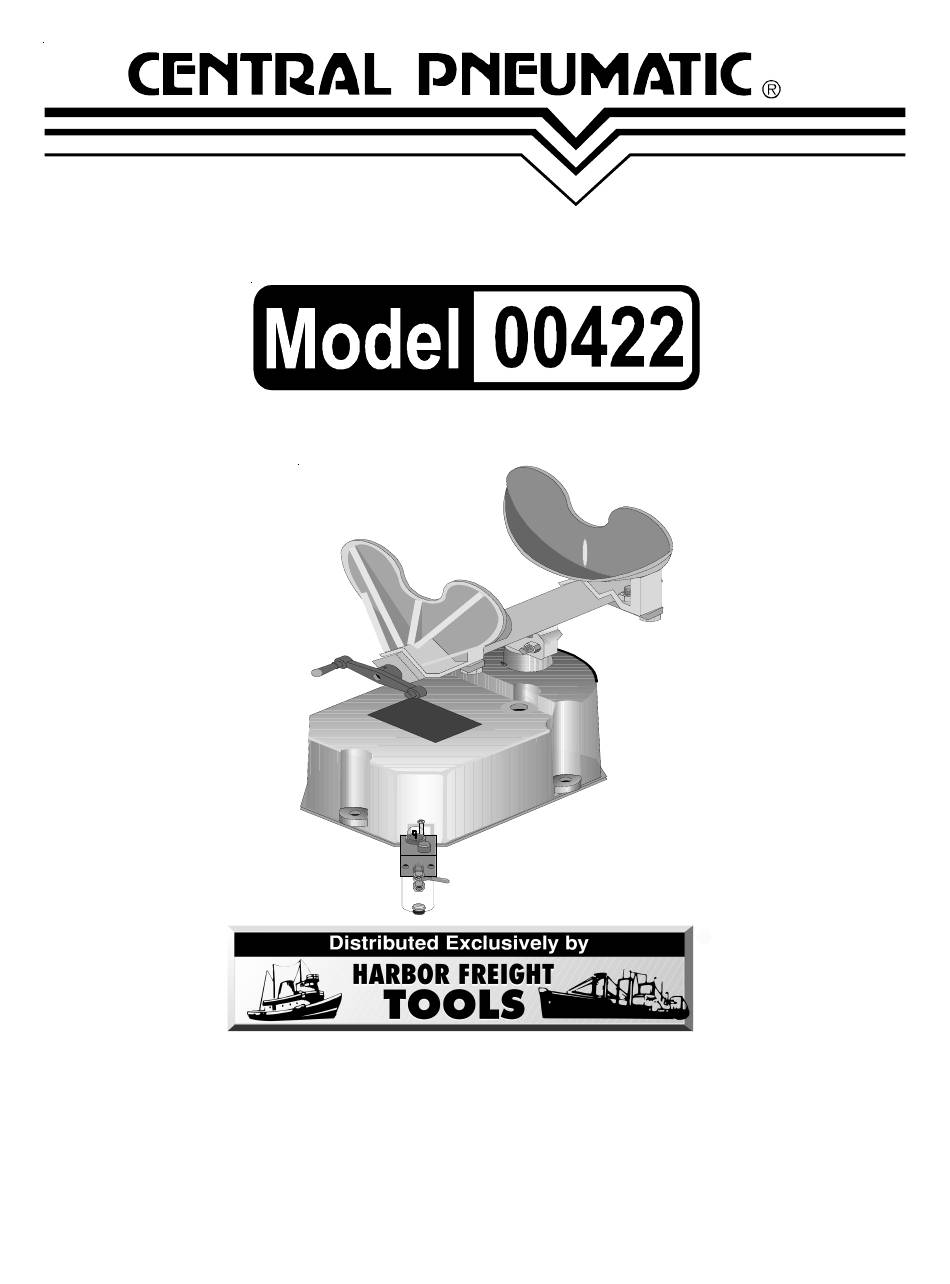

AIR PAINT SHAKER
ASSEMBLY and OPERATING INSTRUCTIONS
®
3491 Mission Oaks Blvd. / Camarillo, CA 93011
Copyright © 1997 by Harbor Freight Tools. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in any
shape or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Central Pneumatic 00422
Summary of Contents for Central Pneumatic 00422
- Page 1 AIR PAINT SHAKER ASSEMBLY and OPERATING INSTRUCTIONS ® 3491 Mission Oaks Blvd. / Camarillo, CA 93011 Copyright © 1997 by Harbor Freight Tools. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
-
Page 2: Specifications
DRESS PROPERLY. Do not wear loose clothing or jewelry as they can be caught in moving parts. Non-skid footwear is recommended. Wear restrictive hair covering to contain long hair. Page #2 -- SKU: 00422 REV 10/06... - Page 3 Do not allow compressor to sit pressurized for longer than one hour. 19. MAKE SURE ALL EQUIPMENT IS RATED TO THE APPROPRIATE CAPACITY. Make sure that regulator is set at least 10 PSI lower than the lowest rated piece of equipment you are using. Page #3 -- SKU: 00422...
- Page 4 Step 3: Thread the LUBRICATOR ASSEMBLY (#03) onto the INLET FITTING. Do not over tighten. Step 4: Thread the CONTROL VALVE (#01) onto the BRASS NIPPLE (#02), already fitted to the LUBRICATOR ASSEMBLY. Tighten with a 5/8" wrench. Step 5: Your Paint Shaker is ready for use. Page #4 -- SKU: 00422...
-
Page 5: Operation
Shaker off immediately if this happens. Step 5: Stop Paint Shaker when done by closing the control valve. Step 6: Unclamp can. Remove. Step 7: If rotation is more/less than 15° from side-to-side, screw the ADJUSTMENT SCREW (#07) in/out respectively. Page #5 -- SKU: 00422... -
Page 6: Maintenance
Oil Drip Rate Adjustment Screw Figure 2 — Oil Drip Adjustment Step 3: Adjust oil drip rate so that 1 drop occurs every 15-20 seconds. NOTE Do not force adjustment screw. It stops when fully closed. Page #6 -- SKU: 00422... - Page 7 Drain Plug Figure 3 — Fill Reservoir Step 2: Tighten the Drain Plug. Step 3: Remove the Fill Cap and add Pneumatic Tool Oil until Reservoir is 3/4 full. Step 4: Tighten and Fill Cap. Page #7 -- SKU: 00422...
- Page 8 Figure 4. Clamp Screw (#51) (Located Beneath the Clamp Frame.) Zerk Fittings (#35) Figure 4 — Grease Zerk Fittings Step 2: Grease the CLAMP SCREW (#51) every six months (more often for heavy use). Page #8 -- SKU: 00422...
-
Page 9: Parts List
Clamp Nut (Left Hand) Packing Jaw Bolt Piston Screw Clamp Nut (Right Hand) Wear Ring Thrust Washer Piston O-Ring Roll Pin Piston Clamp Screw Air Cock Jaw Shim Rod Bearing 3/8" 16 Nut Rod Seal Page #9 -- SKU: 00422... -
Page 10: Parts Diagram
PARTS DIAGRAM Page #10 -- SKU: 00422...
