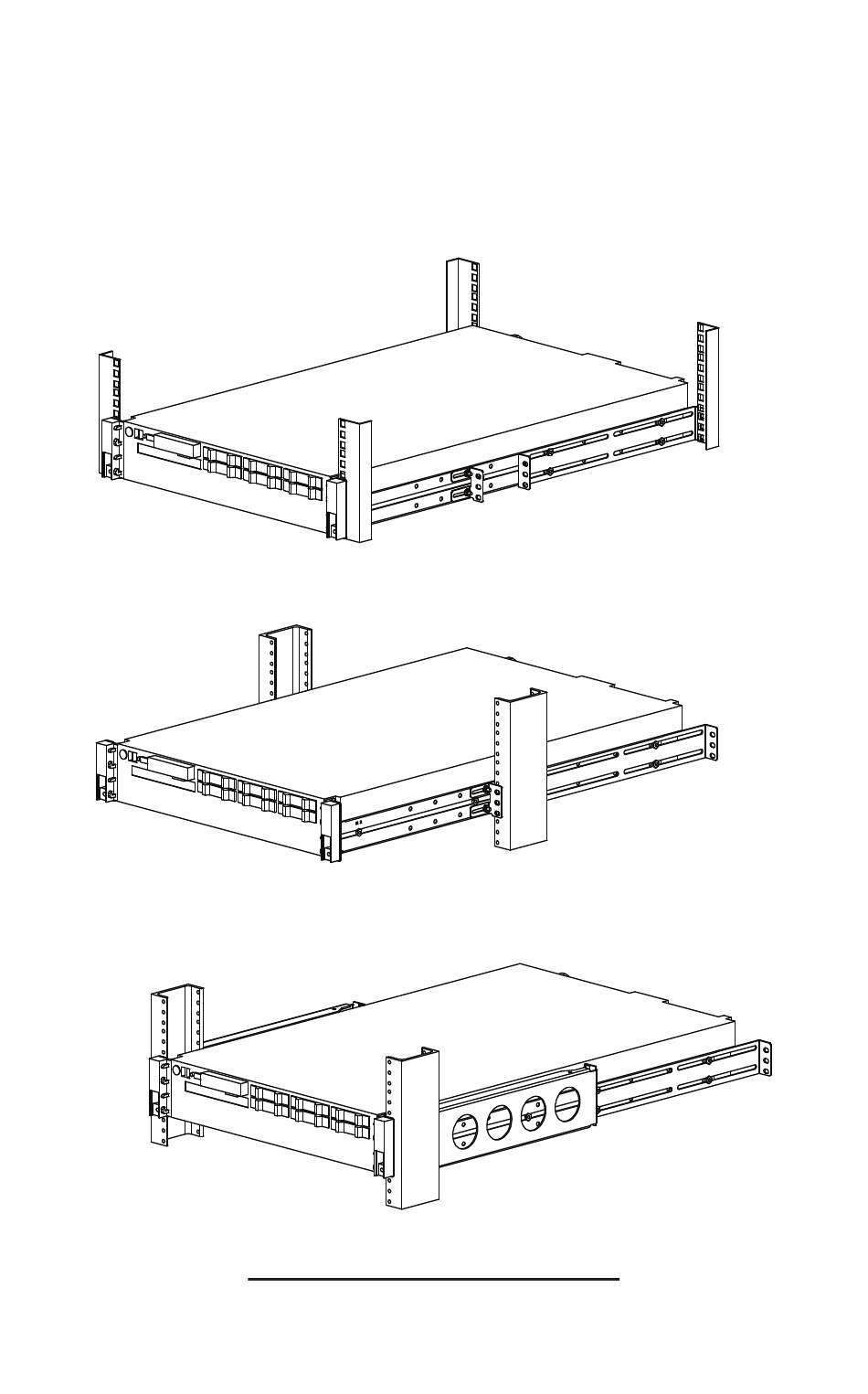

- Page 1 Patent(s) Pending 4Post and 2Post Rails for Dell PowerEdge R810 4Post Page 2 2Post Center Page 4 2Post Flush Page 6 Installation Instructions Kit P/N: 109-1737 109-1841...
-
Page 2: Kit Contents
2-Post Flush Adapter Brackets (12) 12-24 Cage Nuts 12-24 x 500 Slotted Self-Tapping Screws 4Post Installation Instructions Step 1. Install cage nuts as shown at the front and rear of the rack: (12) 12-24 black cage nuts. Front of Rack... - Page 3 4Post Installation Instructions Step 3. Attach the front and rear of both rails to the rack using supplied screws at each rail end: Tighten the front and rear screws on the right side rail. Leave the front and rear screws on the left side rail slightly loose.
- Page 4 2Post Center Installation Instructions Step 1. Installing rail kit: Installing this rail kit in a 2Post center rack requires a change to the pre-assembled rail configuration as follows (Note: this requires a 3/8” wrench or ratchet). Angle Bracket Range 3" to 6.5" [76mm to 165mm] Step 2.
- Page 5 2Post Center Installation Instructions Step 3. Install the equipment using two people: With one person on each side of the equipment, slide the equipment onto the rails so the Equipment Mounting Nuts on each side slide into the Rail Slot on both sides. Slide the equipment all the way in.
- Page 6 2Post Flush Front Installation Instructions Step 1. Install Rails: Installing this rail kit in a 2Post flush rack requires the 109-1841 Kit and a change to the pre-assembled rail configuration as follows (Note: this will require a 3/8” wrench or ratchet). Remove the Angle Brackets and associated hardware from the pre-assembled rails.
- Page 7 2Post Flush Front Installation Instructions Step 2. Attach the rails to the rack: - Attach the Front of the rails to the 2Post rack using (3) supplied Pan Head Screws on each side. - Attach the 2Post Adapter Bracket per the "2 Post Racking System" Instructions. - Attach the Rear of the rails to the adapter bracket using (3) 12-24 Pan Head Screws and (3) 12-24 Cage Nuts on each side.
- Page 8 2Post Flush Front Installation Instructions Step 3. Tighten the front and rear screws on the right side rail: Leave the front and rear screws on the left side rail slightly loose. Step 4. Install the equipment using two people: With on person on each side of the equipment, slide the equipment onto the rails so the Equipment Mounting Nuts on each side slide into the Rail Slot on both sides.
