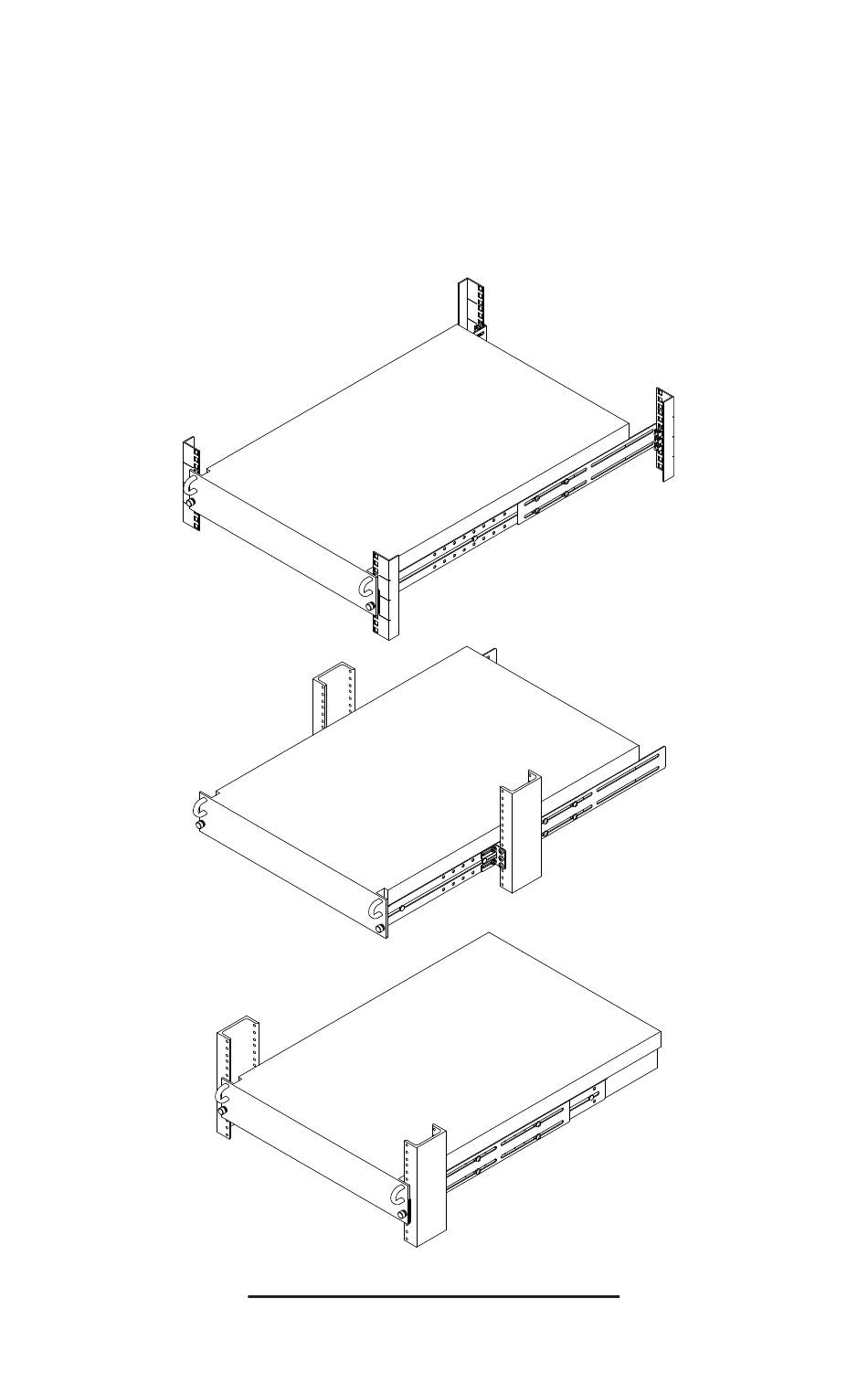

- Page 1 Patent(s) Pending 4Post and 2Post Rails for Dell PowerEdge 2950 4Post Page 2 2Post Center Page 4 2Post Flush Page 6 Installation Instructions Kit P/N: 2UBRK-2950...
- Page 2 4Post Installation Instructions Step 1. Install cage nuts as shown at the front and rear of the rack: (12) 12-24 black cage nuts, (2) 10-32 silver cage nuts. Front of Rack 10-32 (6) 12-24 black cage nuts 10-32 (2) 10-32 silver cage nuts...
- Page 3 4Post Installation Instructions Step 3. Attach the front and rear of both rails to the rack using (3) 12-24 screws at each rail end: The 10-32 cage nut at the front is used for the equipments thumb screw. Tighten the front and rear screws on the right side rail. Leave the front and rear screws on the left side rail slightly loose.
- Page 4 2Post Center Installation Instructions Step 1. Installing rail kit: Installing this rail kit in a 2Post center rack requires a change to the pre-assembled rail configuration as follows (Note step: this will require a 3/8” wrench or ratchet). Remove the Rear Slides from the pre-assembled rails. Re-assemble as shown, while swapping the Rear Slides from one assembly to the other (i.e.
- Page 5 2Post Center Installation Instructions Step 3. Install the equipment using two people: With one person on each side of the equipment, slide the equipment onto the rails so the Equipment Mounting Nuts on each side slide into the Rail Slot on both sides. Slide the equipment all the way in.
- Page 6 2Post Flush Front Installation Instructions Step 1. Install Rails: Installing this rail kit in a 2Post flush rack requires a change to the pre-assembled rail configuration as follows (Note step: this will require a 3/8” wrench or ratchet). Remove and discard the Angle Brackets and associated hardware from the pre- assembled rails.
- Page 7 2Post Flush Front Installation Instructions Step 2. Attach the rails to the rack: - Attach the Front of the rails to the 2Post rack using (3) 12-24 Flat head screws and (1) Front Thread Adapter on each side. - Attach the Rear of the rails to the 2Post rack using (3) 12-24 Pan head screws on each side.
- Page 8 2Post Flush Front Installation Instructions Step 3. Tighten the front and rear screws on the right side rail: Leave the front and rear screws on the left side rail slightly loose. Step 4. Install the equipment using two people: With on person on each side of the equipment, slide the equipment onto the rails so the Equipment Mounting Nuts on each side slide into the Rail Slot on both sides.
