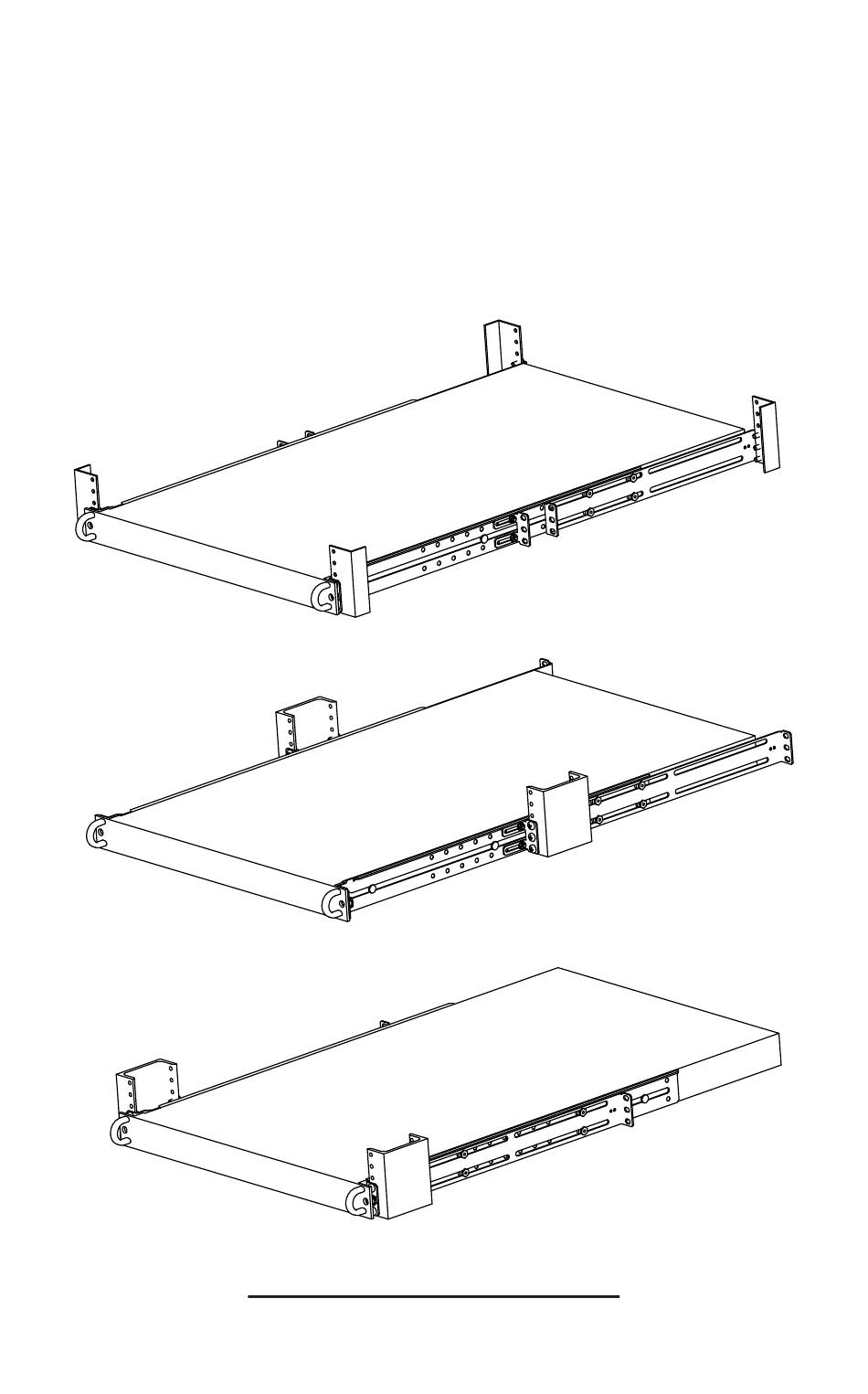

- Page 1 Patent(s) Pending 4Post and 2Post Rails for Dell PowerEdge Servers 4Post Page 2 2Post Center Page 4 2Post Flush Page 6 Installation Instructions Kit P/N: 1UBRK-R300...
- Page 2 (12) 10-32 x .500 Pan Head (12) 12-24 x .500 Pan Head (6) 2-24 Cage Nut 4Post Installation Instructions Step 1. Install cage nuts as shown at the front and rear of a square hole rack: (10) 12-24 black cage nuts.
- Page 3 4Post Installation Instructions Step 3. Attach the front and rear of both rails to the rack using supplied screws at each rail end: Tighten the front and rear Pan Head Screws on the right side rail. Leave the front and rear Pan Head Screws on the left side rail slightly loose.
- Page 4 2Post Center Installation Instructions Step 1. Installing Rail Kit: Installing this rail kit in a 2Post center rack may require a change to the pre-assembled rail configuration as follows (Note: this may require a 3/8” wrench or ratchet). Angle Brackets Range 3"...
- Page 5 2Post Center Installation Instructions Step 4. Install the equipment using two people: With one person on each side of the equipment, slide the equipment onto the rails so the Equipment Mounting Lugs on each side slide into the Rail Slot on both sides. Slide the equipment all the way in.
- Page 6 2Post Flush Installation Instructions Step 1. Install Rails: Installing this rail kit in a 2Post flush rack requires a change to the pre-assembled rail configuration as follows: remove and discard the Angle Brackets and associated hardware from the pre-assembled rails. (Note: this will require a 3/8”...
- Page 7 2Post Flush Installation Instructions Step 3. Install the equipment using two people: With on person on each side of the equipment, slide the equipment onto the rails so the Equipment Mounting Lugs on each side slide into the Rail Slot on both sides. Slide the equipment all the way in.
- Page 8 Warranty Statement Innovation First, Inc. warrants our products against defects in material and workmanship for a period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to repairing or replacing, at our option, any defective product.
