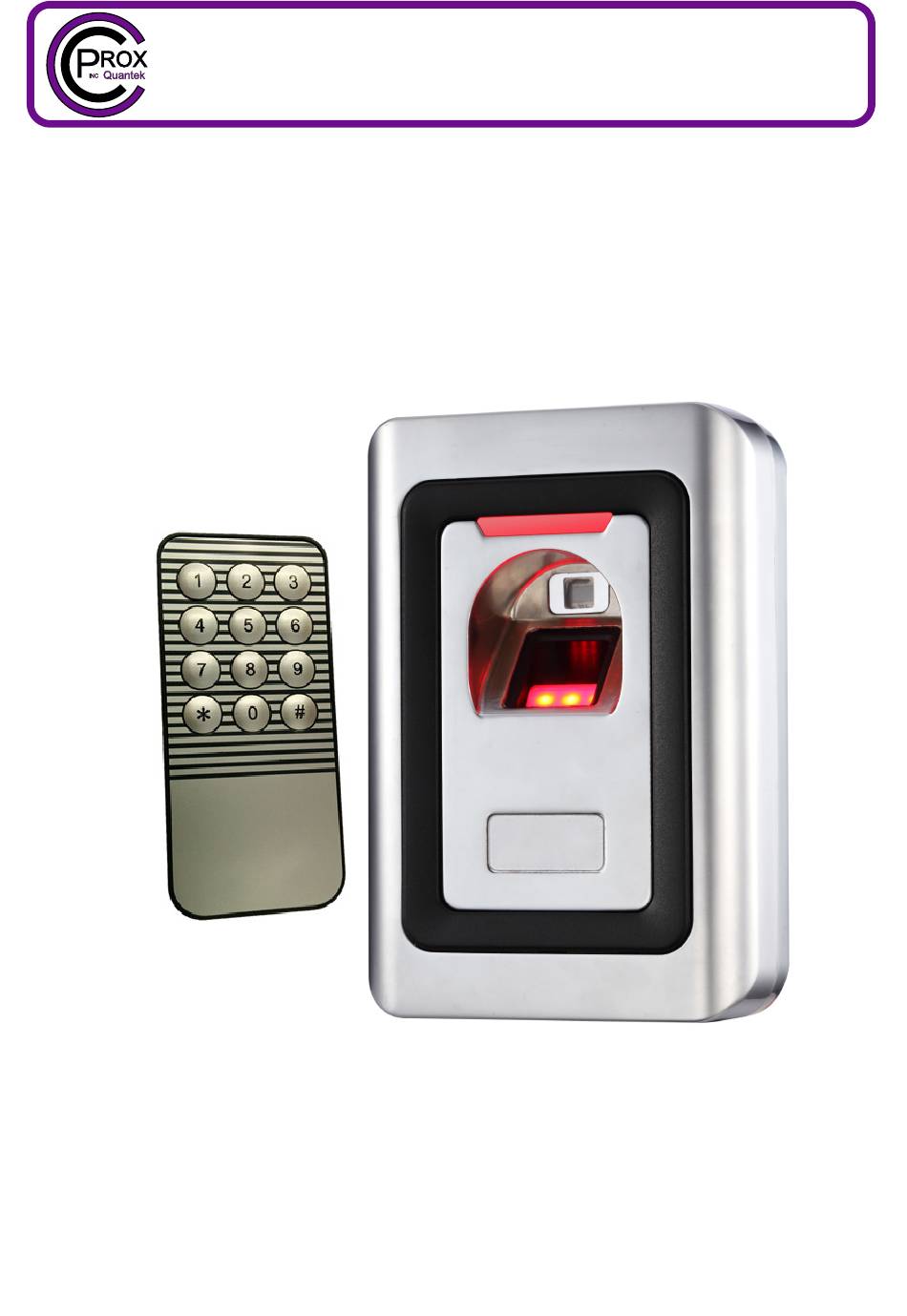

- Page 1 C Prox Ltd (inc Quantek) 59 Sheffield Road, Dronfield, S18 2GF +44(0)1246 417113 sales@cproxltd.com www.quantek.co.uk Fingerprint Access Control FP1-PROX User Manual Please read the manual carefully before installing this unit...
-
Page 2: Packing List
Please ensure that all the above contents are correct. If any are missing please notify us immediately. 2. Description The FP1-PROX is a standalone or Wiegand fingerprint and EM RFID card reader for access control. It uses the American Atmel’s MCU, with precise electron circuit and productive technology. This unit applies world advanced fingerprint identification technology, making it safe and reliable, which means it is an ideal choice for situations demanding high security. -
Page 3: Specification
4. Specification Input voltage 12V dc ± 10% Sleeping current consumption ≤20mA Idle current consumption ≤80mA Operating temperature -20 to 50⁰C Operating humidity 20% to 95% RH User capacity 1000 fingerprints, 2000 cards Card type EM 125KHz Reading distance 3-6cm Resolution 450 DPI Fingerprint input time... - Page 4 6. Wiring Colour Function Description Green Wiegand output D0 White Wiegand output D1 Grey Alarm- Alarm negative Yellow OPEN Exit button Brown D_IN Door contact 12V + 12V + DC regulated power input Black 12V – DC regulated power input Blue GND for exit button and door contact Purple...
-
Page 5: Sound And Light Indication
7. To reset to factory default a. Disconnect power from the unit. b. Press and hold the ‘Reset’ button on the PCB whilst powering the unit back up, unit you hear two short beeps and the LED shines yellow. c. Then read two proximity cards, the LED will turn red, system is now back to factory default d. -
Page 6: By Remote Control
9.2 By remote control 9.2.1 Enter into programming mode .Master code. .#. Default master code is 888888 All the steps below must be done after entering into programming mode. 9.2.2 Add users A. ID number – Auto generation To add fingerprint users: .Input fingerprint twice. -
Page 7: Delete All Users
9.2.4 Delete users by ID number number. .#. When deleting users this way, the master can just delete the ID number without the need to input the fingerprint or present the card, therefore making it a good option if users have left or lost cards. 9.2.5 Save and exit programming mode: 9.3 By manager fingerprint 9.3.1 Enter into programming mode... - Page 8 9.5 Setting facility code .3. .0-255. .#. This operation may be required when FP1-PROX is acting as a Wiegand reader and connecting to a multi door controller 9.6 Setting lock type and door relay time Fail secure (unlock when power on) .Master...
-
Page 9: Remove Alarm
11. Advanced applications 11.1 FP1-PROX works as a slave reader, connecting to a controller FP1-PROX supports Wiegand output. It can be connected to a controller which supports Wiegand 26 input as its slave reader, connections as shown in the following diagram: If the controller has a PC connection, the users ID can be shown in the software. - Page 10 11.3 Two devices interconnected – Single door Wiegand output, Wiegand input: One FP1-PROX installed inside the door, another outside the door. Either device acts as the controller and reader at the same time. It has the following features: • Users can be enrolled on either device.
- Page 11 12. Issue record Site Door location User ID number Card/fob number User name Issue date...
