U S E R M A N U A L – B E D I E N U N G S A N L E I T U N G
RND 320-KA3305P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 320-KA3305P and is the answer not in the manual?

Questions and answers

Summary of Contents for RND 320-KA3305P

  • Page 1 U S E R M A N U A L – B E D I E N U N G S A N L E I T U N G RND 320-KA3305P...
  • Page 2 Safety Symbols This chapter contains important safety instructions that you must follow when operating the RND 320-KA3305P model and when keeping it in storage. Read the following before any operation to insure your safety and to keep the best condition for the RND 320-KA3305P model.
  • Page 3 RND 320-KA3305P USER MANUAL Safety Instruction Safety Guidelines • Do not block or obstruct the cooling fan vent opening. • Avoid severe impacts or rough handling that leads to damage. • Do not discharge static electricity. • Do not disassemble unless you are qualified as service personnel.

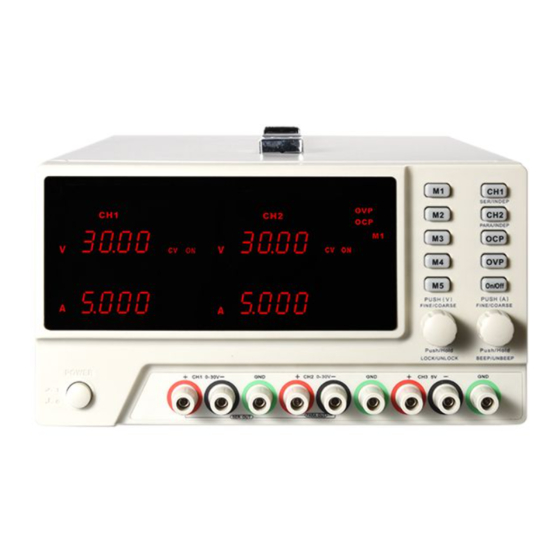

  • Page 4 • Make sure the cause of fuse blowout is fixed before fuse replacement. Introduction RND 320-KA3305P are multiple-channel digital control and programmable power supplies, which reflect a variety of features about digital control, such as the fast recall, and the parameters setting of Overcurrent Protection and Overvoltage Protection independently to provide the convenient and reliable operation environment.
  • Page 5 RND 320-KA3305P USER MANUAL Front Panel Overview...
  • Page 6 Function Introduction 1 The Operation and Outputs of Voltage and Current 1. Press the button CH1 and then the CH1 display indicator blinks; press CH1 again and then some voltage digit on the channel 1 blinks. At this time, the voltage value can be set by adjusting the voltage adjustment knob.
  • Page 7 RND 320-KA3305P USER MANUAL 2 The Series and Parallel Operation 1. THE SERIES OPERATION: Press and hold the button CH1 for 3 seconds to be in the series mode. When the SER indicator on the display lights on, it means the power supply is in the series mode now.
  • Page 8 3 Recall to output In any state, just press the buttons M1 M5 and then the according memories can be recalled. 4 The Operation of Overcurrent Protection Press and hold the button “OCP” for 3 seconds to enter the mode of OCP setting, when the indicator “OCP SET”...
  • Page 9 RND 320-KA3305P USER MANUAL 6 Keyboard Lock Press and hold the voltage adjustment knob for 3 seconds, and then the front panel will be locked; press and hold it again for 3 seconds, and then it will be unlocked. 7 Beep ON/OFF Press and hold the current adjustment knob for 3 seconds, and then the beep will be turned off.
  • Page 10 • Data bit: 8 • Stop bit: 1 • Data flow control: None The Definition of Interface RS232 RND 320-KA3305P POWER SUPPLY Functionality check Run this query command via the terminal application such as MTTTY (Multi-threaded TTY). *DIN? This should return the identification information: Manufacturer,...
  • Page 11 RND 320-KA3305P USER MANUAL RND 320-KA3305P model Remote Control Syntax V2.0 Command format: VSET<X>:<NR2> 1. VSET: command header 2. X: output channel 3. : separator 4. NR2: parameter Command Details: 1. LOCK<NR2> Description: LOCK or UNLOCK the front panel Example: LOCK1...
  • Page 12 5. VSET<X>? Description: Returns the output voltage setting. Example: VSET1? Returns the CH1 voltage setting 6. IOUT<X>? Description: Returns the actual output current. Example: IOUT1? Returns the CH1 output current 7. VOUT<X>? Description: Returns the actual output voltage. Example: VOUT1? Returns the CH1 output voltage 8.
  • Page 13 RND 320-KA3305P USER MANUAL 11. *IDN? Description: Returns the KA3005P identification. Example: * IDN? Contents KORAD KD3005P V2.0 (Manufacturer, model name,). 12. RCL<NR1> Description Recalls a panel setting. 13. SAV<NR1> Description: Stores the panel setting. NR1 1 5: Memory number 1 to 5 Example: SAV1 Stores the panel setting in memory number 1 14.
  • Page 14 Specifications Note: The specifications below are tested under the conditions of temperation 25°C to -5 °C and the warm-up for 20 minutes. RND 320-KA3305P- Model VOLTAGE RANGE 0 - 30 V CURRENT RANGE 0 - 5 A LOAD REGULATION ≤ 0.01% +5 mV VOLTAGE RANGE ≤...
  • Page 15 And all rights are reserved. The information in this manual is corre ct when printing. However, RND will continuously improve products and reserve the rights to change specifications, equipment, and maintenance procedures at any time...
  • Page 16 Deutsch Sicherheitssymbole Diese Sicherheitssymbole können in diesem Handbuch oder in der Serie erscheinen. WARNUNG GEFAHR Hochspannung Earth (ground) Terminal...
  • Page 17: Table Of Contents

    RND 320-KA3305P — BEDIENUNGSANLEITUNG Inhalt Beschreibung und Funktion................18 Bestimmungsgemäßer Einsatz ..............18 Sicherheits-, Service- und Betriebshinweise ..........18 Bedien-, Anschluss- und Anzeigeelemente ..........19 Inbetriebnahme und Betrieb ................ 21 5.1 Aufstellung ....................21 5.2 Inbetriebnahme .................... 21 5.3 Ausgangswerte einstellen ................21 5.4 Speicher einsetzen ..................
  • Page 18: Beschreibung Und Funktion

    5 Speicher für schnell abrufbare Strom-/Spannungseinstellungen sowie Schutzeinrich- tungen gegen Überspannung/Überstrom. Die Funktionen und die Ausstattung: • RND 320-KA3305D/P: 2 x 0-30 V/0-5 A, Ausgänge in Reihe und parallel betreibbar, zusätzlich Festspannungsausgang 5 V/3 A • Feine Einstellung von Spannung/Strom (10 mV/1 mA) •...
  • Page 19: Bedien-, Anschluss- Und Anzeigeelemente

    RND 320-KA3305P — BEDIENUNGSANLEITUNG • Das Gerät ist kein Spielzeug, es gehört nicht in Kinderhände. Es enthält heiße, kleine und verschluckbare Teile sowie Kabel, die Strangulierungsgefahren bergen. • Lassen Sie Verpackungsmaterialien nicht achtlos liegen, diese können für spielende Kind- er zu einer Gefahr werden.
  • Page 21: Inbetriebnahme Und Betrieb

    RND 320-KA3305P — BEDIENUNGSANLEITUNG 5. Inbetriebnahme und Betrieb 5.1 Aufstellung • Stellen Sie das Gerät so auf, dass ringsum eine gute Luftzirkulation gewährleistet ist und es nicht längere Zeit eine Wärmequelle (Heizung, direkte Sonnenbestrahlung) ausgesetzt ist. 5.2 Inbetriebnahme • Trennen Sie eine eventuell angeschlossene Last vom Netzgerät.
  • Page 22: Last An- Und Ausschalten

    5.5 Last an- und ausschalten • Mit der Taste „Off/On” schalten Sie den Lastanschluss an das Netzgerät an oder ab. Im eingeschalteten Zustand leuchtet die Anzeige „ON”.. 5.6 Bedienelemente blockieren • Zur Vermeidung eines versehentlichen Verstellens oder unbefugter Bedienung drücken Sie den Spannungseinsteller für ca. 3 s, bis ein Quittungston ertönt. •...
  • Page 23: Serien-/Parallelschaltung

    RND 320-KA3305P — BEDIENUNGSANLEITUNG 5.10 Serien-/Parallelschaltung • Für die Serienschaltung der beiden regelbaren Teilnetzteile drücken Sie die Kanaltaste „CH1” so lange (ca. 3 s), bis die „SER”-Anzeige leuchtet. • Jetzt sind beide Kanäle in Serie geschaltet, wobei Kanal 2 (CH2) nun als Master und CH1 als Slave fungiert.
  • Page 24: Wartung, Lagerung Und Pflege

    7. Wartung, Lagerung und Pflege • Lagern Sie das Gerät sauber, kühl und trocken. • Reinigen Sie das Gerät nur mit einem trockenen Leinentuch. Nicht zu stark auf die Front- platte drücken! Bei stärkeren Verschmutzungen kann das Reinigungstuch leicht mit Wasser angefeuchtet sein. Keine Reinigungsmittel und Chemikalien einsetzen! •...
  • Page 25: Technische Daten

    Übersetzungen in eine andere Sprache sind, sofern nicht ausdrücklich bewilligt, nicht erlaubt. Alle Rechte vorbehalten. Die Informationen sind zum Zeitpunkt des Druckes korrekt. Da wir jedoch die RND Produkte kontinuierlich verbessen behalten wir uns das Recht vor, Eigenschaften an Geräten, Ausrüstungen sowie Wartungsabläufe...
  • Page 26 Distrelec Group AG Grabenstrasse 6, CH-8606 Nänikon...
