Summary of Contents for RND 320-KA3005D

  • Page 1 U S E R M A N U A L – B E D I E N U N G S A N L E I T U N G RND 320-KA3000 Series...
  • Page 2 Safety Symbols This chapter contains important safety instructions that you must follow when operating the RND 320-KA3000 series and when keeping it in storage. Read the following before any operation to insure your safety and to keep the best condition for the RND 320-KA3000 series.
  • Page 3 RND 320-KA3000 — SERIES USER MANUAL Safety Instruction Safety Guidelines • Do not block or obstruct the cooling fan vent opening. • Avoid severe impacts or rough handling that leads to damage. • Do not discharge static electricity. • Do not disassemble unless you are qualified as service personnel.
  • Page 4 Fuse MODEL 220/230 V RND 320-KA3005D T3 A/250 V RND 320-KA3005P • To ensure fire protection, replace the fuse only with the specified type and rating. • Disconnect the power cord before fuse replacement. • Make sure the cause of fuse blowout is fixed before fuse replacement.

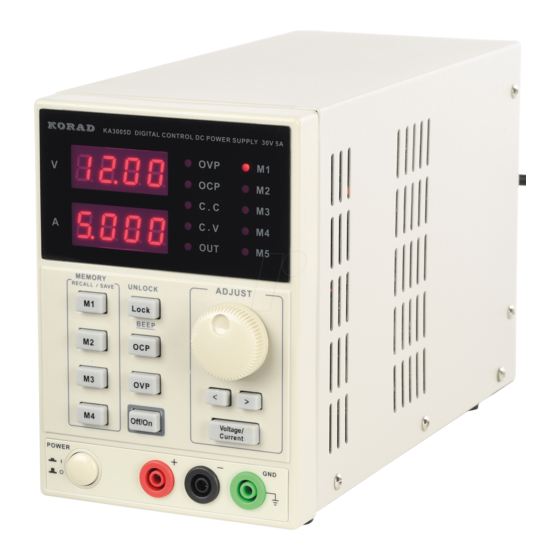

  • Page 5 RND 320-KA3000 — SERIES USER MANUAL Front Panel Overview Over-Volt Protection Active Display of voltage Over-current Protection Active & current value Constant Current Mode Power Supply Indicator Constant Voltage Mode Output On/Off Indicator Setting Memory Indicator Front Panel lock_Out Function Rapid Adjustment Knob Over_current Protect On/Off for Voltage &...
  • Page 6 OCP is OCP indicator. When overcurrent function is turned on, indicator lights on. C.C is constant current indicator. When power supply is in the mode of constant current, this light is on. C.V is constant voltage indicator. When power supply is in the mode of constant voltage, this light is on.
  • Page 7 RND 320-KA3000 — SERIES USER MANUAL Front panel LOCK function. For details, see Page 11. Over-Current protect on/off,. Pressing this button for more than 2 secends will make beep On/OFF. Over-votage Protect On/Off Output On/Off Voltage-Current Setting Adjustment Digit Selector Buttons Selection Voltage / Current for Adjustment Pressing the button, the volt indicator starts to blink;...
  • Page 8 Label on Voltage & Fuse Power Socket USB Interface (only RND 320-KA3005P model) RS232 Interface (only RND 320-KA3005P model) USB dependent interface bas ed on remote control order (see Page 14); only for 320-KA3005P model. RS232 dependent interface based on remote control order (see Page 14);...
  • Page 9 RND 320-KA3000 — SERIES USER MANUAL Operation Connect AC power cord Connecting AC power cord and selecting the corresponding AC voltage according to the back label on voltage; then connecting the AC power cord to the socket on the back panel.
  • Page 10 Beep On / Off Panel Operation By default, the beep sound is enabled. To turn off he beep, press the OCP (BEEP) button for 2 seconds. A beep comes out and the beep setting will be turned off. To enable the beep, press the OCP (BEEP) button again for 2 seconds. Front Panel Lock Panel operation Press the LOCK button to lock the front panel button operation.
  • Page 11 RND 320-KA3000 — SERIES USER MANUAL Contents The following list shows the setup contents: • Fine / coarse knob editing mode • Beep on / off • Output voltage / current level The following settings are always saved as «off»: • Output on / off •...
  • Page 12 Remote Control for RND 320-KA3005P Remote Control Setup Only RND 320-KA3005P can be connected to the PC through interfaces USB/RS232 on the back of the machine and controlled by the remote control. COM setting Functionality check Set up the COM port inside...
  • Page 13 RND 320-KA3000 — SERIES USER MANUAL Exiting from the Remote Control Mode 1. Close the remote control software. 2. Disconnect USB from the back. 3. The power supply disconnects; a tweet from the beep with the hint that the remote control is over.
  • Page 14 Specifications Note: The specifications below are tested under the conditions of temperation 25°C to -5 °C and the warm-up for 20 minutes. RND 320-KA3005P/D- Model VOLTAGE RANGE 0 - 30 V CURRENT RANGE 0 - 5 A LOAD REGULATION ≤ 0.01% +2 mV VOLTAGE RANGE ≤...
  • Page 15 And all rights are reserved. The information in this manual is corre ct when printing. However, RND will continuously improve products and reserve the rights to change specifications, equipment, and maintenance procedures at any time...
  • Page 16 Deutsch Sicherheitssymbole Diese Sicherheitssymbole können in diesem Handbuch oder in der Serie erscheinen. WARNUNG GEFAHR Hochspannung Earth (ground) Terminal...
  • Page 17: Table Of Contents

    RND 320-KA3000 — BEDIENUNGSANLEITUNG Inhalt Beschreibung und Funktion................18 Bestimmungsgemäßer Einsatz ..............18 Sicherheits-, Service- und Betriebshinweise ..........18 Bedien-, Anschluss- und Anzeigeelemente ..........19 Inbetriebnahme und Betrieb ................ 20 5.1 Aufstellung ....................20 5.2 Inbetriebnahme .................... 20 5.3 Ausgangswerte einstellen ................20 5.4 Speicher einsetzen ..................
  • Page 18: Beschreibung Und Funktion

    Strom-/Spannungseinstellungen sowie Schutz einrichtungen gegen Überspannung/Überstrom. Die Funktionen und die Ausstattung: • RND 320-KA3005D: 0-30 V/0-5 A; RND 320-KA3005P: 0-30 V/0-5 A, USB/RS232-Schnittstelle • Feine Einstellung von Spannung/Strom (10 mV/1 mA) • Große LED-Anzeige für Ausgangswerte, gerätestatus und Speicher •...
  • Page 19: Bedien-, Anschluss- Und Anzeigeelemente

    RND 320-KA3000 — BEDIENUNGSANLEITUNG Sicherheit zuständige Person beaufsichtigt oder erhielten von ihr Anweisungen, wie das Gerät zu benutzen ist. • Das Gerät ist kein Spielzeug, es gehört nicht in Kinderhände. Es enthält heiße, kleine und verschluckbare Teile sowie Kabel, die Strangulierungsgefahren bergen.
  • Page 20: Inbetriebnahme Und Betrieb

    Lüfter Sicherungstyp/ -größe Netzanschluss USB-Port mit Sicherung (nur RND 320-KA3005P Model) RS232-Anschluss (nur RND 320-KA3005P Model) Nur mitgeliefertes Netzkabel einsetzen! 5. Inbetriebnahme und Betrieb 5.1 Aufstellung • Stellen Sie das Gerät so auf, dass ringsum eine gute Luftzirkulation gewährleistet ist und es nicht längere Zeit eine Wärmequelle (Heizung, direkte Sonnenbestrahlung) ausgesetzt...
  • Page 21: Speicher Einsetzen

    RND 320-KA3000 — BEDIENUNGSANLEITUNG • Stellen Sie dann mit dem Adjust-Steller und den Fein-/Grob-Einstelltasten den jeweiligen Spannungs- oder Stromwert ein. • Das Gerät wechselt im betrieb automatisch zwischen Konstantspannungs- und Konstantstrombetrieb, jeweils angezeigt von den Anzeigen „CV/CC”. • Zunächst ist immer Konstantspannungsbetrieb (CV) eingestellt, bis der entnommene Strom die eingestellte Stromgrenze erreicht.
  • Page 22: Pc-Anschluss

    • Bei Überschreiten der Höchstspannung am Geräteausgang wird dieser nun sofort abgeschaltet. Die Anzeige „OVP” blinkt. • Nach Trennen der Last vom Gerät kontrollieren Sie dessen Funktion und stellen es durch erneutes Drücken der Taste „OVP” wieder zurück. Die Anzeige „OVP” verlischt. Überstromschutz •...
  • Page 23: Wartung, Lagerung Und Pflege

    RND 320-KA3000 — BEDIENUNGSANLEITUNG • Schalten Sie dann den Lastausgang mit dem Button „ON” (OUTPUT) rechts unten im Programmfenster ein. • Der Verlauf von Spannung und Strom wird automatisch in den beiden Grafikfenstern und in der Tabelle darunter aufgezeichnet. • Oben im Programmfenster kann der Überstromschutz des Gerätes nach Einstellung des Höchststroms zu- und abgeschaltet werden.
  • Page 24: Technische Daten

    Übersetzungen in eine andere Sprache sind, sofern nicht ausdrücklich bewilligt, nicht erlaubt. Alle Rechte vorbehalten. Die Informationen sind zum Zeitpunkt des Druckes korrekt. Da wir jedoch die RND Produkte kontinuierlich verbessen behalten wir uns das Recht vor, Eigenschaften an Geräten, Ausrüstungen sowie Wartungsabläufe...
  • Page 26 Distrelec Group AG Grabenstrasse 6, CH-8606 Nänikon...
