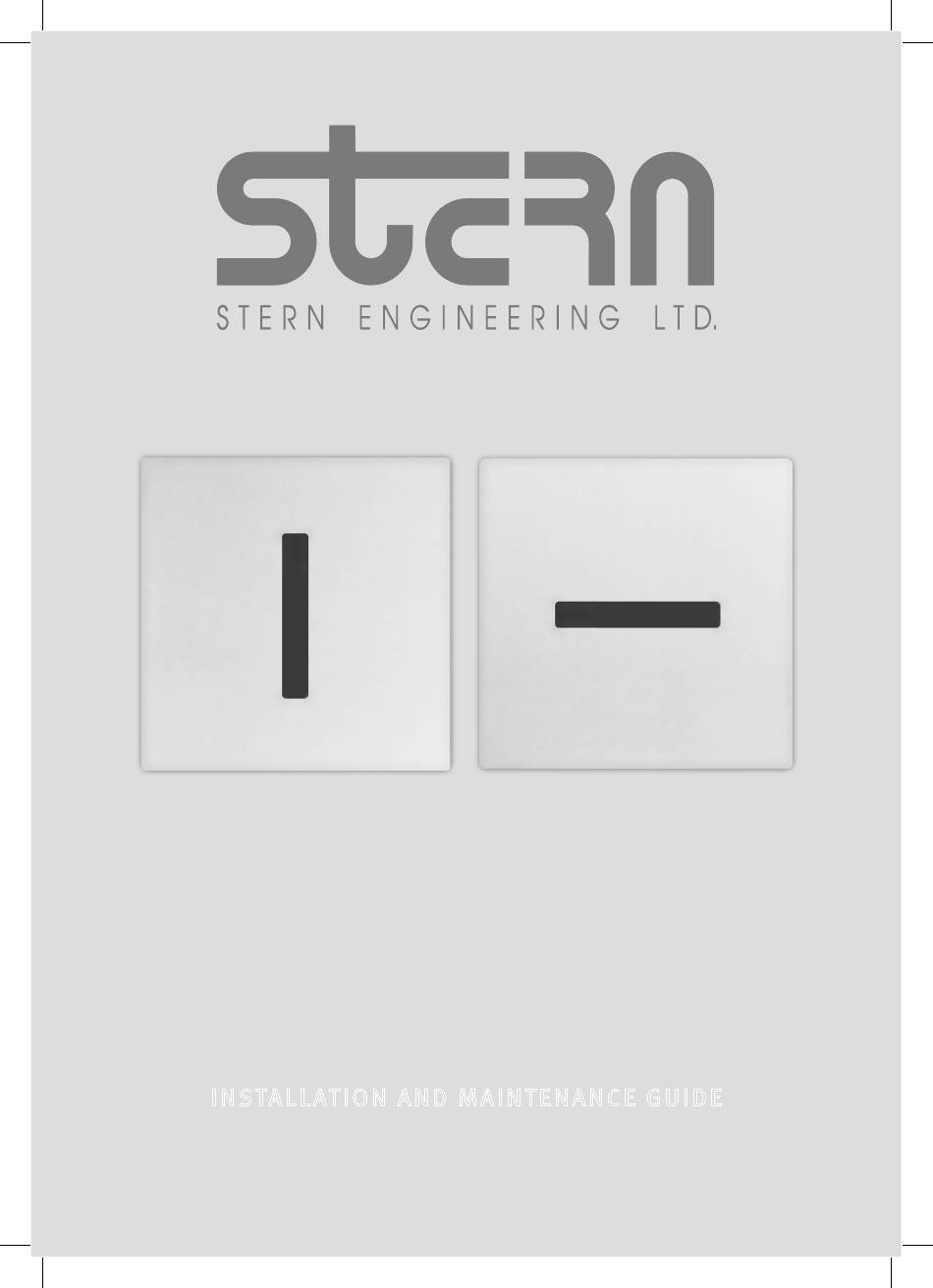

- Page 1 E L E C T R O N I C F L U S H V A LV E F O R U R I N A L S JUPITER 2040 I N STA L L AT I O N A N D M A I N T E N A N C E G U I D E...
-
Page 2: Table Of Contents
ADJUSTING THE SETTINGS WITH A REMOTE CONTROL ADJUSTING THE SENSOR RANGE MANUALLY MAINTENANCE SPARE PARTS LIST WARRANTY TROUBLE-SHOOTING OPERATION Jupiter 2040 is a touch free electronic flush valve for urinal operated by sensor. Water will start flushing once the user moves away from the urinal. -
Page 3: Technical Data
JUPITER 2040 H 125910 JUPITER 2040 E 125901 JUPITER 2040 HE 125911 Jupiter 2040 / 2040 H: internal 9V alkaline battery Power supply Jupiter 2040 E / 2040 HE: 9V switching transformer Operating water pressure: 0.5-8.0 bar Hygiene flush: 24 hours automatic flush after last use. - Page 4 PACK CONTENTS - JUPITER 2040 Familiarize yourself with the part names and confirm that the parts are included: 1 x Box assembly with concealed flush valve 1 x Plastic seat for the cover plate 1 x Wall cover plate with...
-
Page 5: Pack Contents
PACK CONTENTS - JUPITER 2040 H Familiarize yourself with the part names and confirm that the parts are included: 1 x Box assembly with concealed flush valve 1 x Plastic seat for the cover plate 1 x Wall cover plate with... -
Page 6: Pre-Installation Info
PRE-INSTALLATION INFO CHECK CONTENTS Separate all parts from packaging and check each part with the pack contents section. Make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install the electronic flush valve until you obtain the missing parts. - Page 7 INSTALLATION STEP 1 – INSTALLING THE FLUSH VALVE Shut off the water supply. Cut an adequate opening in the wall for the dimensions of the box and the corrugated tube (for E versions, not supplied). Insert the electronic flush valve box through the opening.
- Page 8 INSTALLATION STEP 1 – INSTALLING THE FLUSH VALVE Turn on the water supply. Make sure there is no leakage. Assemble the mud guard cover to protect the flush valve. Note the MIN and MAX marks on the box. STEP 2 – CONNECTING THE POWER SOURCE Once the electricity, plumbing and tile works are finished, cut the mud guard cover wherever...
- Page 9 INSTALLATION If your model is Jupiter 2040, assemble the battery box inside the box and proceed to clause If your model is Jupiter 2040E, place the transformer near the electricity plug and insert the transformer cable wire through the box.
- Page 10 INSTALLATION STEP 2 – CONNECTING THE POWER SOURCE Connect the electronic unit connectors to the solenoid valve connector and the power source connector. STEP 3 – COMPLETING THE INSTALLATION Assemble the panel to the cover seat and lock it with the bottom screw.
- Page 11 INSTALLATION Remove the protecting sticker that covers the sensor. IMPORTANT: WAIT A FEW SECONDS BEFORE ACTIVATING THE FLUSH VALVE TO AVOID ENTERING INTO “ADJUSTING MODE”. Move away and the flush valve will flush a few seconds after your departure. If needed adjust the flow capacity by turning the regulating valve.
-
Page 12: Battery Replacement Instructions
BATTERY REPLACEMENT Battery replacement instructions – Jupiter 2040 only When the battery weakens, the red indicator light will blink at a constant rate. The battery must be replaced within two weeks. To replace the battery: Release the screw at the bottom of the cover plate and remove the cover plate. -
Page 13: Settings Adjustment
SETTINGS ADJUSTMENT WITH REMOTE CONTROL DETECTION RANGE DELAY OUT TIME TEMPORARY OFF DELAY IN TIME FUNCTION SECURITY TIME RESET LOCK OUT TIME ADJUSTING THE SETTINGS WITH THE REMOTE CONTROL If necessary, the sensor settings can be adjusted as following: Shut off the water supply. In order to adjust the sensor with the remote control, hold the remote control straight in front of the sensor in a distance of about 6-8”... -
Page 14: Settings Adjustment
SETTINGS ADJUSTMENT WITH REMOTE CONTROL FLOW TIME: This function determines the water flushing time once the user leaves the urinal. Press the two waves button. Wait until a quick flashing of the red light of the sensor eye is perceived. Then, press + to increase the flow time and –... -
Page 15: Adjusting The Sensor Range Manually
RANGE ADJUSTMENT The sensor range is the range an object can be away from the sensor in order to activate the flush valve. The sensor is factory preset. If necessary, it can be adjusted as follows: Adjusting the sensor range manually: 1. -
Page 16: Maintenance
MAINTENANCE Filter cleaning instructions This flush valve is provided with a stainless steel filter preventing foreign particles to enter the lines. If the water flow has decreased, this may be because the filter is clogged. The filter can be cleaned as follows: 1. -
Page 17: Spare Parts List
SPARE PARTS LIST Panel Kit Jupiter 2040, 2040E 07040214 Panel Kit Jupiter 2040H, 2040HE 07040227 10-pack Sensor Kit Jupiter 2040 07220345 8-Pack Solenoid & Housing Kit 07221103 Nipple Kit 07246002 Filter 08530013 Switching transformer 06522097... -
Page 18: Warranty
If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments. -
Page 19: Trouble-Shooting
TROUBLESHOOTING PROBLEM INDICATOR CAUSE SOLUTION Valve does Sensor flashes Low battery. Replace battery. not flush continuously when user steps within the sensor range. Red light in the 1. Range is too short. Increase the range. sensor does not flash when user 2. - Page 20 15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel Tel: 972-8-9326000, Fax: 972-8-9326025, export@sternfaucets.com www.sternfaucets.com 01.16 01500281...
