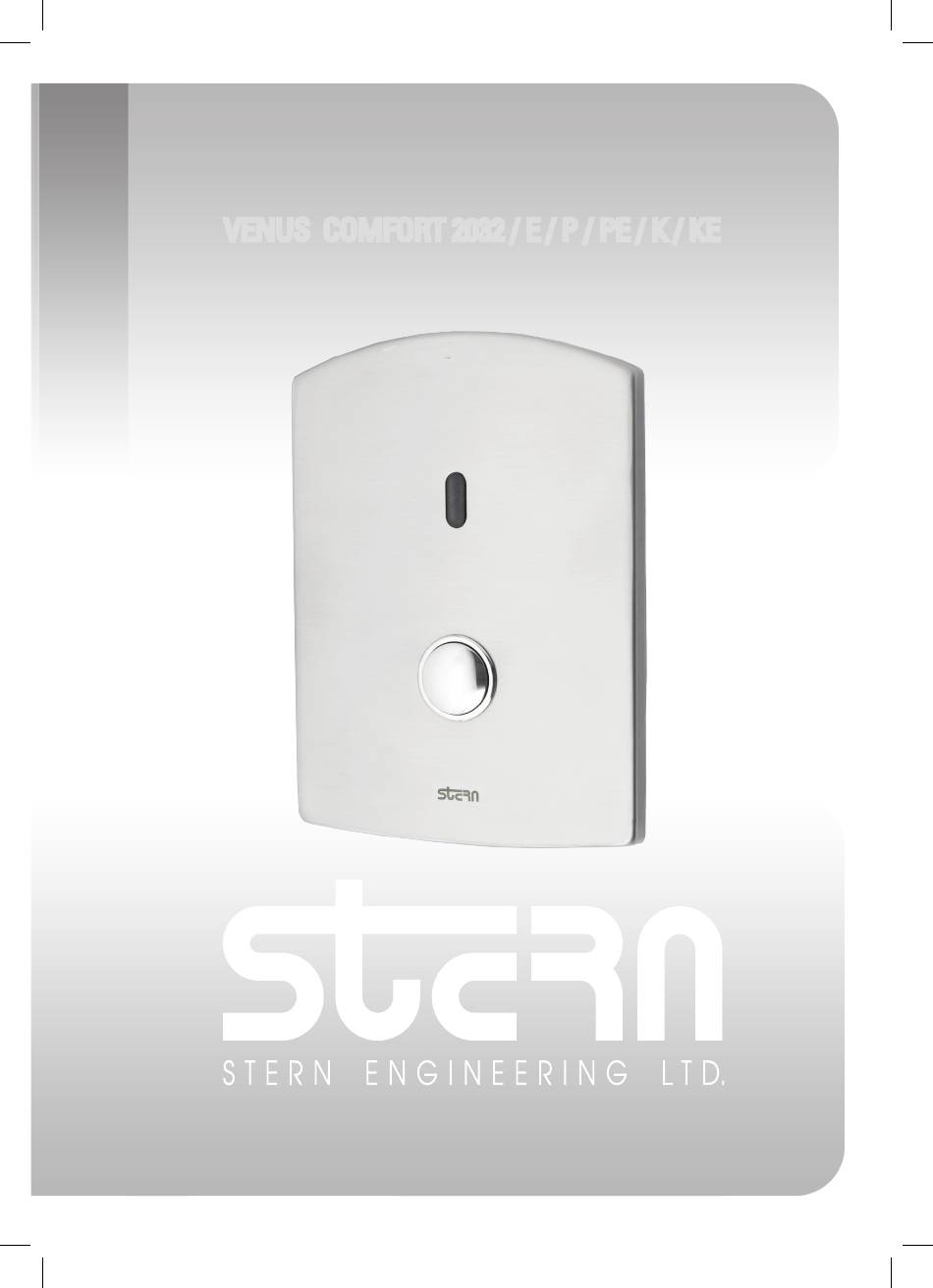

INSTALLATION AND MAINTENANCE GUIDE
VENUS COMFORT 2032 / E / P / PE / K / KE
E L E C T R O N I C F L U S H V A LV E F O R W C
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VENUS COMFORT 2032 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stern Engineering VENUS COMFORT 2032

  • Page 1 INSTALLATION AND MAINTENANCE GUIDE VENUS COMFORT 2032 / E / P / PE / K / KE E L E C T R O N I C F L U S H V A LV E F O R W C...
  • Page 2 I N DEX TECHNICAL DATA PACK CONTENTS Venus Comfort 2032 \ E (PN: 410562 \ 410541) Venus Comfort 2032 P \ PE (PN: 410576 \ 410546) Venus Comfort 2032 K \ KE (PN: 800206 \ 800218) PRE-INSTALLATION INFO 6-11 INSTALLATION...
  • Page 3: Technical Data

    TE CHN ICAL DATA 9V low voltage system Power specification: Power Supply: Internally mounted 9V battery or 9V transformer Optional : 6 x 1.5 AA batteries 1.0-8.0 bar (14.5 – 116.O PSI). Operating water pressure: With water pressure of more than 8 Bars, use a pressure reducing valve for reduction.
  • Page 4: Pack Contents

    PACK CONTENTS VENUS COMFORT 2032 / 2032 E Familiarize yourself with the part names and confirm that the parts are included: 1 x Plastic box with concealed flush valve 1 x Mud guard cover 1 x Allen key 1 x Plastic seat...
  • Page 5 PACK CONTENTS VENUS COMFORT 2032 P / 2032 PE Familiarize yourself with the part names and confirm that the parts are included: 1 x Plastic box with concealed flush valve 1 x Mud guard cover 1 x Plastic seat for the cover plate...
  • Page 6 VENUS COMFORT 2032 K / KE WITH IRON FRAME 1 x Iron frame and accessoires 1 x Plastic box with concealed flush valve 1 x Plastic seat for the cover plate 1 x Wall cover plate 1 x Wall cover plate...
  • Page 7: Pre-Installation Info

    PRE–INSTALLATION INFO Check contents Separate all parts from packaging and check each part with the pack contents section. Make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install the electronic flush valve until you obtain the missing parts.
  • Page 8: Installation

    INSTALLATION VENUS COMFORT 2032 / 2032 E Step 1 – Installing the flush valve and connecting the water supply 1) Shut off the water supply. 2) Cut an adequate opening in the wall for the dimensions of the box and the sleeve (not supplied).
  • Page 9 INSTALLATION VENUS COMFORT 2032 / 2032 E 5) Connect the other electronic unit connector to the power supply (battery or transformer). 6) Before you assemble the wall cover panel, consider to use the provided adjusting screw in order to optimize the operation of the mechanical button.
  • Page 10 INSTALLATION VENUS COMFORT 2032 P Step 1 – Installing the flush valve and connecting the water supply 1) Shut off the water supply. 2) Cut an adequate opening in the wall for the dimensions of the box and the sleeve (not supplied).
  • Page 11 INSTALLATION VENUS COMFORT 2032 P 4) Insert the battery into the battery box. 5) Assemble the panel to the cover seat. Do not tighten the bottom screw yet. 6) Remove the protective sticker covering the sensor and move away from the sensor range.
  • Page 12 INSTALLATION VENUS COMFORT 2032 PE Step 1 – Installing the flush valve and connecting the water supply 1) Shut off the water supply. 2) Cut an adequate opening in the wall for the dimensions of the box and the sleeve (not supplied).
  • Page 13 INSTALLATION VENUS COMFORT 2032 PE 4) Assemble the panel to the cover seat and tighten it with the bottom screw. 5) Remove the protective sticker covering the sensor. 6) Connect the electronic unit connector that leads to the power source to the battery back up device connector.
  • Page 14 R A N GE ADJUSTMENT The sensor range is the greatest distance that an object can be away from the sensor to activate the flush valve. The sensor is factory preset. If necessary, it may be adjusted as follows: Adjusting the sensor range: 1) If your model is a battery operated model, disconnect the battery from the sensor.
  • Page 15: S Etting S Adjustment

    S ETTING S ADJUSTMENT DELAY OUT TIME DETECTION RANGE DELAY IN TIME TEMPORARY OFF FUNCTION FULL FLOW TIME R E S E T Adjusting the sensor range with the remote control In order to adjust the sensor with a Remote Control you should hold the Remote Control straight in front of the sensor in a distance of about 6-8”...
  • Page 16 S ETT ING S ADJUSTMENT DETECTION RANGE: Only if necessary, use the remote control to adjust the sensor range as follows: Press the RANGE button. Wait until a quick flashing of the red light of the sensor eye is perceived. At this stage, you can increase or decrease the sensor range by pressing the (+) or the (-) buttons, every push will increase or decrease one level.
  • Page 17 S ETTING S ADJUSTMENT DELAY OUT TIME: This function allows modifying the time the flush valve will deliver water after the user leaves the W.C. In this case, a delay out time close to 0 will not give the user the possibility to be away from the sanitary.
  • Page 18: Battery Replacement

    BATTERY REPLACEMENT Battery replacement instructions – Venus Comfort 2032 / 2032 P When the battery weakens, the red indicator light will blink at a constant rate. The battery must be replaced within two weeks. Always use batteries from a reputable source. Poor quality batteries may affect the performance of the product.
  • Page 19: Maintenance

    MAINTENANCE Care and cleaning of chrome and special finishes DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives, or the like. Use of any prohibited cleaning or maintenance products or substances could damage the surface of the flush valve. For surface cleaning use ONLY soap and water, then wipe dry with clean cloth or towel.
  • Page 20: Warranty

    If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments.
  • Page 21: Spare Parts List

    Push button kit for panel ................. 07245003 Battery Box ....................06530008 Transformer ....................06522042 VENUS COMFORT 2032 P \ VENUS COMFORT 2032 PE Panel Kit (without sensor) ............... 07040140 Sensor Kit ....................07220078 Solenoid Valve Kit with Acetal Body ............07230015 Piston Kit ....................
  • Page 22: Troubleshooting

    TROUBLE – SHOOTING P R O B L E M I N D I C AT O R C A U S E S O L U T I O N The red LED indicator in the sensor blinks Low battery. Replace battery.
  • Page 23 TROUBLE – SHOOTING P R O B L E M C A U S E S O L U T I O N The self cleaning needle came out of the piston orifice or is displaced. The orifice delivers more water than usual Replace the piston.
  • Page 24 15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel Tel: 972-8-9326000, Fax: 972-8-9326025, export@sternfaucets.com www.sternfaucets.com...
