Closed Loop CLOey Operating Manual page 6

Installation

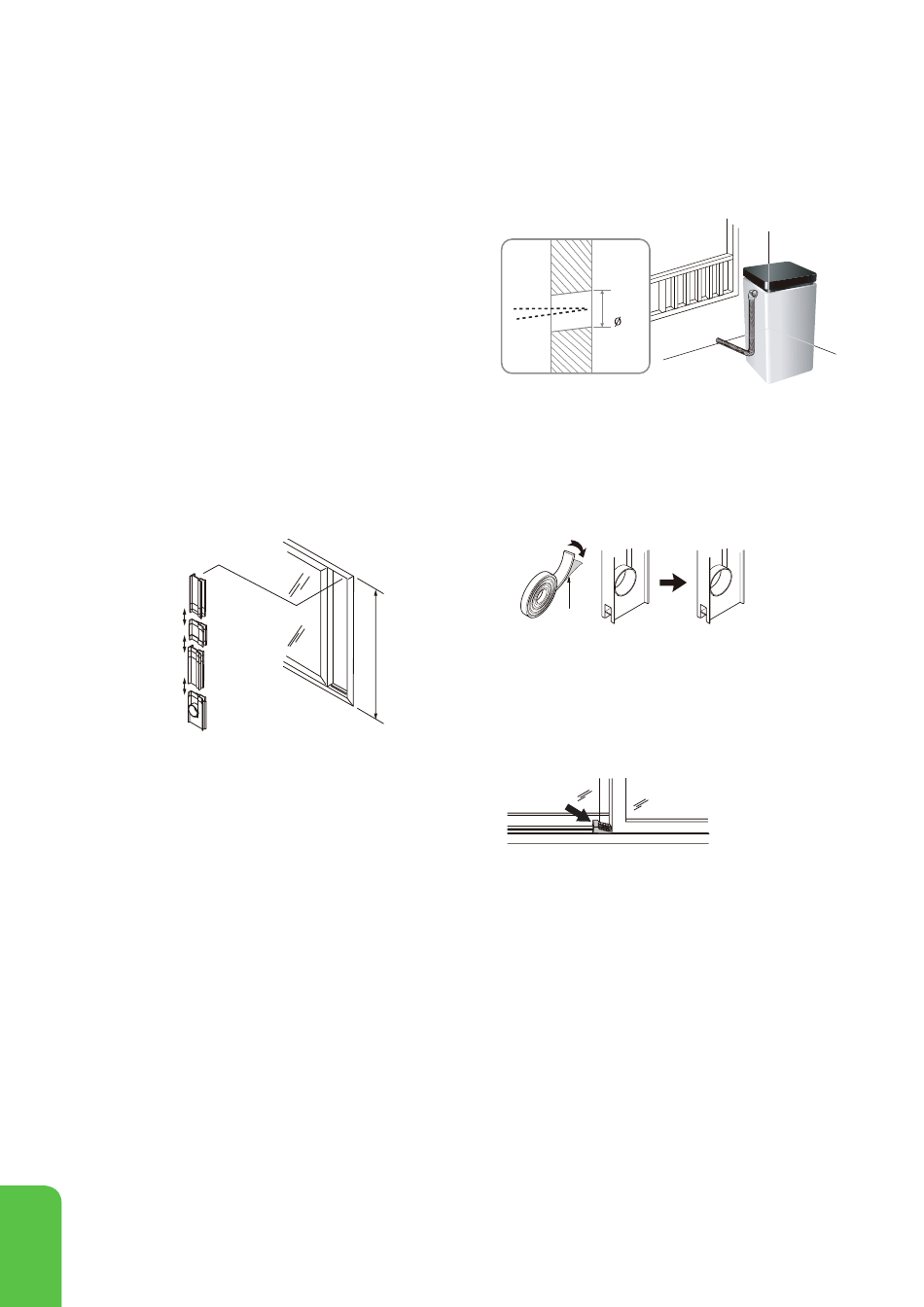

Installation 1 – Hose Through The Wall To Outside
Cut a hole in the wall approximately 29–30 mm
in diameter. Ensure the hole allows the hose to
slope downwards slightly.
Feed the hose through the hole and place the cap
over the end of the hose.
Installation 2 – Hose Through The Window To Outside
The unit comes with a window spacer kit which allows the hose to pass through a partially open window.
Link
Space-filler
Hose holder
Assemble the pieces ensuring the piece
with the hose cutout is at the bottom.
Adjust the main blanking piece so the
assembly takes up the full height of the
window frame.
Finally, feed the hose through the hole and ensure the cap is in place at the end of the hose.
6
Note slope of hole through wall
Outside
Inside
29-30mm
Hole diameter: 29-30mm
Double-sided tape
Secure the filler assembly to the window
frame using the double sided tape.
Fit the wedge to secure the window
Wedge
Position the wedge to help
secure the window.
