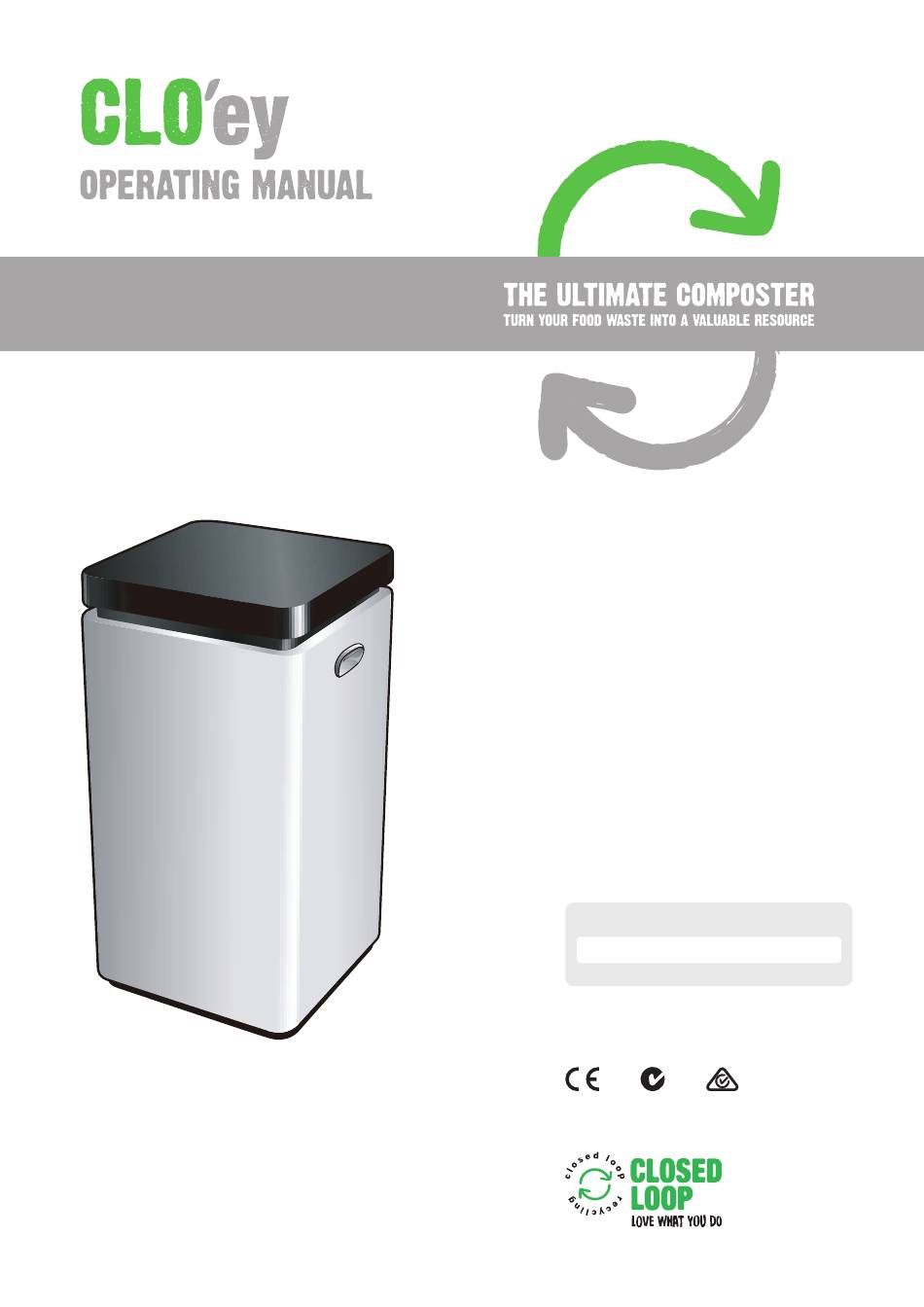

Summary of Contents for Closed Loop CLOey
- Page 1 Record your serial number here: The serial number is located on the lower rear of the unit. Read all safety instructions for safe and effective use. Warranty included.
-
Page 2: General Description
About Your Closed Loop Organics Unit Your Closed Loop food organics composter uses an organic starter material to safely and cleanly decompose your food waste within 24 hours. It uses no chemicals or harmful products, and can process up to 4kg of food waste per day. -
Page 3: Important Safety Instructions
240V lid open, unplug the unit the rating plate and this manual. immediately and contact The unit must only be used Closed Loop Service. as rated. -
Page 4: Contents Checklist
If the power cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. Contents Checklist Make sure you have all required components. If you are missing any components, call Closed Loop service on the number supplied toward the rear of this manual. Accessories... -
Page 5: Installation
Installation Before You Begin Installation This unit is best installed indoors. If outdoor installation is unavoidable, • protect from rain, water and direct sunlight; • maintain temperature between 0⁰C and 40⁰C. Install on a flat, solid, level surface. If necessary, use 10cm the levelling wedge to prevent the unit from rocking 10cm... - Page 6 Installation Installation 1 – Hose Through The Wall To Outside Cut a hole in the wall approximately 29–30 mm Note slope of hole through wall in diameter. Ensure the hole allows the hose to slope downwards slightly. Outside Inside Feed the hose through the hole and place the cap over the end of the hose.
-
Page 7: Setting Up For First Time Use
Installation Installation 3 – Hose Into Pipe Work Under Sink Note: This should be done by a licensed plumber. If there is no suitable unused spigot available in the existing pipe work under the laundry or kitchen sink, install a section of pipe with an upward facing spigot immediately after the vapour trap as shown. Insert the hose into the spigot and secure. - Page 8 Using Your Food Organics Composter How To Use The Food Composter • Ensure the unit is plugged in and switched on at the wall. • S imply open the lid, pour the food in, and close the lid again. You can do this whenever and as often as you wish. You do not need to wait for food to finish composting before topping up. • O nce the lid is closed, the unit will automatically continue operation. Over time, the paddles will rotate, the unit will heat up, and the fan will operate automatically to help accelerate the composting process.
- Page 9 Using Your Food Organics Composter Understanding The Control Panel Power Indicator Operation Indicator The power lamp will remain on while the machine is This lamp indicates that the unit is actively composting plugged in and switched on at the wall. material.
- Page 10 To restart the unit: • L oad the previously reserved compost into • Wait 24 hours. CLO’ey. Take care to break up any pieces that • S tart adding food waste gradually, adding only may have hardened. up to 1kg of food waste per day during the first • A dd 1–2 litres of cold or warm water and week.
- Page 11 Using The Compost In Your Garden Take care when applying the composted material to your garden. It is mildly acidic, and contains salt compounds. Material directly from your Organics Unit is not a growing medium in its own right, therefore should not be planted in directly. Generally the material is comparable in strength to poultry manure and as such should be treated similarly.
-
Page 12: Cleaning And Maintenance
Cleaning & Maintenance Cleaning To clean the Organic Food Composter: • Turn the unit off and unplug from electrical outlet before cleaning. • Scrape excess residue and hardened compost from the inside tank walls using the scraper provided. • Do not remove compost from below the minimum level of the horizontal paddle shaft. You may remove it for cleaning the tank but it will need to be reserved and replaced after cleaning. • U se soapy water and a damp cloth to wash down the outside. Do not use flammable or combustible liquids, such as gasoline, benzene, acetone or paint thinner to clean the machine. Checking The Hose and Vents It is advisable to occasionally check that the exhaust hose and vents are clear to allow composting vapours (mainly water vapour and carbon dioxide) to vent to the outside. -
Page 13: Troubleshooting
Troubleshooting The following gives some answers to the most common concerns while using the Organic Food Composter. If any problem persists after trying these suggestions, you should contact Closed Loop Service before continuing. Issues Possible Cause Solution The power indicator continues... -
Page 14: Product Specifications
780 mm * Food Waste Handling Capacity – based on an optimal operating environment. ** Ambient temperature range of area where unit may be installed. Closed Loop Service Please visit www.closedloop.com.au or call our Customer Service Helpline on 1300 762 166 and our staff will assist with your enquiry. Please ensure you have your original purchase receipt and/or tax invoice available, along with the serial number of the unit which is located on the rear of the unit. - Page 15 1 and any other guarantee or warranty implied by law, when you purchase one of our products, you will also have the peace of mind in knowing that your product is covered by Closed Loop Organics Standard Warranty. The Standard Warranty is provided by Closed Loop Environmental Solutions Pty Ltd (ABN 53 098 066 347) (“CLES”).
- Page 16 cl-clo2-0614...
