Anybus Configuration Manager - X-gateway
The data exchange between the IIoT interface and the other interface in the X-gateway is set
up using the Windows-based configuration tool Anybus Configuration Manager - X-gateway,
which can be downloaded from www.anybus.com/support.

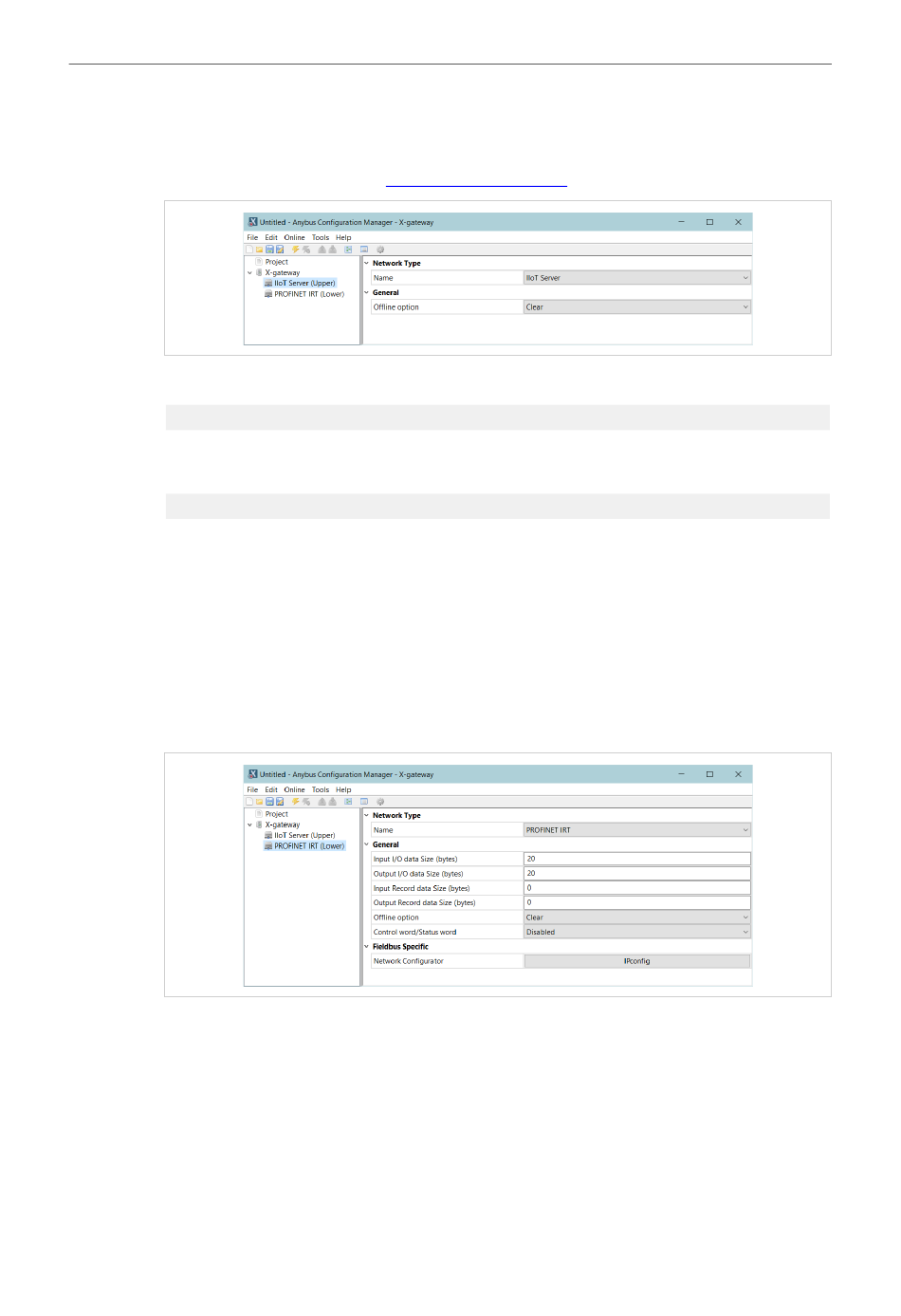

Fig. 6
Anybus Configuration Manager - X-gateway (IIoT interface settings)
Network Type
Name
General
Offline option
The input and output data sizes for the other network interface should be configured according
to the actual PLC setup. Refer to the documentation for the PLC and the built-in help in Anybus
Configuration Manager - X-gateway for help regarding the specific network interface.
The output data size is important when setting up the tag information for the IIoT interface. See
Anybus Configuration Manager - IIoT, p.
Fig. 7
Anybus Configuration Manager - X-gateway (other interface example settings)
IIoT User Manual
Select IIoT Server as the network type.
The action that the X-gateway will take if the IIoT network goes offline.
Freeze = keep the current value
Clear = reset all values to zero
12.
11 (30)
SCM-1202-109 1.0 en-US
