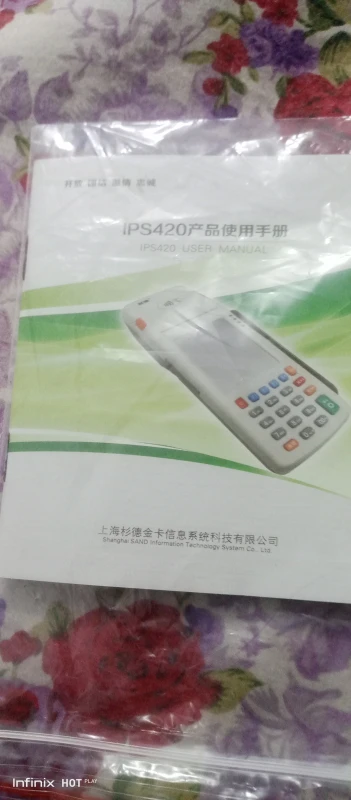

- Page 1 IPS420 产品使用手册 / IPS420 User Manual...
-
Page 2: Table Of Contents
IPS420 产品使用手册 / IPS420 User Manual 目 目 目 目 录 录 录 录 / / / / Catalogue 安全指引 SAFETY GUIDE.....................1 安全指引 安全指引 安全指引 简介 INTRODUCTION......................2 简介 简介 简介 1 设备与功能介绍 设备与功能介绍 DEVICE AND FUNCTION INTRODUCTION........3 设备与功能介绍... - Page 3 IPS420 产品使用手册 / IPS420 User Manual 2.1.1 环境要求 Environmental requirements....................13 2.1.2 电源要求 Power requirement......................13 2.1.3 安装步骤 Installation steps........................13 2.2 使用和操作 使用和操作 Use and Operation........................14 使用和操作 使用和操作 2.2.1 显示和按键操作 Display and keyboard operation................14 2.2.2 磁条卡操作 Magnetic card Operation....................14 2.2.3 接触式 IC 卡操作 Contact IC card operation..................15 2.2.4 接触式...
-
Page 4: 安全指引 Safety Guide
IPS420 产品使用手册 / IPS420 User Manual 安全指引 Safety Guide 请在使用本产品前仔细阅读本手册，不要执行本手册中没有明确说明的操作。未经授权的操作 会导致错误或意外。制造商对因错误操作而导致的任何问题均不承担责任。 Please read this manual carefully before using this product, do not perform any operation not clearly stated by this manual. Unauthorized operation will lead to a mistake or accident. The manufacturer assumes no responsibility for any problems caused by improper operation. -
Page 5: 简介 Introduction
IPS420外型小巧美观，便于携带，并可根据客户需要选择GPRS或CDMA等方式与后台进行数 据通信。非常适合用于餐厅、出租车、物流等一些以移动性和临时性为特点的应用场合。 The shape of IPS420 is small and artistic , easy to carry , and client could choose GPRS to have data change. Fit for restaurant 、taxi 、logistics etc. which are in mobile and temporary situation. -
Page 6: 设备与功能介绍 Device And Function Introduction
IPS420 产品使用手册 / IPS420 User Manual 1 设备与功能介绍 Device and function introduction 1.1 IPS420 外观及硬件构成 View and hardware 1.1.1 外观 View - 3 -... -
Page 7: Tft Lcd 液晶显示屏
IPS420 产品使用手册 / IPS420 User Manual 1.1.2 TFT LCD 液晶显示屏 320x240 TFT LCD 液晶显示器, 具有背光功能。 320X240 TFT LCD, back light. 说明：显示屏给用户提供人机交互界面，为用户提供诸如功能菜单、提示信息、操作结果等信 息指示。 Note: Screen provides user a human-computer interaction interface, provides function menu , tooltip and result of operation. 1.1.3 键盘 Keyboard 键盘如下图所示... -
Page 8: 磁条卡刷卡区域 Magnetic Card Reading Area
IPS420 产品使用手册 / IPS420 User Manual 1.1.4 磁条卡刷卡区域 Magnetic card reading area 说明：磁条卡的磁条一侧边沿靠内侧，且磁条面朝向 LCD 显示屏进行刷卡操作。 Note: When swiping Magnetic stripe card , the magnetic strip should at the side of LCD screen. 1.1.5 射频卡阅读区域 RF card reading area 说明：带有“ ”标识的射频卡阅读区域，被受理的卡片将被放在该区域内执行相应操... -
Page 9: 热敏打印机功能区域 Thermal Printer Function Area
IPS420 产品使用手册 / IPS420 User Manual 说明：接触式 IC 卡触点向上插入插口到底，则可执行相应卡操作。 Note: Contact IC card insert to the IC slot , and exec relevant operation. 1.1.7 热敏打印机功能区域 Thermal printer function area 热敏打印机功能区域如下图所示 Thermal printer function area as following picture 说明：热敏打印机提供热敏纸单据打印功能，该功能区域主要由纸仓、切纸刀和热敏打印机几 部分组成。 Note: Thermal printer provide printing function , this function area constituted with paper storage , scudding knife and thermal printer. -
Page 10: Sim 和 Sam 卡接口功能区域 Sim And Sam Card Function Area
IPS420 产品使用手册 / IPS420 User Manual 1.1.9 SIM 和 SAM 卡接口功能区域 SIM and SAM card function area SIM 和 SAM 卡接口功能区域如下图所示 SIM and SAM card function area as following picture 说明：通信 SIM 卡座 1 个 (位置 1，见上图) , 此处可插 GSM 的 SIM 卡或 CDMA 的 UIM 卡。... -
Page 11: 条码扫描器区域如下图所示 Barcode Scanner Area As Following Picture
准的银行卡、银联卡以及各种外币卡等磁条卡信息的读取功能。通过采用先进的硬解码技术，保证 了读卡的准确和高速。 By means of correct forward direction and reverse direction swiping card operation , IPS420 terminal could read card information which accord with GB/T 15120 or ISO 7811. Use advanced hardware decoder technology to ensure the speed and accuracy of card reading. -
Page 12: Sim/Sam 卡操作功能 Sim/Sam Card Function Operation
卡的信息读取操作，以及对符合 GB/T 16649、ISO 7816 以及 EMV2000 标准的各类接触式 SAM 卡 进行规范的读写操作。 By means of 1 SIM card slot and 3 SAM card slot , IPS420 terminal could provide all kinds of telecom card operation , also support GB/T 16649, ISO7816 and EMV2000 SAM cards. -
Page 13: Tft Lcd 显示功能 Tft Lcd Display Function
1.2.6 TFT LCD 显示功能 TFT LCD display function IPS420 终端产品自带二级国标字库， 可通过 TFT LCD 显示屏提供对包括 ASCII57、 ASCII816、 ASCII612、ASCII1224、GB2312 以及图形等的显示输出功能。 IPS420 is a terminal product with two GB font, through TFT LCD display screen, which can provide the display output function of ASCII57、ASCII816、ASCII612、ASCII1224、GB2312 and graphics,and so on. -
Page 14: 性能指标 Performance Index
IPS420 产品使用手册 / IPS420 User Manual Besides, the built-in GSM/GPRS （ CDMA ） module of IPS420 provide wireless data communication function to the various mobile applications. 1.3 性能指标 性能指标 Performance index 性能指标 性能指标 嵌入式 32 位 ARM9 RISC 微处理器，运行频率可达 532MHz；... - Page 15 IPS420 产品使用手册 / IPS420 User Manual Serial interface: 1 RS232, Baud rate is highest for 115200bps, communication can be programmed； USB 接口：1 个 USB OTG 接口； USB interface: 1 USB OTG interface； 条码扫描器：支持一维和二维条码； Barcode scanner: Support 1D&2D barcode； 摄像头：200W 像素，带闪光灯；...
-
Page 16: 用户操作指南 User Manual
使用 IPS420 整机包装中提供的专用 DC 9V 4A 电源适配器，或者专用 7.4V 2000mAh 锂电池， 避免使用其他任何相同电压和容量等级的供电电源。 Please use the specialized DC9V 4A power adapter packed with IPS420 terminal, or specialized 7.4V 2000mAh lithium battery, avoid using any of the other power supply voltage and capacity of the same grade. -
Page 17: 使用和操作 Use And Operation
IPS420 产品使用手册 / IPS420 User Manual 将包装内锂电池板装入 IPS420 背面的电池仓并确认就位。 The power adapter input end access 220V power, the output end is inserted into the IPS420 power supply interface, or place the lithium battery in the package into the battery compartment of IPS420 back and confirm its place. -
Page 18: 接触式 Ic 卡操作 Contact Ic Card Operation
IPS420 产品使用手册 / IPS420 User Manual movement and make it to paste the bottom of card slot tightly. 2.2.3 接触式 IC 卡操作 Contact IC card operation 插卡操作时应保持接触式 IC 卡金属触点向上，并确保已插到底部。 Keep metal contact of IC card upward , and ensure it has been inserted in the end. -
Page 19: 非接触式 Ic 卡操作 Contactless Ic Card Operation
IPS420 产品使用手册 / IPS420 User Manual 2.2.5 非接触式 IC 卡操作 Contactless IC card operation 将可识别的非接触式 IC 卡片放在读卡区域内，设备就可以完成卡自动识别功能，并进入相应 的应用功能区，然后操作员可根据屏幕提示完成相应交易操作。 The identified contactless IC card will be put on the card reading area, terminal can complete the automatic identification function of card, and enter the application of the corresponding functional areas, then the operator can follow the on-screen instructions to complete the corresponding transaction operation. -
Page 20: 主机锂电池安装操作 Installation Of Lithium Battery Operation
IPS420 产品使用手册 / IPS420 User Manual thermal printing pape as follow: open the paper cover put into thermal printing paper pull out the section of printing paper, close the paper cover and ensure to press printing paper. 2.2.7 主机锂电池安装操作 Installation of lithium battery operation 将主机锂电池具有金属触点的一端朝上，首先使用螺丝刀打开电池仓盖板，取下盖板，将电池... - Page 21 IPS420 产品使用手册 / IPS420 User Manual - 18 -...
-
Page 22: 维修和保养 Repair And Maintenance
IPS420 产品使用手册 / IPS420 User Manual 3 维修和保养 Repair and maintenance 3.1 维修事项 维修事项 Repair items 维修事项 维修事项 3.1.1 如果遇到长按电源键无法开机的情况，请先检查电源或电池安装是否有问题。 If a long press power key can not boot, please check the power supply or battery installation. 3.1.2 如果电源或电池安装没有问题，如果有条件更换相同电源，判断损坏部分。 If the power supply or battery is no problem in installation, replace the same power to judge the damaged parts. -
Page 23: 装箱清单 装箱清单 Packing List
IPS420 产品使用手册 / IPS420 User Manual 3.2.4 当机器外表脏污时，可用软布擦拭，禁止使用化学品试剂。 Cleaning the product, cleaning agent and chemicals etc are forbidden to use, please clean with a cloth of soft fabric. 3.2.5 使用过程中如有遇到问题不能正常工作，请致电厂家咨询或报修，以免延误使用。 During using, ff the product is not working properly, please contact the factory to consult or repair, so as not to affect the use. - Page 24 IPS420 产品使用手册 / IPS420 User Manual FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
