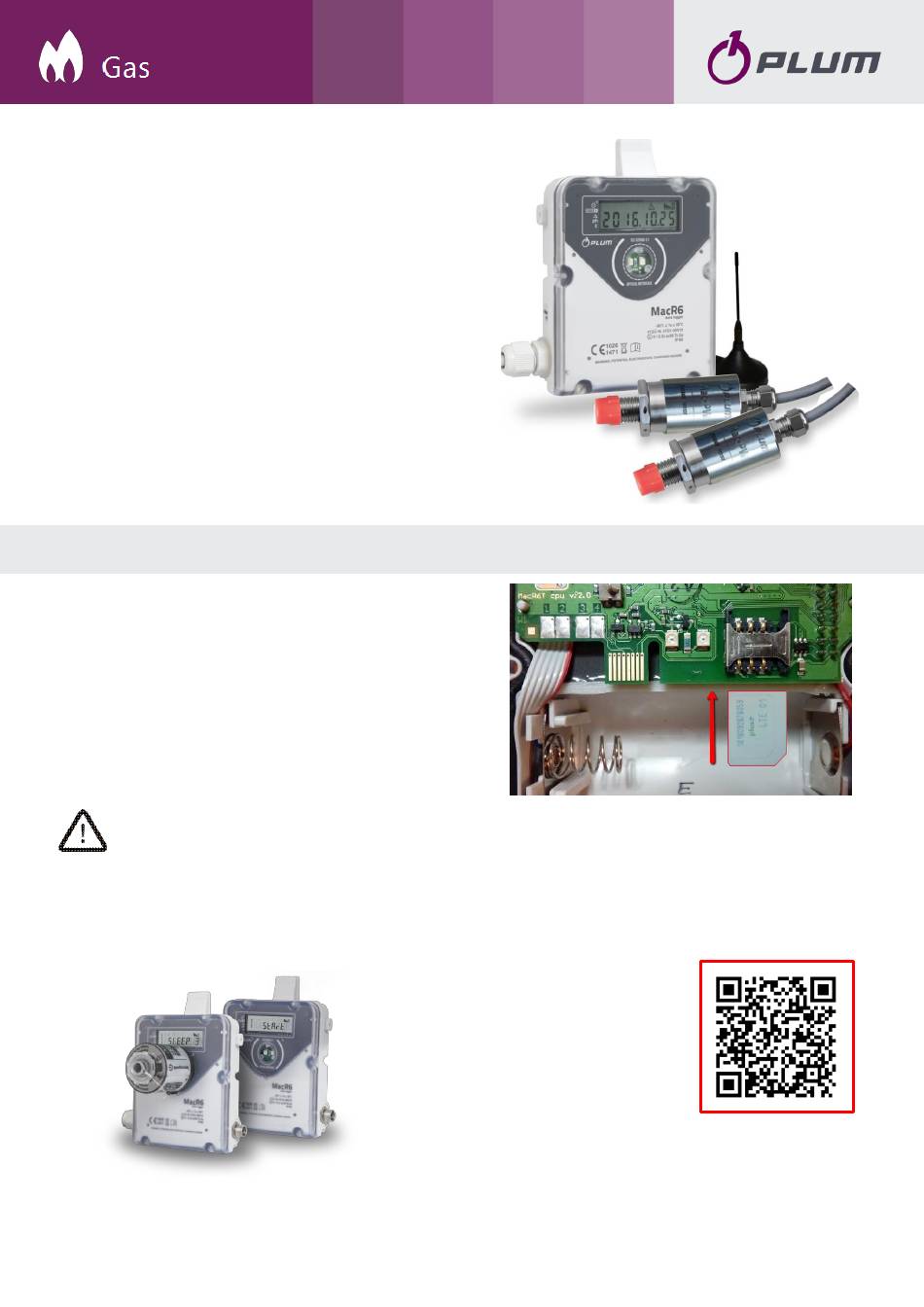

INSTALLATION MANUAL
Name: Pressure recorder
Type: MacR6
Variant: Z0 & Z0-P
Communication protocol: GAZMODEM2
RELATED TO FIRMWARE:
PROGRAM SERIE: MacR6-P S001.04
Document version: 1.1
January-2019
1. PREPARING THE DEVICE
•
Remove six TORX T10 screws from back of the
cover.
•
Next place the Micro SIM card into the holder as
shown in the picture. There is no need to remove
the battery to insert the SIM card.
•
In the next step put the device together and
tighten
the
momentum.
SIM card and antenna assembly is allowed only out of the hazardous explosive
zone.
•
Delivered devices may have the display turned off. To wake it up close the magnet (i.e. OptoBTEx
head to the OPTICAL INTERFACE window. SLEEP 3 sign will appear. Repeat closing magnet until
START sign will appear. Procedure presented in the tutorial movie =>
PLUM Sp. z o.o.
Ignatki, ul. Wspólna 19, 16-001 Kleosin
screws
with
0,65-0,75Nm
www.plummac.com
tel. +48 857497000 fax +48 857497014
plum@plummac.com
red QR code.
Advertisement
Table of Contents
Related Manuals for Plum MacR6
Summary of Contents for Plum MacR6
- Page 1 INSTALLATION MANUAL Name: Pressure recorder Type: MacR6 Variant: Z0 & Z0-P Communication protocol: GAZMODEM2 RELATED TO FIRMWARE: PROGRAM SERIE: MacR6-P S001.04 Document version: 1.1 January-2019 1. PREPARING THE DEVICE • Remove six TORX T10 screws from back of the cover.
- Page 2 Link to download the freeware application => green QR code. 2. WALL OR PIPE ASSEMBLY MacR6-Z0 data logger is the device designed for installation in hazardous explosive zones 0, 1, 2. Ex marking II 1G Ex ia IIA T4 Ga.
- Page 3 MacR6 device. LED diode must be on the right side looking on the front of the MacR6. During transmission its musts flash constantly. Configuration using computer is more detailed in „Configuration using PC”...
- Page 4 Clock programming - synchronizing devices clock with the smartphone including time synchronization options (winter/summer/auto change) Pressure limits - MacR6-P allows for setting four pressure limits - low limit warning and exceedance, high limit warning and exceedance. After exceeding the warning level user will get the information about exceedance risk.
- Page 5 Diagnostic phone number used for summary SMS message can be programmed only while SEr 5 is displayed on the device. 8. CONFIGURATION USING PC MacR6-P can be configured using PlumCONF freeware PC software. Software is available to download using purple QR code. Key parameters: Parameter...
- Page 6 Pressure recorder MacR6-P Installation manual v1.0 – December 2017 9. INSTLLATION MODE • Manual SEr 5 option turning on can be done using strong magnet or OptoBTEx head by closing it to the OPTICAL INTERFACE window. Repeat that step until SEr 5 sign will appear. Installation process will start when all indicators disappear.
- Page 7 Pressure recorder MacR6-P Installation manual v1.0 – December 2017 Variants Analog inputs Digital inputs Digital outputs Modem type Description: 0 – not installed P – pressure sensor X measurement range, i.e.; 0.1G – 0÷10 kPa 6G – 0÷600kPa 6A - 80÷600kPa abs DI/DO –...
