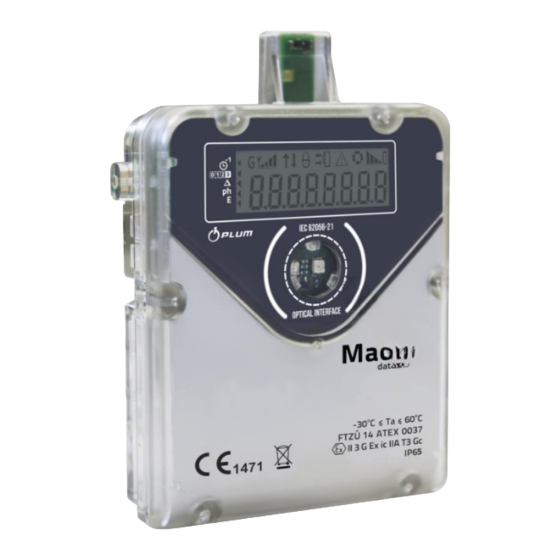

Data logger MacR6
INSTALLATION MANUAL FOR GAS METER
DOCUMENT EDITION: 1.1
IS RELATED TO SOFTWARE:

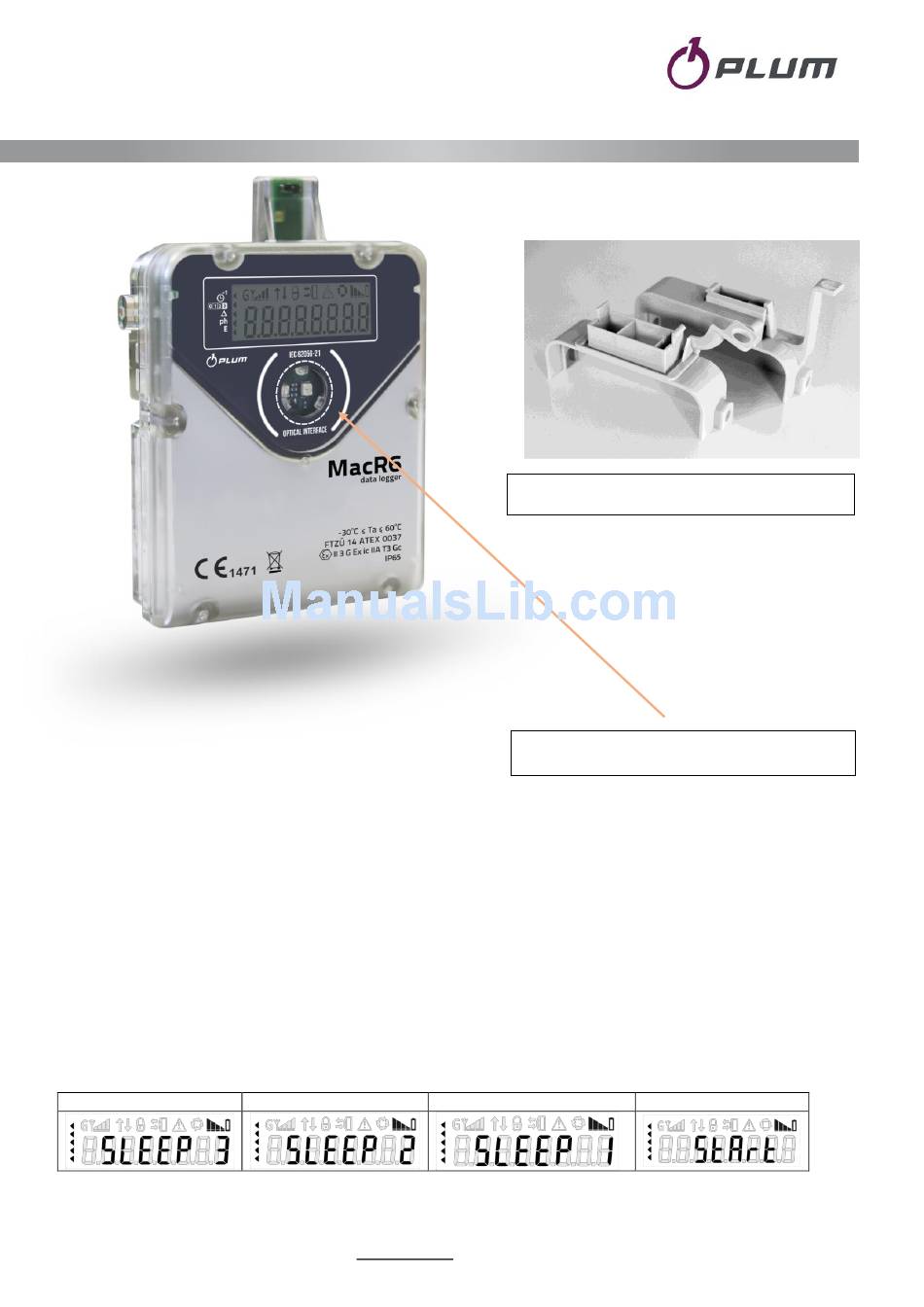

1. Preparation of device for installation
Shipped device may have turned off display, which suggest enabled storage operating mode
(battery save). In order to turn on the device user need to quickly touch four times OPTICAL INTER-
FACE window with magnet. This procedure will enable first function of device menu called "SLEEP 3". At
this point all indicators (A), place on the left side of the display will turn on and the start to dim out in se-
quence (from down to up). After touching device with magnet before all icon will dim out, on display will
show sign "SLEEP2", then "SLEEP1" and "START" – after time indicated by progress bar – device is
enabled.
magnes ↓↑
PLUM Sp. z o.o. Ignatki 27A 16-001 Kleosin Tel. +48 857497000 Fax +48 857497014
002.01
magnes ↓↑
www.plum.pl plum@plum.pl
Adapters (overlays) for gas meter METRIX and
INTERGAZ
Place for approximation or application of the
magnet
May 2014
magnes ↓↑
magnes ↓↑
Advertisement
Related Manuals for Plum MacR6
Summary of Contents for Plum MacR6
- Page 1 “SLEEP2”, then “SLEEP1” and “START” – after time indicated by progress bar – device is enabled. magnes ↓↑ magnes ↓↑ magnes ↓↑ magnes ↓↑ PLUM Sp. z o.o. Ignatki 27A 16-001 Kleosin Tel. +48 857497000 Fax +48 857497014 www.plum.pl plum@plum.pl...
- Page 2 Volume logger MacR6 Installation Manual 2. Menu On the display of device are presented icons indicating operating status and cyclic, basic information (L): - Status of counter; current date and time Functions of indicator (A): Where: S1 – time indicator (actual/ previous billing month) S2 –...
- Page 3 Figure 4-2 MacR6 – Mounting on ELSTER gas meter BK In case of other types of gas meter, pulse transmitter mounted on gas meter needs to be con- nected to MacR6 socket using appropriate plug. Rate of pulses adequate to used transmitter need to be programmed in MacR6.
- Page 4 Grounding point (view from the side of socket) Socket is not a standard accessory of MacR6 logger 5. Configuration of MacR6 with the use of OptoBTEx interface and application “Kon- figurator rejestratorów In order to perform configuration, following things are required:...
- Page 5 Option „więcej parametrów” allow for programming of ad- ditional parameters. When cell phone have GPS connec- tion, then with option “Lokalizacja” user can program into MacR6 its current localization. This information can be al- so set manually Save new configuration to device – use button „Programuj”...
- Page 6 6. Configuration with the SMS message Device have option to configure its settings with SMS message. In order to do this, number of used in MacR6 SIM card is required. Structure of SMS message is following: K; authorization password; parameter_1=new_value; parameter_2= new_value;.. ;parameter_n = new_value;...
- Page 7 K;4096;v=678.95 When device obtain configuration message with correct format, it displays a note on the screen: MacR6 replies with two messages – first with current data, Example response from device: second with configuration data - configuration data sn –...
- Page 8 Volume logger MacR6 Installation Manual 7. Diagnostics after installation Description of display icons behavior Icon Behavior Description During last operation of GSM modem it didn’t connect to APN (only user Disabled APN) Enabled During last operation of GSM modem it connects to APN properly (only user...
