Page 1: Table Of Contents
Instructions For Use Introduction ......... Indications for Use . -
Page 2: Introduction

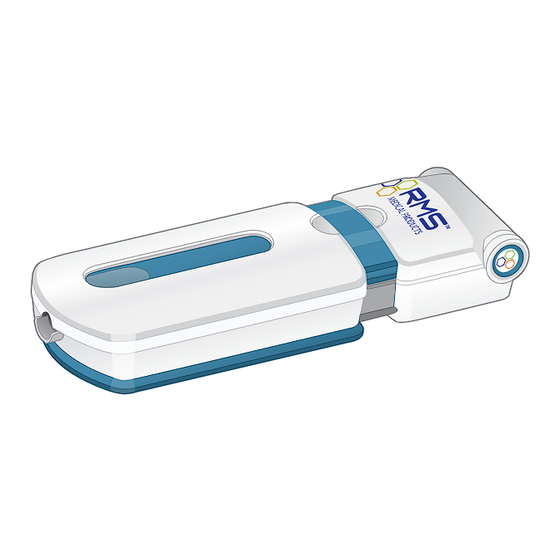

Introduction: The FreedomEdge® Syringe Infusion System is portable and easy to use, requiring no batteries or electricity. It starts to operate when the syringe driver is closed. RMS Precision Flow Rate Tubing™ sets are used to control the ow rate. -
Page 3: Caution
For use with subcutaneous immune globulin products, use only RMS ow control devices and HIgH-Flo needle sets, as use of generic products may result in unknown ow rates and additional site complications such as pain, swelling and redness. -
Page 4: Freedomedge® Syringe Driver Diagram
END CAP 0.11 The part numbers for the RMS Precision Flow Rate Tubing™ represent the target ow rate values for non-viscous solutions up to F120 (e.g. most antibiotics). For part numbers F180 and higher, and all tubing for viscous solutions, the part numbers represent the median free ow values, which are used in calculations to determine the actual ow rate delivered. -
Page 5: Syringes For Use With Freedomedge
For bench testing of ow accuracy refer to page 10. Note that the negator mechanism which drives the syringe is calibrated for the life of the syringe driver. RMS Precision Flow Rate Tubing™ sets are always measured to ow speci cation during manufacture and will deliver the appropriate ow rate under controlled conditions. -
Page 6: Syringe Loading And Removal Instructions
Syringe Loading and Removal Instructions: To load a syringe: syringe locator syringe ange Pull rmly to fully extend the syringe driver. Then, open the syringe driver fully by lifting the top cover. With syringe gradations facing up, push the syringe against the syringe locater. Seat the syringe ange into the syringe locater. -
Page 7: Selected Flow Rates Vs Time
4 Attach Syringe, Tubing & Needles 5 Prime Needle Set Remove the sterile cap from the luer disc end of the RMS Grasp the syringe, and gently press down with steady Precision tubing set and connect to syringe. - Page 8 Insert Needles/Check for Blood Return: 1 Prepare Sites 2 Insert 3 Secure 4 Pull Back Select your site(s), cleanse Pinch the skin and Secure needle(s) with Remove the syringe from the with alcohol and let dry. insert each needle adhesive dressing. syringe driver.
-
Page 9: Antibiotics Infusion Instructions
1 Wash Hands 2 Attach Tubing 3 Loosen Cap Wash your hands thoroughly Attach the RMS Precision tubing Loosen the cap on the RMS and, if required, put on set to the syringe. Check the Precision tubing set. disposable gloves. - Page 10 Infuse Dose: 1 Connect 2 Open Syringe Driver Uncap the RMS Precision tubing set. To open, con rm that the FreedomEdge® is fully extended. Turning clockwise, connect the Then, open syringe driver fully by lifting top cover. RMS Precision tubing to the valve.
-
Page 11: Troubleshooting
If medication does not drip, replace the tubing as it may be blocked or damaged. If medication does drip from the RMS Precision Flow Rate Tubing™, then it is most likely a problem with the indwelling needle, catheter, or any fluid path accessories such as a clave connector or needle-free adapter. -
Page 12: Care And Maintenance
Care and Maintenance: The FreedomEdge® does not require any preventative maintenance. The FreedomEdge® with RMS Precision Flow Rate Tubing™ works as a system, which means the tubing determines the flow rate, not the syringe driver; therefore your driverneeds no calibration. Selecting the appropriate tubing set for the application ensures the proper flow rate will be achieved. -
Page 13: Testing Accuracy
ANSI/AAMI National Standard, ID 26-1992, Infusion Devices, August 24, 1992. If test results in the range indicated cannot be approximated under bench testing conditions, contact RMS Medical Products at 1-800-624-9600. References: Stuhmeier, Mainzer B. MD; Aspects of pressure build-up in the use of electronic infusion devices. -
Page 14: Freedomedge® Flow Pro Le
FreedomEdge® Flow Pro le: The FreedomEdge® flow profile shows that the flow rate is consistent throughout the delivery of medication. FreedomEdge® Flow Rate vs. Time Fluid: H 0 · Fluid Volume: 20ml · Tubing Measured: F120, nominal 133.55ml/hr 160.00 140.00 120.00 100.00 80.00... -
Page 15: Selected Flow Rate Combinations
Closed: 9” (229mm) Extended: 11.75“ (299mm) Width: 3.25” (83mm) Height: 1.5” (38mm) Flow Rate Tubing Length: 6” to 72” (152mm-1829mm) RMS Precision Flow Rate Tubing™ / Residual Volume (ml) Part # Res. Vol. Part # Res. Vol. F0.5 0.09 0.14 0.08 F120 0.16... - Page 16 Flow Rate Flow rate/site Vol/site Flow Tube High Flo Set* Time NOTES: (ml) Total (ml/hr) (ml/hr) (ml) F275 RMS 1-2609 12.1 12.1 0:49 Two Infusions patients under 40kg F275 RMS 1-2609 12.1 12.1 1:39 Two Infusions patients under 40kg F600 RMS 2-2609 25.7...
-
Page 17: Warranty Information
FreedomEdge® for a period of two years from the purchase date. This warranty is not valid for any damage caused by the use of non-RMS products. The “Original Purchaser” is the person purchasing the syringe driver from the Manufacturer or Manufacturer’s Representative. -
Page 18: De Nition Of Symbols
• Limitations and Exclusions: Repair or replacement of a syringe driver or component part is the EXCLUSIVE remedy o ered by the Manufacturer. The following exclusions and limitations shall apply: • No agent, representative, or employee of the Manufacturer has authority to bind the Manufacturer to any representation or warranty, expressed or implied, or to change this limited warranty in any way. - Page 19 English 19 of 20...
-
Page 20: English 1 Of
The FreedomEdge® Syringe Infusion System, FREEDOM60® Syringe Infusion System and RMS Precision Flow Rate Tubing™ are registered trademarks of RMS Medical Products and are compliant with Medical Device Directive 93/42/EEC. RMS Medical Products is ISO 13485 certi ed. © 2017 RMS Medical Products; All Rights Reserved.
