Page 1: Table Of Contents
......Syringes for Use with FREEDOM60® ....
Page 2: Introduction
It provides constant ow which tends to inhibit clots, and holds full pressure after an infusion is complete to prevent blood or drug back ow. The FREEDOM60® also eliminates concerns of a bolus, over ow, overdose or runaway infusion.
Page 3: Caution
• Do not autoclave the FREEDOM60®. It will melt the ABS plastic and damage the syringe driver. • Federal law (USA) restricts this device to sale by or on the order of a physician.
Page 4: Freedom60® Syringe Driver Diagram
0.15 0.11 The part numbers for the RMS Precision Flow Rate Tubing™ represent the target ow rate values for non-viscous solutions up to F120 (e.g. most antibiotics). For part numbers F180 and higher, and all tubing for viscous solutions, the part numbers represent the median free ow values, which are used in calculations to determine the actual ow rate delivered.
Page 5: Syringes For Use With Freedom60
For Smaller Volume Infusions: The FREEDOM60® is designed to accommodate 60ml syringes. For smaller volumes, the FreedomEdge® accommodates both 20ml and 30ml syringes. Part #: F10020 Syringes for use with the FREEDOM60®: • Becton Dickinson & Co. BD® Luer-Lok® 60ml (US Reference #309653;...
Page 6: Syringe Loading And Removal Instructions
Selected Flow Rates vs Time: Note: For assistance in determining which ow rate tubing set to use, please contact RMS Medical Products at 800-624-9600. Flow Rate vs Time Chart Syringe 1ml/hr...
Page 7: Subq Infusion Instructions
4 Attach Tubing 5 Check Black Tab 6 Insert Syringe 1. Remove sterile cap from the luer disc end of the RMS Precision tubing set and connect to syringe. Make sure the syringe With syringe gradations driver is o and the black...
Page 8 Insert Needles/Check for Blood Return: 1 Prepare Sites 2 Insert 3 Secure 4 Pull Back Select your site(s), Pinch the skin and Secure needle(s) Remove the syringe cleanse with alcohol insert each needle with adhesive from the syringe driver. and let dry. Carefully into the subcutaneous dressing.
Page 9: Antibiotics Infusion Instructions
Watch for Drip 1 Turn ON 2 Loosen Cap & Tighten Cap Turn the syringe driver’s ON/OFF Loosen the cap on the RMS When medication starts to switch to the ON position. Precision tubing set. drip, tighten the cap on the tubing.
Page 10 Infuse Dose: 1 Connect 2 Turn ON Uncap the RMS Precision tubing set. Check that all clamps are Turning clockwise, connect the RMS open. Turn the syringe driver’s Precision tubing to the valve. ON/OFF switch to the ON position to begin the infusion.
Page 11: Troubleshooting
• Verify that you are using the proper BD® brand 60ml syringe. Syringe will not stay inside in the syringe driver: • Make sure you are using the proprietary RMS Precision Flow Rate Tubing™ sets with the luer disc. • Make sure the luer disc end of the tubing has been connected to a 60ml syringe and that it is seated properly in the nose of the syringe driver.
Page 12: Care And Maintenance
ABS and PC plastics. Alcohol is not recommended. Storage: The FREEDOM60® syringe driver is recommended to be stored in a cool, dry place and packaged tubing sets at room temperature (approximately 16-30°C or 61-86°F). Testing Flow Accuracy (if required by your local protocol): 1.
Page 13 60ml/hr labeled tubing set is designed to generate a nominal infusion rate of 72ml/hr. A 120ml/hr labeled tubing set will generate a nominal bench test rate of 134ml/hr. The FREEDOM60® generates nominal bench test rates higher than the labeled rate accounting for the following standardized application criteria that affects actual delivery rates under normal clinical circumstances.
Page 14: Freedom60® Flow Pro Le
FREEDOM60® Flow Profile: The FREEDOM60® flow profile shows that the flow rate is consistent throughout the delivery of medication. FREEDOM60® Flow Rate vs. Time Fluid: H O • Fluid Volume: 60ml • Tubing Measured: F120 – 120ml/hr Time (minutes) Technical Specifications:...
Page 15: Selected Flow Rate Combinations
Select Combinations of Flow Rates and Needles Sets for Use with Hizentra, Cuvitru, and Gammagard Liquid (Note that the following tables are only for the subcutaneous use of the immunoglobulin listed.) Hizentra – with FREEDOM60® or FreedomEdge® with 20ml syringe Flow Rate Flow rate/site...
Page 16 Maintenance Infusions F1200 RMS 1-2409** 42.1 42.1 0:42 Maintenance Infusions **Indicates 24 gauge needle was used. Gammagard Liquid – with FREEDOM60® or FreedomEdge® with 20ml syringe Drug volume Flow Rate Flow rate/site Vol/site Flow Tube High Flo Set* Time NOTES:...
Page 17: Warranty Information
Warranty is limited to Original Purchaser and covers the FREEDOM60® for a period of two years from the purchase date. This warranty is not valid for any damage caused by the use of non-RMS products. The “Original Purchaser”...
Page 18 • Warranty Performance Procedure: Notice of the defect must be made in writing to Customer Support Department, RMS Medical Products/Repro Med Systems, Inc., 24 Carpenter Road, Chester, NY 10918, USA. Notice to RMS Medical Products/Repro Med Systems, Inc. must include the model and serial number, date of purchase, and description of the defect in su cient detail to facilitate repairs.
Page 19: De Nition Of Symbols
De nition of symbols: Quantity Catalog number Do not reuse Caution Consult instructions for use Serial number Authorized representative in the Sterilized using irradiation European Community European Conformity Use by YYYY-MM-DD or YYYY-MM Do Not Use if Package Batch code is Damaged Prescription Only Manufacturer...
Page 20 The FREEDOM60® and FreedomEdge® Syringe Infusion Systems, RMS Precision Flow Rate Tubing™, HIgH-Flo Subcutaneous Safety Needle Sets™ and DynEQ™ are registered trademarks of RMS Medical Products and are compliant with Medical Device Directive 93/42/EEC. RMS Medical Products is ISO 13485 certi ed. © 2017 RMS Medical Products; All Rights Reserved.

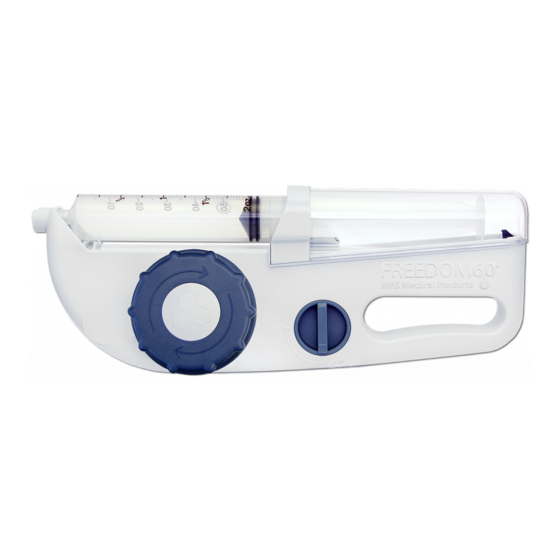

RMS FREEDOM60 Instructions For Use Manual
