Amana IC8 Installation And Operating Instructions

IC8 Top and Bottom Freezer Refrigerator Ice Maker Kit
Installation and Operating Instructions

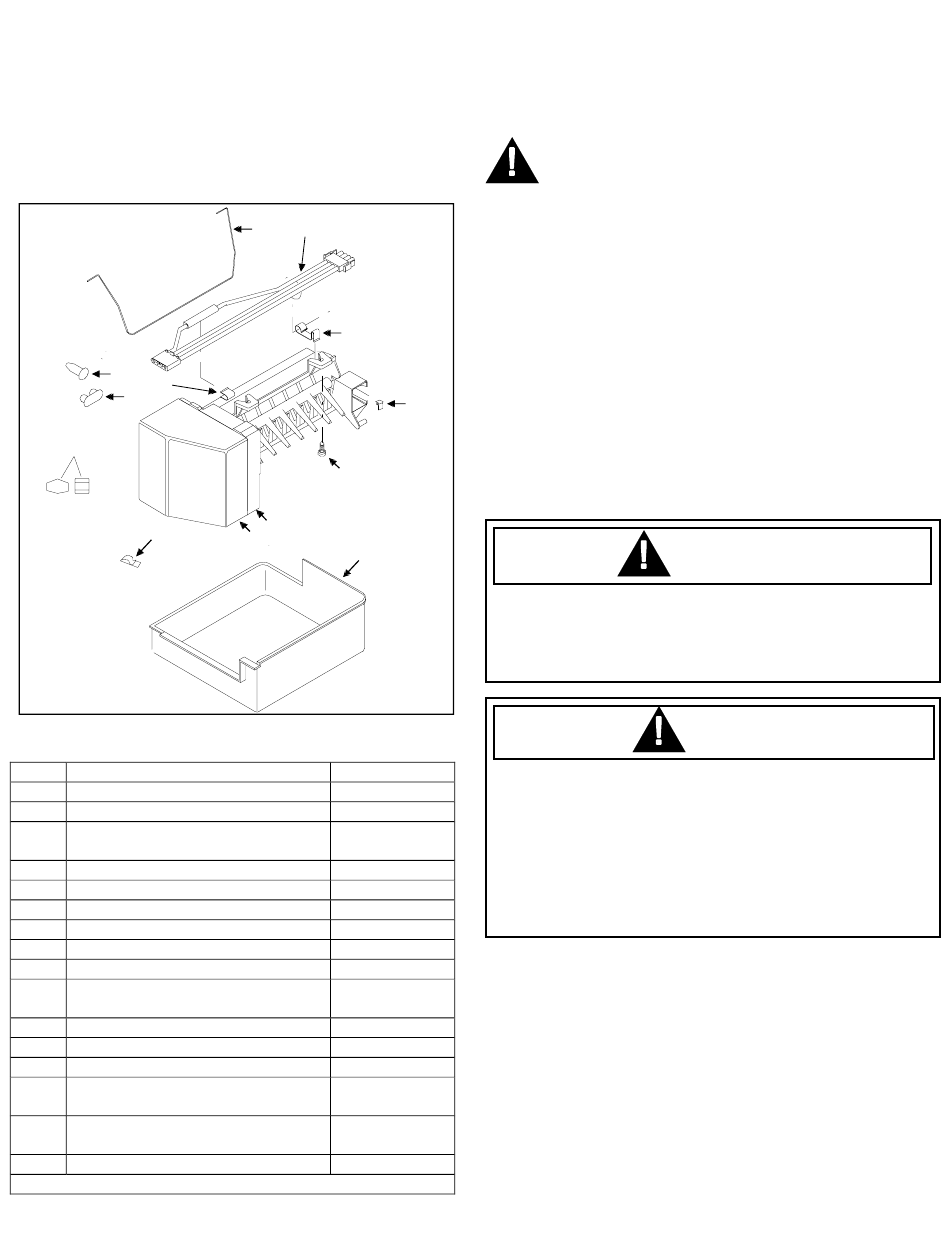

Parts
Use listed part numbers only when ordering replacement
parts. Part number are not used in installation instructions.
8
10
9
13
11
Item Description
1 Ice maker
2 Ice maker cover
5
3 / " long sheet metal screw (to
8
secure ice maker)
4 Stainless steel clip
5 Ice maker wire harness clamp
6 Ice maker wire harness
7 Ice maker arm
8 Button plug
9 Oblong plug
10 Thermal fuse clip (attached to
ice maker)
11 Plastic clips (4)
12 Ice storage bucket
13 Compression nut and sleeve
N/S Warning level (attached to side
of ice maker)
N/S Diagnostic label (inside ice
maker cover)
N/S Installation Instructions
N/S= Not shown
7 6
5
4
3
1
2
12
Part number
D7824703
10519801
M0211118
B5720302
10526701
D7813004
10884401
M0311301
A3124301
10319801
M0104106
10476201
10244904
A3036901
10834701
10527033
Introduction
Recognize this symbol as a
safety precaution.
Read entire manual before installing kit. All necessary tools
and materials must be available prior to installation. Verify
all listed parts are included in kit. If parts are missing,
contact source from whom kit was purchased.
• Mechanical experience is required to install kit.
• If unable to solve a problem during installation, contact
an authorized Amana technician. Locate a Factory
Service Center or independent authorized technician by
calling 1-800-628-5782 inside U.S.A. and 1-319-622-
5511 outside U.S.A. Service is at owner's expense.
Safety Instructions
To avoid electrical shock which can cause severe
personal injury or death, unplug power cord or open
household circuit breaker to refrigerator before installing
kit. After installing kit, reconnect power.
To avoid property damage, observe the following:
• Confirm water pressure to water valve is at least 20
pounds per square inch.
• Start nuts by hand to avoid cross threading. Finish
tightening nuts using a wrench. Do not overtighten.
• Check carefully for water leaks prior to returning
refrigerator to normal location and 24 hours after
connection.
Before Connecting Ice Maker
Important
• Before connecting ice maker, contact a plumber to
connect copper tubing for refrigerator water supply to
household plumbing in compliance with local codes and
ordinances.
Use 1 / " (6 mm) flexible copper tubing. Length of copper
4
tubing must reach from water supply connection plus an
additional 8' (2.5 m) for service loop behind refrigerator.
Tubing should be soft instead of rigid and ends should be
free of burrs.
Copper tubing route must be above 35°F (2°C) to prevent
water line from freezing.
WARNING
Caution
