Ufed Device Overview - Cellebrite UNIVERSAL FORENSIC EXTRACTION DEVICE Standard User Manual

Chapter 2 –UFED Configuration:
Ruggedized and Standard Versions
2.2.

UFED Device Overview

User Manual

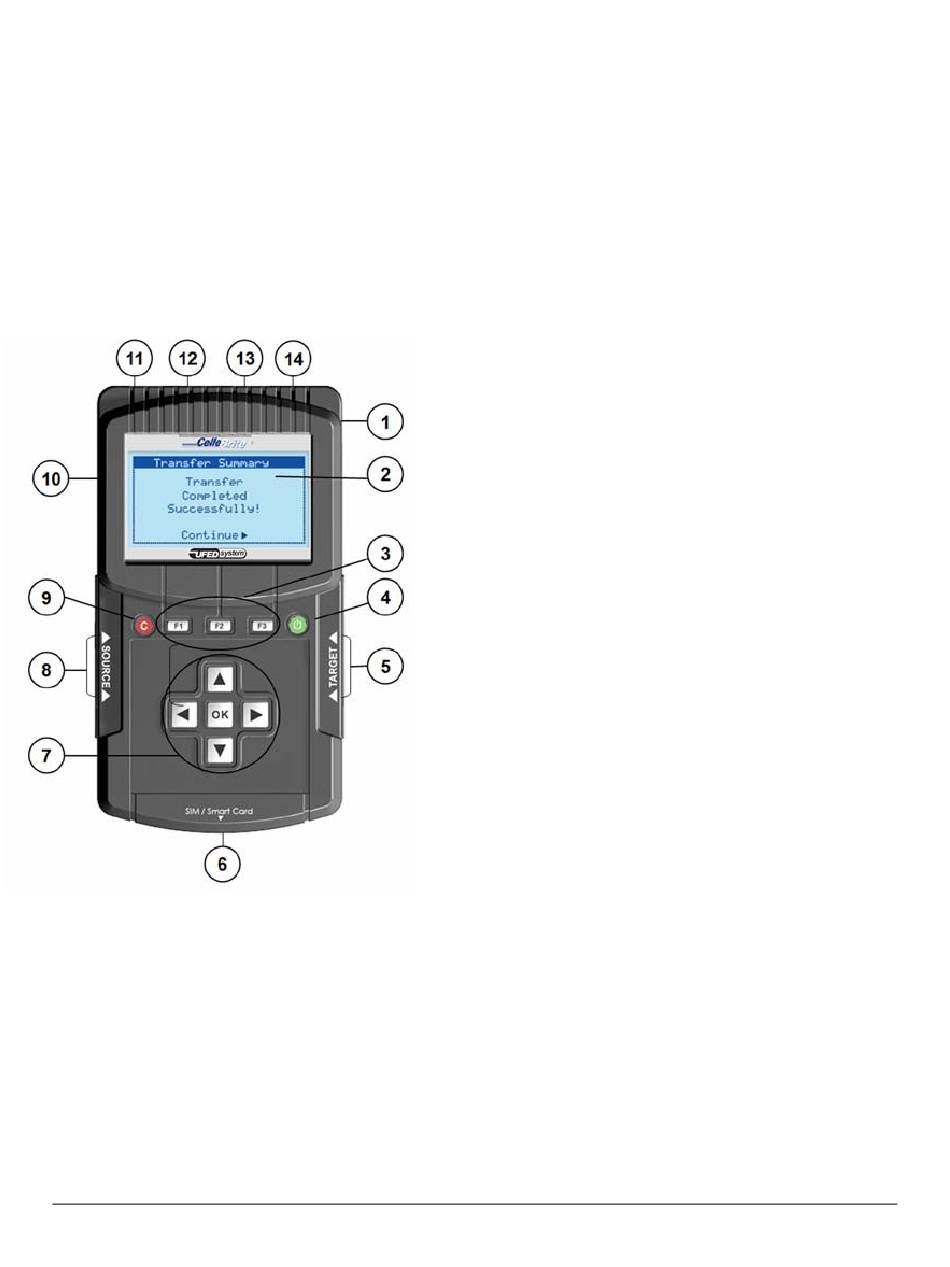

1. Power Supply (Connect to
power adapter)
2. LCD Display
3. Function Keys (F1 for help. F2
for select/deselect all)
4. ON/OFF Power Button
5. Target-side Connectors (For
extraction to USB disk drive)
6. SIM / Smart Card Slots (Slot for
reading SIM cards and smart
cards)
7. Navigation Keys (For navigating
the UFED menu)
8. Source-side Connectors
(Connect phone via USB, serial
or IR)
9. Cancel Button
10. SD Card Slot (For extraction to
SD card)
11. USB Port Extension (Use for
Bluetooth dongle or other
external devices such as
keyboard)
