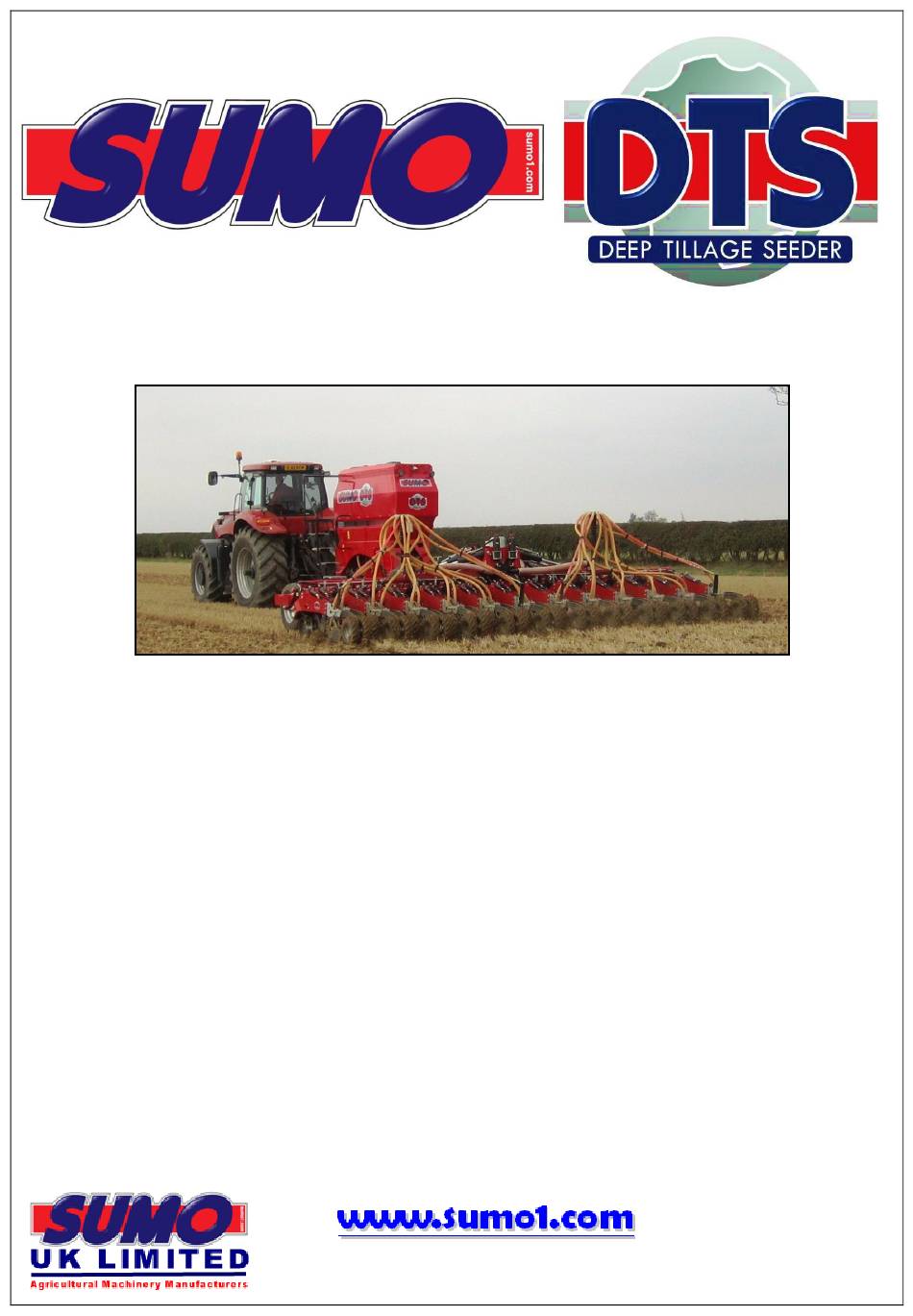

- Page 1 3m, 4.0m, 4.8m, 6.0m, 8.0m, & 9.0m machines 2017 Operator Manual And Parts List Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 Rev.1 16-1-15 RH...
- Page 2 Summary The SUMO Deep Tillage Seeder (DTS) drill is based on a concept known as ‘strip till drilling’, a method of only loosening and preparing a band of soil where the seed is to be placed and leaving the soil in- between rows undisturbed, and therefore not working ground unnecessarily.
- Page 3 To activate your SUMO Warranty, you must complete this page and send it back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 (NO REGISTRATION = NO WARRANTY) SUMO SERIAL No: For your own records.
-
Page 4: Table Of Contents
Contents 1.0 Quick start .............................. 6 1.1 Dealer PDI check list ..........................6 1.2 Quick start Guide for coupling up the DTS drill .................. 7 1.3 DTS technical data ..........................8 1.4 Operator Check List ..........................9 1.5 Warranty ............................. 10 2.0 Safety .............................. - Page 5 7.2.3 Seed depth ........................... 37 7.2.4 Covering disc adjustment ......................37 7.2.5 Chassis adjustment........................37 7.2.6 Hydraulic Coulter adjustment ..................... 38 7.2.7 Markers ............................39 7.3 Trailed DTS Calibration Procedure ....................40 7.4 ORGA Metering Setup ........................42 7.5 ORGA Metering Setup Overview ...................... 43 8.0 Maintenance ............................
-
Page 6: Quick Start
1.0 Quick start 1.1 Dealer PDI check list Check transport tyre pressures (see data table in first section) Check wheel nuts, (270N/m 8 stud) (450n/m 10 stud) Check bout marker measurements Set fan speed (start with low fan speed and raise slowly, check back pressure) Check for oil leaks with warm oil Check seed on/off system sensitivity i.e. -
Page 7: Quick Start Guide For Coupling Up The Dts Drill
1.2 Quick start Guide for coupling up the DTS drill Two cable ties represent – Pressure One cable tie represents – Return Yellow- Axle Pressure Yellow- Axle Return Red- Wings/Markers Pressure Red- Wings/Markers Return Blue- Coulter Pressure Blue- Coulter Return Orange/Brown- Fan Pressure Orange/Brown- Fan Free flow return &... -
Page 8: Dts Technical Data
1.3 DTS technical data DTS 3m DTS 4m DTS 4.8m DTS 6m DTS 8m DTS 9m Transport width Transport height 2.5m 3.7m 3.7m 3.7m 3.7m 3.7m in work wheels in wheels in wheels in wheels in wheels in transport transport... -
Page 9: Operator Check List
1.4 Operator Check List It is the owner / drill operator’s responsibility to set up the drill for: 1. Sowing depth according to conditions in each soil type and pre worked condition 2. Tramline bout number to suit tramlines 3. Tramline track width 4. -
Page 10: Warranty
1.5 Warranty In this section Sumo UK Ltd. is referred to as the Company. 1. Subject to the provisions of this warranty the Company warrants each new machine sold by it to be sold free from any defect in material or workmanship. -
Page 11: Safety
(accident prevention). SUMO shall not be responsible for any damage caused by the use of spare parts, accessories and ancillary equipment not supplied and/or approved by SUMO. -
Page 12: General Safety
Take extreme care when hitching up or unhitching machine to/from the tractor. Never allow persons to stand between the tractor and the SUMO machine unless the tractor is secured against rolling away by means of parking brake and/or wheel chocks. -
Page 13: Rds Control System Overview
3.0 RDS Control system overview 3.1 The Artemis system (single motor kit) Head Unit Power supply ‘ MCM’ CAN Module ‘HBM’ Module Land wheel Sensor Motor (optional) Speed Priming Sensor Switch Tramline (Radar) Advance Shaft switch Speed Sensors Hopper level Fan Speed sensors Sensor... -
Page 14: Main Functions
3.2 Main functions The Artemis is designed to allow automatic, variable rate control of any drill. You can at any time, also manually override the predetermined rate as field conditions require. The basic functions are: Variable Rate Control Tramline Control ... -
Page 15: Control Modes And Data Logging
3.3 Control Modes and Data Logging Automatic Control Mode The application rate is automatically regulated as forward speed varies, to ensure that the actual application rate constantly matches a preset target rate. The application rate can be manually nudged up and down from the target rate as required. Field data ("job summaries") can be logged and are stored in the instrument memory. -
Page 16: Rds Control Unit Operation
4.0 RDS Control Unit Operation 4.1 Status Indicators All the operating screens have a status bar at the top of screen displaying the time as well as a number of different icons. These icons indicate the following: Data Card DGPS Signal Area cutout Inserted No signal... -
Page 17: Forward Speed Display And Alarm Functions
Display as Fig.4 except as shown Figure 5. MAIN screen (dual product / single metering) Display as Fig.4 except as shown Figure 6. MAIN screen (single product / dual metering) 4.2.1 Forward speed display and alarm functions Display smoothing Except for sudden changes in speed, the forward speed displayed at any moment will be the average speed calculated over 3 seconds. -
Page 18: Tramlining Status/Functions
When setting a new target rate on the RATE screen, the instrument re-calculates and displays the maximum forward speed at which that rate can be maintained (Fig.7). It is calculated from the rate set, drill working width, current calibration factor, gearbox ratio and maximum motor speed. Figure 7. -
Page 19: Rate' Screen
4.3 ‘RATE’ screen This screen allows the drilling rate to be adjusted. Either kg/ha or seeds/m units can be set via the SETUP menu. Current drilling rate Maximum forward speed at which the current drilling Target rate rate can be maintained % off target Rate step size Target rate manual override by % steps... -
Page 20: Info' Screen
4.4 ‘INFO’ screen Area total Seed total Fertiliser total Select Part Total / Normal Total display Reset selected (No function) Select Grand total display total There is a ‘PART’ and a ‘NORMAL’ total for each product No func. Figure 10. Info screen graphics and functions 4.5 Tramlining To set the desired tramline rhythm, select the SETUP screen and press the key. - Page 21 The target no. of bouts can be selected up to 10, with, symmetrical, asymmetrical left or asymmetrical right rhythm selectable. Symmetrical Asymmetrical left Asymmetrical right The instrument displays the drill/sprayer width combination for the selected target no. of bouts. Beyond 10 bouts, a number of special asymmetric rhythms can be selected to suit the following drill/sprayer width combinations. ‘8-pass’...
-
Page 22: Metering Motor - Manual Override/Half-Width Shut Off (Hwso) Drilling
4.6 Metering motor – manual override/Half-Width Shut off (HWSO) drilling As fitted to 6m and above drills. When wanting to only drill with one half of the machine, it is achievable by switching either the right or the left hand side motor. Seed is then delivered to just one of the distribution heads and subsequently just one half of the machine. -
Page 23: Product Calibration
The appropriate side can then be turned back on again. This screen will remain shown until the appropriate motor is switched back on at which point product calibration can then be commenced normally. If the alarm cancel button is pressed the PSi simply goes back to the previously shown screen. 4.7 Product calibration 4.7.1 Initial product calibration Set up the drill in the usual way for a bucket test. - Page 24 Figure 17. Pre-calibration screen Figure 18. During calibration screen Figure 19. Calibration correction screen NOTE: The heading will be either SEED / FERT / LEFT / RIGHT according to steps 2a , 2b. 5. Press ENTER again for the instrument to re-calculate and display the new calibration factor in kg/rev, the error %, and the maximum forward speed that is permissible based on the application rate set for the product (Fig.20).
-
Page 25: Calibration Nudge' - Adjusting The Calibration Factor
4.7.2 ‘CALIBRATION NUDGE’ - Adjusting the calibration factor The ‘calibration nudge’ procedure enables you to adjust the existing calibration factor without having to redo a bucket test. 1. First note down the PART TOTAL for the product displayed in the INFO screen. This is the theoretical quantity that the instrument has calculated. -
Page 26: Speed Simulation
4.9 Speed simulation In the unlikely event that the radar speed sensor stops working, you can continue drilling by simulating a forward speed signal. Remember though that your actual forward speed should match the simulated speed as close as possible, otherwise the drilling rate will not be correct. Drive faster than the simulated speed and you will under-apply, and vice-versa. -
Page 27: Speed Auto-Cal. Routine
4.11 Speed Auto-cal. routine This procedure is required to calibrate the radar for the location it is positioned in. Certain machines have differing positions and proximity to the ground. Tractor pickup hitch, drawbar fluctuations etc. can all affect the perceived forward speed signal. 1. -
Page 28: Gps Configuration
5.0 GPS Configuration Hardware/software set up Procedure to receive a GPS speed signal and variable seed rate signal Outline procedure: 1, Port set up 2, Baud rate (match GPS device to the RDS box) 3, Select the speed sensor option. To use GPS, choose NMEA VTG, option 4 To use the radar, choose option 3 4, Load Variable rate maps from the log page... - Page 29 GPS Receiver Third-party Controller Bottom Port Rate instruction ERIS Custom Interface Cable NOTE: Power Supply as normal via Pro-Series 50-way 'D' connector Figure 34: Typical Setup- Psi receiving rate instructions E.G Soyl Opti, John Deere Greenstar GPS Receiver Third-party Port Controller Bottom Data...
-
Page 30: Head Unit Configuration - Port Settings
5.2 Head Unit Configuration - Port Settings Having connected the hardware to the appropriate port(s), you need to configure the port settings. Press to select SETUP then, 5. GENERAL PF SETUP 6. PORTS SETUP Figure 36: Configuring the ports process & screen The ‘Ports Setup’... -
Page 31: Internal Data Card Module
5.3 Internal Data Card Module Figure 37. SD Data Card Module The internal data card reader accepts SD/MMC cards of up to 2Gb, to store data generated from harvesting, soil sampling, or variable-rate treatment. It can also upload data e.g. treatment plans or navigation data for soil sampling. -
Page 32: Third-Party Gps Receivers
5.4.2 Third-party GPS Receivers Any DGPS receiver may be used if the output is compatible with the head unit. Changing the GPS baud rate. Your existing GPS lead will not work if connected directly to the head unit. Connect it to the top port via the ‘Pro-Series-Jupiter’... -
Page 33: Data Logging And Variable Rate Treatment
6.0 Data Logging and Variable Rate Treatment Data Logging and Variable Rate control functions are accessed from the SETUP screen. Press the key to display the logging screen (Fig.41). The instrument then detects the presence of the data card. Press the START key to select the JOB STARTUP page (Fig.42). Options applicable to Artemis... -
Page 34: Overview And Operation
Seed/Fert transfer pipes: Act as a transport vessel for the seed to travel from the outlet of the Sumo Orga Metering Unit to the distribution heads and thereby to each coulter. - Page 35 (calibration position). Ensure this is closed before commencing seeding. Sumo Orga Metering: Sumo’s versatile metering unit. The metering unit is designed so that it can meter any granular products at any reasonable rate and drilling speeds with only simple setting changes. The Sumo ORGA Metering Unit does not use traditional rollers.
-
Page 36: Drill Settings - Coulter Overview
7.2 Drill Settings – Coulter overview Contour following pressure ram Auto-reset ram for the ripper leg Seed depth Covering discs Leg depth Leading disc depth 7.2.1 Disc Depth Leading disc depth is adjusted by removing M12 bolts and rotating unit to the new desired position. M12 bolt Deep working Shallow working... -
Page 37: Seed Depth
7.2.3 Seed depth The seeding depth is altered by removing a 20mm pin and lifting or lowering the coulter. For bean drilling a 1” seed boot can be fitted by removing roll pin. 20mm seed leg depth pin Shallowest seed leg depth 1”... -
Page 38: Hydraulic Coulter Adjustment
7.2.6 Hydraulic Coulter adjustment The hydraulic coulters run using a constant oil supply from the tractor. The pressure in the system is regulated using a pressure relief valve located at the front of the drill near the storage locker. The pressure gauge fitted to the valve displays the working pressure. -
Page 39: Markers
7.2.7 Markers Disc angle can be changed via M16 bolts to exaggerate or reduce the mark left in the soil. Setting Markers to working position Markers are designed for marking the tractor centreline. The distance between the first sowing row and the marker disc equals ½... -
Page 40: Trailed Dts Calibration Procedure
7.3 Trailed DTS Calibration Procedure 1. Open flap (1) to allow seed to flow out of the Air Transfer Pipe directly below the ORGA Metering Outlet. 2. Switch the scales ON and check units (kg). Zero the scales with the weight of the calibration bag and Hanger. - Page 41 8. After the motor has been stopped with the white button the screen will show the expected weight. Then enter the ACTUAL weight dispensed using the keypad (Fig.43) and press ENTER to confirm Check decimal place and units. Figure 43. Screen appearance during calibration NOTE: The heading will either be SEED / FERT / LEFT / RIGHT according to the drill setup 9.
-
Page 42: Orga Metering Setup
Blanking slide for isolation of ORGA from tank contents. Rape, Grass or Linseed. The inserts also acts as a guide to align the Sumo ORGA. The Short Insert has no effect on seed rates and purely supports the end of the orga flighting.. -
Page 43: Orga Metering Setup Overview
7.5 ORGA Metering Setup Overview Outer housing The nylon insert fits in the void between the Orga flighting and the outer housing. Choke slide Orga flighting. Securing bolt points Orga insert. Up to 8m working widths it is recommended to operate the Orga metering unit with the nylon insert fitted for small seeds and cereals in order to prevent potential minor seedrate output fluctuations when drilling on gradients. -
Page 44: Maintenance
8.0 Maintenance The condition of the legs and the coulters should be regularly monitored in order to maintain the most efficient use of the machine. 8.1 Greasing Coulter units – don’t need greasing the coulters are mounted on self-lubricating, maintenance-free plastic flange bushes Axle lift rams and chassis pivot points –... -
Page 45: Hydraulic Systems
9.0 Hydraulic Systems 9.1 On/Off FCV balancing Under the toolbox at the front of all trailed machines is a flow control valve tap which controls the flow to the main lift rams and also the seeding shut-off ram. The shut-off ram has a magnet attached to one end that starts and stops seed dispensing based on its proximity to the parent sensor. -
Page 46: Coulter System
9.5 Coulter system 9.6 Fan Motor system... -
Page 47: Wings/Markers System
9.7 Wings/Markers system... -
Page 48: Coulter Overview
Seed Leg DO NOT SCALE DRAWING MACHINE/COMPONENT: DTS Coulter TITLE: Coulter Overview Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be made with the permission of the owner. REVISION: DATE: 22/01/15 INITIAL:... -
Page 49: Parallel Linkage And Rams
(not shown) Rams Coulter Side SW1308 Frame Drawings and design information found Top Parallel herein remain the sole property of Sumo SW1401 Arm (3m UK Ltd. Reproductions may only be made with the permission of the owner. Only) REVISION: DATE:... -
Page 50: Depth Pins
TITLE: Depth Pins SWB105 Lynch Pin SWB691 6mm Lynch Pin Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be made with the permission of the owner. SWB532 Cast Socket REVISION: DATE:... -
Page 51: Leading Disc Unit
Front Disc SW1270 Adjuster Box End Plate Drawings and design information found M10 Plain herein remain the sole property of Sumo SWM10001 UK Ltd. Reproductions may only be Washer made with the permission of the owner. SWM1030 M10 x 30 Bolt... -
Page 52: Seed Leg Assembly
Head Sqaure TITLE: Seed Leg M10 Nylock SWM10004 Fertiliser Drawings and design information found Outlet herein remain the sole property of Sumo SW2307 UK Ltd. Reproductions may only be (optional made with the permission of the owner. extra) REVISION: DATE:... -
Page 53: Loosening Tine Assembly
M10 Flat TITLE: SWM10001 Washer Looseing Tine M10 Nylock SWM10004 Drawings and design information found herein remain the sole property of Sumo Weld on UK Ltd. Reproductions may only be SW1496 made with the permission of the owner. Bottom REVISION: DATE:... -
Page 54: Covering Discs
Washer 29od x 16.5id x 8 SW1260 Drawings and design information found Washer herein remain the sole property of Sumo UK Ltd. Reproductions may only be 41od x 20id x 10 made with the permission of the owner. SW1265 Washer... -
Page 55: Press Wheels
M10 Flat Washer Press Wheels SWM12001 M12 Flat Washer Middle Press Wheel Drawings and design information found herein remain the sole property of Sumo SW1402 Deflector Mounting UK Ltd. Reproductions may only be made with the permission of the owner. PlateE3... -
Page 56: Distribution System
M6 x 20 Bolt SWB508 Tramline Actuator Drawings and design information found SW1836 Actuator Cover herein remain the sole property of Sumo UK Ltd. Reproductions may only be SW1885 Cover Brackets made with the permission of the owner. SW1837 Shut off Slide... -
Page 57: Drill Switching System
50od x 16id x SW1247 12 Washer Drawings and design information found 70od x 16id x herein remain the sole property of Sumo SW2460 UK Ltd. Reproductions may only be 6 Washer made with the permission of the owner. REVISION:... -
Page 58: Fan Assembly
Outlet Fan Assembly Dual Fan SW2251 Outlet (G&F Only) Drawings and design information found herein remain the sole property of Sumo Oil Cooler UK Ltd. Reproductions may only be SWB674 made with the permission of the owner. (G&F Only) REVISION:... -
Page 59: Hydraulic Fan Assembly
Hydraulic Fan Assembly SWH320 3/4 Swivel Tee SWH359 Relief Valve Drawings and design information found herein remain the sole property of Sumo Pressure Gauge UK Ltd. Reproductions may only be SWH365 made with the permission of the owner. (not shown) -
Page 60: Lifting And Folding
50 x 200 Tabbed Pin SWP50x280 50 x 280 Tabbed Pin Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be made with the permission of the owner. SW1254 Detachable Axle Pivot... -
Page 61: Rds Kit List And Part Numbers
11.0 RDS Kit list and Part Numbers Drill head unit K/PS/BKT/MK2 Item # Part No. Description SWB314 Head Unit (S/HU/268-6-003) SWB315 Cable - Head Unit (S/CB/268-6-045) SWB316 Mounting Bracket Kit (S/PS/BKT/MK2) - Page 62 Item # Part No. Description SWB295 Motor Assembly ( S/AC/268-6-043) CAN Module – MCM (S/HU/322-5-002) SWB296 Wiring Harness – MCM (S/CB/322-5-021) SWB297 SWB298 Junction Box (S/AC/268-6-049) (1 of 2) Sensor Kit – (for Seed Shaft) (K/SNR/503) SWB299 (2 of 4) Switch Kit –...
- Page 63 Single/Dual Motor Drive - HBM related components K/SNR/503 Item # Part No. Description SWB298 Junction Box (S/AC/268-6-049) (1of 2) Sensor Kit – (for Fan Shaft) (K/SNR/503) SWB299 (1 of 4) CAN Module – HBM (S/HU/322-5-001) SWB304 Wiring Harness – HBM (S/CB/322-5-020) SWB305 SWB306 Wiring Harness - Main (S/CB/268-6-046)
- Page 64 Power Supply and Radar Sensor K/ART2/PWR K/TGSS/MK3/UK Item # Part No. Description Power Cable – Tractor ( S/CB/500-1-074) SW877 SWB309 Power Supply Kit (K/ART2/PWR) SWB310 Radar Sensor Kit (K/TGSS/MK3/UK) 25 e SWB355 Power lead fuse holder ( S/H661-012) 25 d SWB363 60 amp fuse (S/H663-025)
- Page 65 Extension kit A 4m extension cable kit for use with trailed drills Item # Part No. Description Power Supply Extension Cable – 4m ( S/CB/318-1-022) SW896 Instrument Extension Cable – 4m ( S/CB/318-1-021) SW897...
-
Page 66: Trailed Drill Settings
* - Internal inserts are supplied in long and short lengths. The longer insert approximately halves the rate that the notched slide lets through its aperture. They also act as a guide to align the Sumo ORGA. *** - The Gears supplied with the Sumo ORGA are specifically designed for the width of Drill that is specified. -
Page 67: Drill Settings
Notched Slide lets through its aperture. They also act as a guide to align the Sumo ORGA. *** - The Gears supplied with the Sumo ORGA are specifically designed for the width of Drill that is specified. There will always be a small and a large gear supplied. -
Page 68: Dts Specific Points To Note
14.2 3m tramline system The Sumo DTS is unique in that the drill does not have any tramline markers as such; the coulters that are blocked off are lifted during a tramlining bout.
