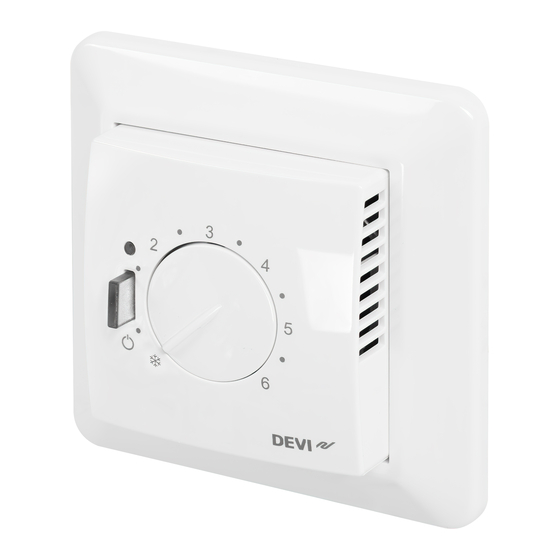

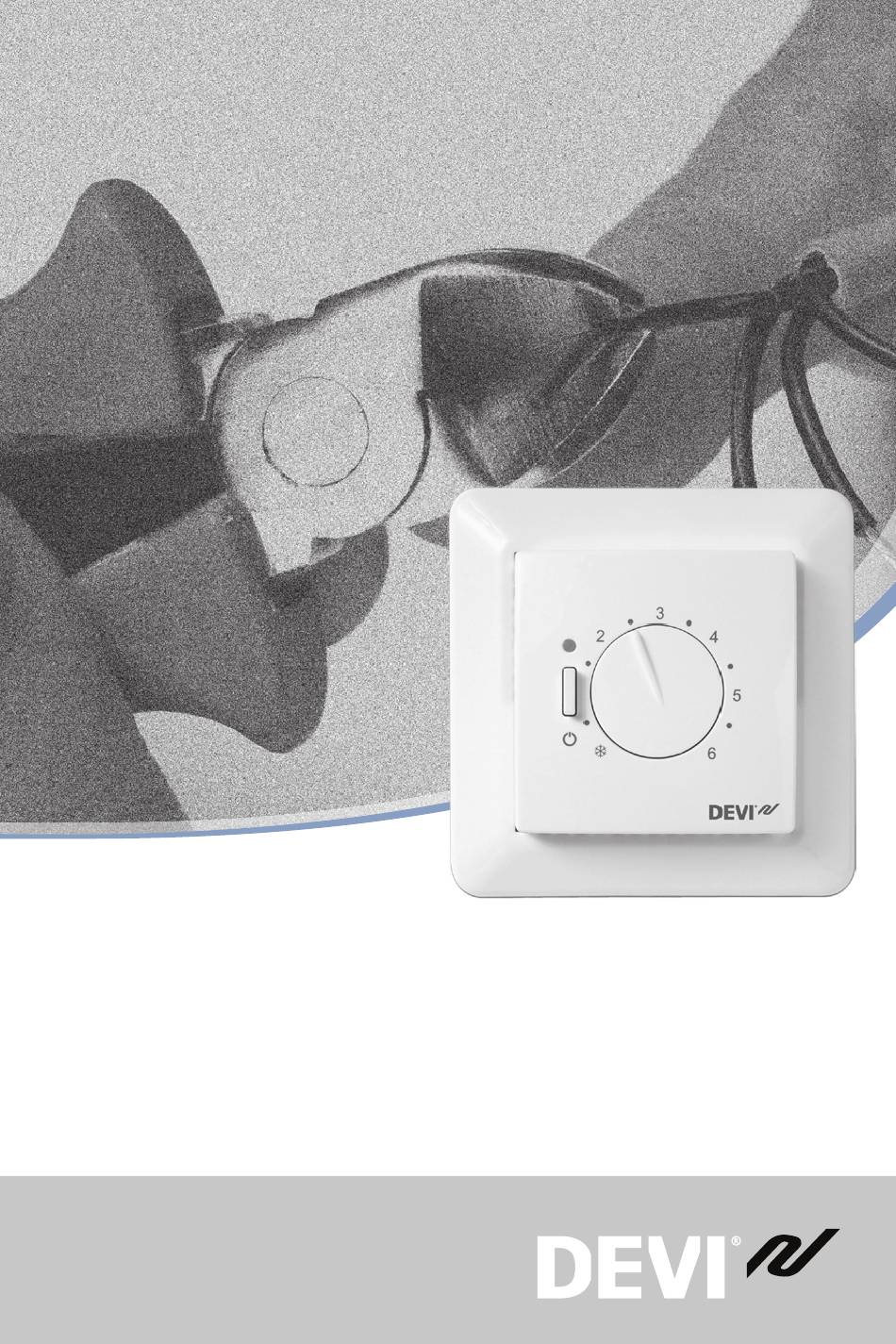

- Page 1 Installation Guide DEVIreg™ 527 Electronic Time Regulator www.DEVI.com...
-
Page 2: Table Of Contents
The DEVIreg™ 527 does not require a sensor and does not regulate according to temperature - it is a timer not a thermostat. More information on this product can also be found at: devireg�devi�com Installation Guide... -
Page 3: Technical Specifications
DEVIreg™ 527 1�1 Technical Specifications Operation voltage 220-240 V~, 50 Hz Standby power consumption Max. 0.25 W Relay: Resistive load Max. 15 A / 3450 W @ 230 V Inductive load cos φ= 0.3 Max. 1 A Ambient temperature -10°C to +30°C Cable specification max. -
Page 4: Safety Instructions
DEVIreg™ 527 time regulator to regulate floor heating elements in connection with a wooden floor or similar materials. DEVI recommends always to use a thermostat and a floor sensor and never set the maximum floor tem- perature to more than 35°C. -
Page 5: Mounting Instructions
DEVIreg™ 527 Mounting Instructions The time regulator should not be placed in wet rooms. Place it in an adjacent room. Always place the time regulator according to local regulation on IP classes. Follow the steps below to mount the regulator: 1. - Page 6 DEVIreg™ 527 2. Connect the time regulator according to the connection diagram. LOAD LOAD Mains Max. Load 220-240V~ 15 (1) A Danfoss A/S IP31 Ulvehavevej 61 -10T30 7100 Vejle D527 Denmark The screen of the heating cable must be connected to the earth conductor of the power supply cable by using a separate connector.
-
Page 7: Settings
DEVIreg™ 527 Settings The DEVIreg™ 527 series has a LED indicator above the 2 pole safety switch (see illustration). The LED has three indications: • No light means the system is off. • Red light means system is heating. • Green light means system is standing by. Behind the front you can set a min. -
Page 8: Warranty
DEVIreg™ 527 Selecting position 2 means that the regulator will be on for 10 minutes and off for 20 minutes and the cycle will be repeated until you change the setting. Warranty Installation Guide... -
Page 9: Disposal Instruction
DEVIreg™ 527 Disposal Instruction Installation Guide... - Page 10 DEVIreg™ 527 Installation Guide...
- Page 11 This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. DEVI and the DEVI logo-type are trademarks of Danfoss A/S. All rights reserved 08095890 &...
