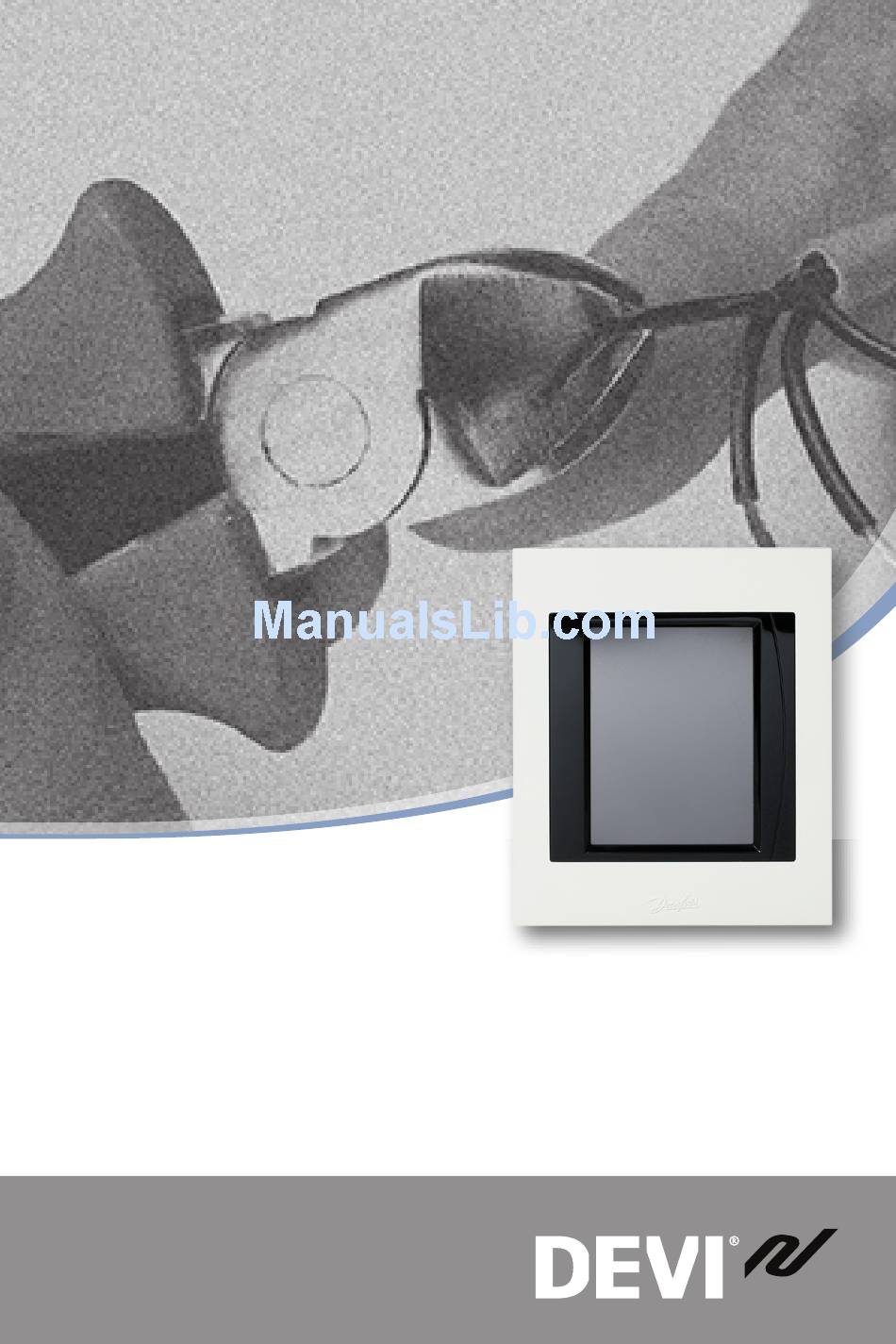

- Page 1 Installation Guide DEVIlink™ CC Central Controller www.DEVI.com...
-
Page 2: Table Of Contents
DEVIlink™ CC Table of Contents 1 Introduction � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4 2 Guidelines for installation �... - Page 3 DEVIlink™ CC 5 Modifying an existing installation� � � � � � � � � � � � � � � 19 5.1 Adding devices to an existing room ... . 19 5.2 Changing parameters for heat regulations .
-
Page 4: Introduction
Always look for the latest software version at www.DEVI.com before installation. See "7 Upgrading software version". Installation Guide... -
Page 5: Guidelines For Installation
DEVIlink™ CC Guidelines for installation The signal strength is sufficient for most applications, however, wireless signals are weakened on the way from the DEVIlink™ CC to the room devices and every building has different obstacles. Ensure the best performance by keeping the following in mind for planning and installation: •... -
Page 6: Installation Plan
2. Add the DEVIlink™ CC in a central location to the installation plan. 3. Add necessary repeater units (if any) to the installation plan. DEVI recommends that you include at least one repeater unit within 5 meters from the CC. 3�1 Correct installation plan •... -
Page 7: Incorrect Installation Plan
DEVIlink™ CC living connect (room device) 3�2 Incorrect installation plan • Metal objects between the DEVIlink™ CC and other wireless DEVI units. • Decentral installation of the DEVIlink™ CC. • Crossing walls diagonally. RS Sensor living connect DEVIlink™ HC (room device) -
Page 8: Repeater Units
Repeater units A repeater unit strengthens the wireless signal when a satisfying connection can not be established between the DEVIlink™ CC and other wireless DEVI mains powered devices. Repeater units can be ordered on stock code no. 140F1138. Placing repeater units... -
Page 9: Installation
DEVIlink™ CC Cross section view - building with more than one floor Installation DEVIlink™ CC can be installed with either a PSU (in-wall power supply) or a NSU (net power supply). Do not Avoid direct sun Install in install in light onto the height of bathrooms... - Page 10 DEVIlink™ CC Mounting the DEVIlink™ CC with In-Wall PSU • Hold the PSU over the wall box and mark up the 4 screw holes. Make sure the top is level. • Drill holes and insert fitting plugs. • Connect the PSU according to the connection diagram on the back side.
-
Page 11: Preparing To Add Devices
DEVIlink™ CC 4�1 Preparing to add devices When adding devices to the DEVIlink™ system, the distance between the DEVIlink™ CC and the device must not exceed 1.5 m. To accomplish this the DEVIlink™ Battery Supply Unit (BSU) is offered as an installation tool. 1. -
Page 12: Initial Settings
DEVIlink™ CC 4�2 Initial settings Select Language Select Country Scroll down to select Scroll down to select Select date and time Set date and time 4�3 Start up the installation menu Installation Guide... -
Page 13: Creating Rooms
• Press the [SETUP] pin for 3 seconds to enter the service area. 4�4 Creating rooms DEVI recommends to create all the rooms before adding devices. Service Options Rooms and Devices Rooms and Devices... -
Page 14: Adding Mains Powered Devices
DEVIlink™ CC 4�5 Adding mains powered devices • Pair devices to DEVIlink™ CC. • Start with the device closest to the DEVIlink™ CC, and move outwards. 4�6 Adding service devices - mains powered Always add dedicated repeater units first! Power-up all service devices and room devices (mains powered as well as battery powered). -
Page 15: Adding Room Devices - Mains Powered
DEVIlink™ CC Service Options Rooms and Devices Rooms and Devices Add Service Device Add Service Device Edit Device Name Begin Registration Enter / edit Device Name 4�7 Adding room devices - mains powered A room device regulates temperature in the room where it is installed. - Page 16 DEVIlink™ CC Configure Room Room Device Room Device Scroll down to select Add Room Device Room Device Begin Registration The configuration is valid Press Note! ON / OFF relays are only visible in the end-user menu. Note! DEVIlink™ CC automatically selects the regulation principle according to the types of devices in the room.
-
Page 17: Adding Room Devices - Battery Powered
DEVIlink™ CC 4�8 Adding room devices - battery powered Add the battery powered room devices room by room. 4�9 Performing network test After finishing the installation perform a network test to ensure that communication between all added devices and the DEVIlink™ CC is stable. Note! Do not perform the network test before the DEVIlink™... - Page 18 DEVIlink™ CC Service Options Status and Diagnostics Status and Diagnostics Network Wireless Network Status Start Network Test At the end of the network test the DEVIlink™ CC waits for all battery operated devices to wake up and report. Follow the instructions given on screen.
-
Page 19: Finalising The Installation
DEVIlink™ CC 4�10 Finalising the installation Press the [SETUP] pin to close the installa tion. 10:15 Modifying an existing installation 5�1 Adding devices to an existing room Remove the front cover and press the [SETUP] pin for 3 seconds to enter the service area. Service Options Rooms and Devices Rooms and Devices... - Page 20 DEVIlink™ CC Manage Existing Room Select Room Configure Existing Room Choose room Configure Room Room Devices Room devices Add a device Add Room Device Begin Registration Continue until all new devices are added to the desired room. Perform a network test after modifying the installation. Installation Guide...
-
Page 21: Changing Parameters For Heat Regulations
DEVIlink™ CC 5�2 Changing parameters for heat regulations Remove the front cover and press the [SETUP] pin for 3 seconds to enter the service area. Service Options Rooms and Devices Rooms and Devices Manage Existing Rooms Select Room Configure Room Select a room Heating Regulation Heating Regulation... - Page 22 DEVIlink™ CC • Forecasting method: When activating the forecast method, the system will automatically predict the heat- ing start-up time necessary to reach the desired room temperature at the desired time (all heat emitter types). • Maximum floor temperature: The default setting is 35 °C (electrical floor heating).
-
Page 23: Removing A Room Or A Service Device
DEVIlink™ CC 5�3 Removing a room or a service device Preferred method for removing a device: Individual devices can be removed by pressing and holding any but- ton on the device, while switching the power on/off. Keep pressing any button for approx. 5 seconds after reconnect- ing the power. -
Page 24: Factory Reset Of Devilink™ Cc
DEVIlink™ CC To replace a device, while retaining all settings for that device, use the function [Replace any device] and follow the instructions given on the screen. By using this function, all settings for that particular device, are transferred to the new unit. 5�4 Factory reset of DEVIlink™... -
Page 25: Connect To App
DEVIlink™ CC House Control Settings Customize System Wi-Fi and Apps Wi-Fi and Apps 1 Press 2 Select your Wi-Fi network and enter Wi-Fi password 3 Press 6�2 Connect to App When the DEVIlink™ CC is connected to a Wi-Fi network with internet access, it can be connected to a Smart Device, using the Danfoss Link App. -
Page 26: Edit Connected Devices
DEVIlink™ CC House Control Customize System Settings Wi-Fi and Apps Wi-Fi and Apps App Options App Options Add App Add App Connect App Follow the instructions on the screen. 6�3 Edit connected devices Connected devices can be removed from the system with- out resetting all remote settings Installation Guide... -
Page 27: Upgrading Software Version
DEVIlink™ CC House Control Customize System Settings Wi-Fi and Apps Wi-Fi and Apps App Options App Options Remove App Remove App Remove App Remove Selected Remove All Upgrading software version DEVIlink™ software is upgradable. New software versions are published on www.link.danfoss.com. Installation Guide... - Page 28 DEVIlink™ CC Upgrading the software automatically: If you have enabled Wi-Fi and selected Automatic software update the DEVIlink™ will automatically upgrade to the latest software version. Upgrade the software manually: Download the software upgrade to a USB key, and insert the USB key in the USB port.
-
Page 29: Warnings
DEVIlink™ CC Warnings If a warning or an alert occurs, a yellow alert icon will be shown on the standby screen. Follow the procedure to find more information. Start House Control House Control Alerts Installation Guide... -
Page 30: Alert Icons
DEVIlink™ CC 8�1 Alert Icons Battery warning Critical battery level Low battery level Device not responding Too many dead devices Heating turned off in a room Tamper proof / Restrictions enabled Manual operation Icon for floor temperature Icon for room temperature Icon for TRV Installation Guide... -
Page 31: Technical Specifications And Approvals
DEVIlink™ CC Technical specifications and approvals DEVIlink™ CC Operation voltage 15 V DC ±10% Standby power consumption Max. 2 W Screen 3.5” TFT colour w. touch Ambient temperature -10 to +40 °C Storage temperature -20 to +65 °C Ball pressure test temperature 75 °C Pollution degree 2 (domestic use) - Page 32 DEVIlink™ CC DEVIlink™ PSU (In-Wall) Operation voltage 100-250 V AC 50/60 Hz Recommended protection fuse Max. 16 A Output voltage 15 V DC ±10% Standby power consumption Max. 0.15 W Max. load 10 W Recommended 1.5 mm Cable specifications max. 2 x 2.5 mm DEVIlink™...
-
Page 33: Warranty
DEVIlink™ CC The DEVIlink™ CC is tested for safety and EMC requirements as specified in EN60730-1 and EN60730-2-9. Warranty Disposal instructions Installation Guide... - Page 34 DEVIlink™ CC Installation Guide...
- Page 35 This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. DEVI and the DEVI logo-type are trademarks of Danfoss A/S. All rights reserved. Installation Guide 08095908 &...
