Infratec™ 1241 Grain Analyzer
J1
LCD Backlight
J3
LCD
J6
I2C Bus
J7
Remote I/O Power (optional)
P1
From Transformer
P5
Lamp
P7
DSP Board Power
Service Manual 1001 5015 / Rev. 4

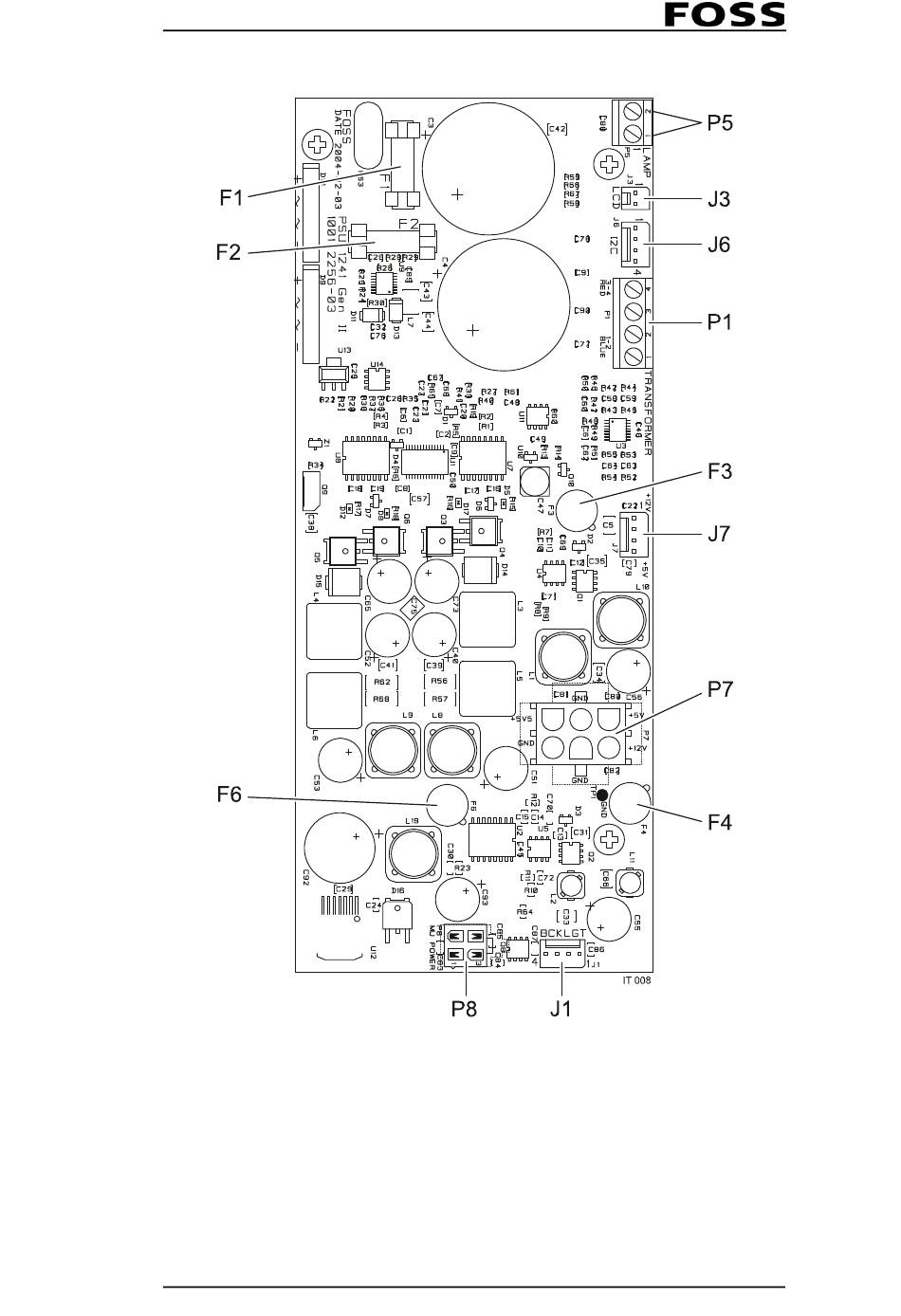

Fig. 2:11 Power Supply Board
P8
F1
F2
F3
F4
F6
Measuring Unit Power
Fuse 6.3 AT M
Fuse 1.25 AT T
Fuse 4.0 AT
Fuse 500 mAT
Fuse 4.0 AT
2:13
