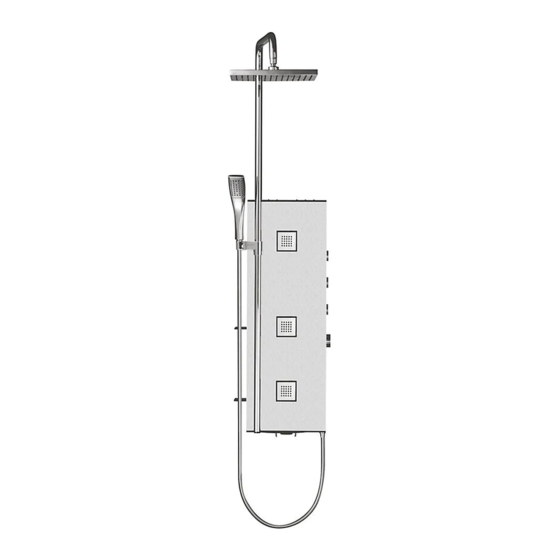

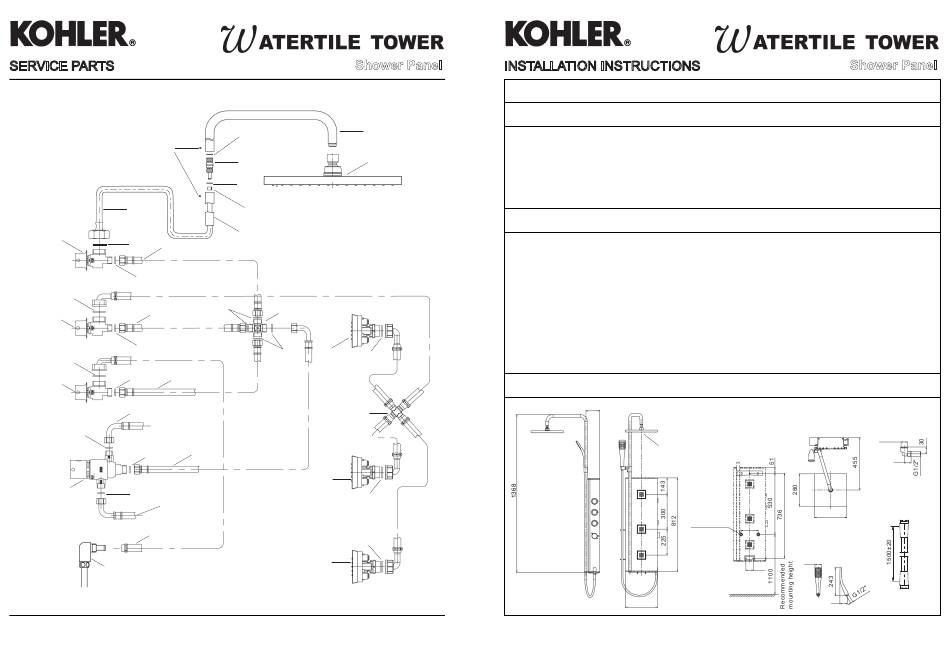

SERVICE PARTS
3866
3872
832751
Screw
3010770
Hose
3008315**
Flow Handle
3008254
3008647
Washer
Hose
3007075
Washer
3008254
Washer
3008313**
3008646
Flow Handle
Hose
3007075
3008254
Washer
Washer
3008314**
3007075
3008647
Flow Handle
Washer
Hose
3008427
Hose
831289
Washer
3007075
Washer
3008162**
831289
Temperature
Washer
Handle Assy
3008427
Hose
1123845
Hose Assy
3007794
Handshower Outlet Elbow
**Color code must be specified when ordering
1075723-2A-D
Shower Panel
SHOWER PANEL PIPES
3010558**
870858
Tube Assy
O-ring
3008557**
3007162
Shower Head
Bush
(Not for 3866)
870858
O-ring
3008426
Clamp
3010771**
Straight Tube Assy
3007075
3008645
Washer
Cross Connector
3007325**
3007075
3007075
Watertile
Washer
Washer
1123846
Cross Hose
Assy
3008648
Hose
3007325**
Watertile
3007075
Washer
3007075
Washer
3007325**
Watertile
Installation INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co.
reserves the right to make changes in product characteristics, packaging, or availability at any time without
notice.
Please leave these instructions for the consumer. They contain important information.
OPERATION CONDITION
1. Minimum supply pressures: 2 bar(0.2MPa). Maximum supply pressures: 8 bar(0.8MPa).
2. Recommended supply pressures: 3 bar on hot and cold water.
3. Pressure difference between hot & cold supplies: 2bar maximum.
4. Hot supply water temperatures, minimum: 50ºC, maximum: 70ºC.
5. Recommended hot supply water temperature:60ºC.
6. Setting range, approximately: 20ºC to 50ºC.
7. Safety stop at: 38ºC.
8. The highest environment temperature for handspray & showerhead is 60ºC. Please keep handspray &
showerhead away from heater, or maybe damage it and hurt user.
ROUGH-IN DIMENSIONS
120
8
1075723-2A-D
3866
3872
SHOWER PANEL
Dounting Dimensions
Shower Head
(Not for 3866)
Supply Pipes
150
G3/4"
57
65
Floor of bath room
278
Shower Panel
Planform
Inlet Elbows
G3/4"
30
Hose
280
G1/2˝
Handspray
(Not for 3866)
G1/2˝
65
1
