Installing the antenna
12

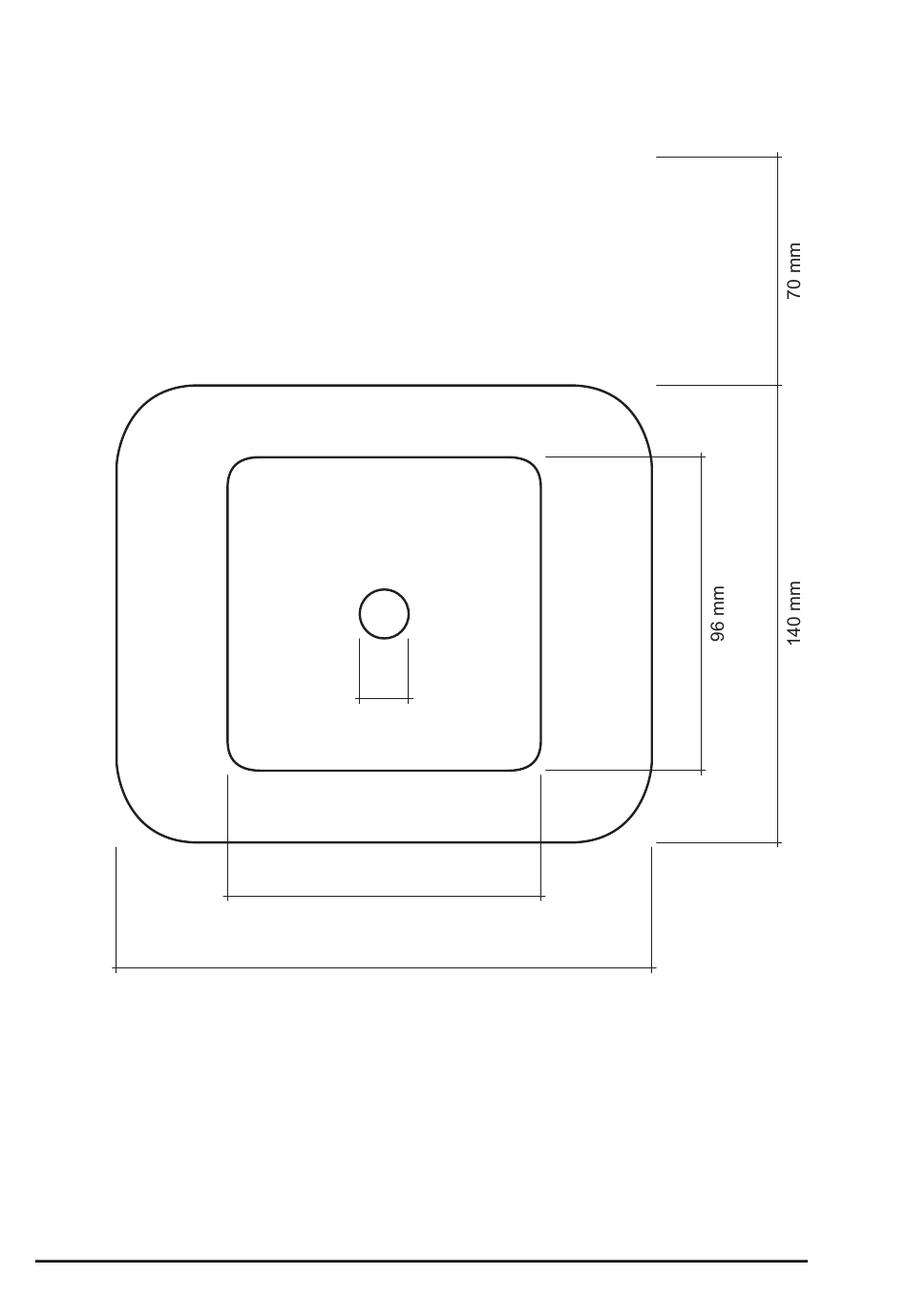

Figure 4:
Mounting footprint
NOTE
Allow 70 mm over the
cable connections and for
minimum bending radius
Connectors
15 mm
96 mm
164 mm
Automatic Whip Antenna 3040 Installation Handbook
