Automatic Whip Antenna 3040 Installation Handbook

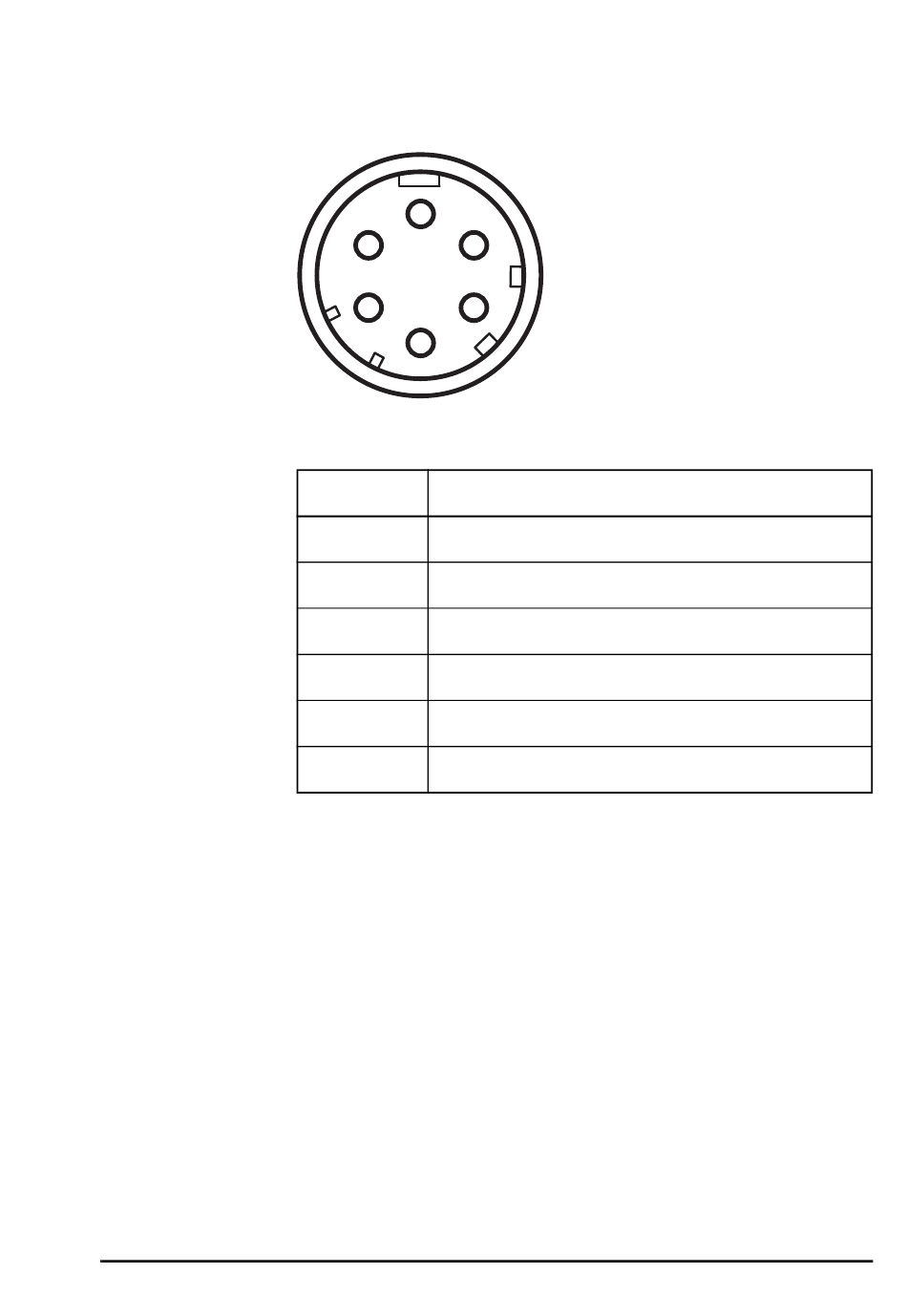

Figure 3: Front view of the antenna control connector
A
F B
E C
D
Table 1: Pinouts for the antenna control connector
Pin no. Description
A +12 V DC
B Earth
C Tune
D Scan
E Tune status indicator
F Not used
Overview
7
