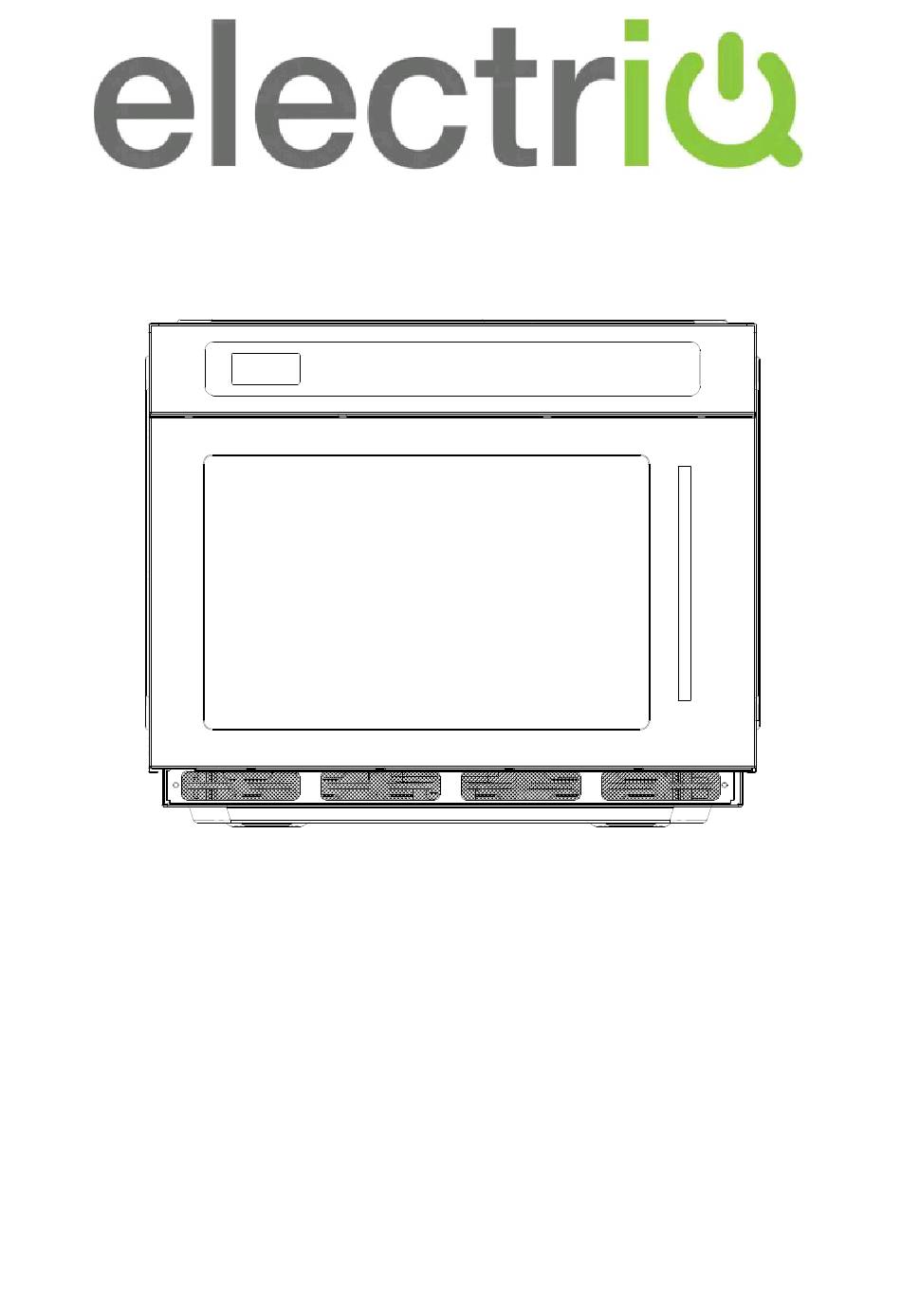

INSTRUCTION MANUAL MICROWAVE OVEN eiQCMW30L Read these instructions carefully before using your microwave oven, and keep them safe for future reference.
PRESET COOKING SAVE A MULTISTAGE PRESET FAST START FOR PRESETS X2 PRESET BUTTON COUNT OF OPERATIONS SWITCH ADJUST THE COOKING TIME CHILD LOCK FACTORY RESET CARE AND CLEANING USE OF SUITABLE UTENSILS REPLACEMENT OF LIGHT BULB TROUBLESHOOTING SPECIFICATIONS ELECTRIQ UK SUPPORT...
PRECAUTIONS AVOID POSSIBLE EXPOSURE EXCESSIVE MICROWAVE ENERGY 1. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. 2.
Page 4
The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
Page 5
surface. Even if the container only vibrates a little, the hot liquid may suddenly boil over and spatter. When heating, always place a spoon in the container. This will prevent delayed boiling. Risk of injury! Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
Page 6
TO REDUCE THE RISK OF INJURY TO PERSONS ENSURE THE UNIT IS CORRECTLY EARTHED. DANGER: Electric Shock Hazard - Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING: Electric Shock Hazard - Incorrectly earthed units can result in electric shock.
SETTING UP YOUR OVEN Ventilation slots and intakes must not be covered. Remove all packing material and accessories. Examine the oven for any damage such as dents or damage to the door. Do not attempt to use if the oven is damaged. Select a level surface that provides enough open space for the intake and outlet vents.
YOUR NEW APPLIANCE Use this section to familiarise yourself with your new appliance. The control panel and the individual operating controls are explained. You will find information on the cooking compartment and the supplied accessories NAMES OF OVEN PARTS Remove the oven and all materials from the carton and oven cavity. 1.
THE CERAMIC BOARD Your microwave is supplied with a removable ceramic board, you can install or remove it following the steps below: TO INSTALL THE CERAMIC BOARD : 1. Unplug the microwave. Do not install the ceramic board until the cavity has cooled down to prevent burns or scalding.
Page 10
TO REMOVE THE CERAMIC BOARD: 1. Unplug the microwave. Do not remove the ceramic board until the cavity and board have cooled down to prevent burns or scalding. 2. Gently pull the ceramic board along the grooves from the cavity, do not overexert or shake it to prevent damage.
CONTROL PANEL NUMBER BUTTONS STOP/RESET Press these buttons to set Press to stop or cancel a the cooking time, set a cooking program. cooking program etc. DISPLAY Shows Cooking time, POWER LEVEL Power, indicators and Press to select the present time. cooking power.
OPERATION INSTRUCTIONS When the microwave is powered on, it will bleep, the display will illuminate blue and will show ”0”, the oven enter standby mode. The microwave will return to standby mode if there is not any input within 20 seconds. ...
PRESET COOKING It is possible to save frequently used cooking program to a number key, allowing it to be conveniently activated. Each of the number buttons are pre-set with a cooking program. In standby mode, press any of the ten number buttons to select the program and press START to run it. The following are the default settings for each of the number buttons.
HOW TO USE THE X2 PAD Extra cooking programs can be saved under the number buttons using the X2 function. In standby mode, press the X2 button, then touch any of the ten number buttons to select the program and press START to run it. The following are the default settings for each of the number buttons Number Button...
COUNT OF OPERATIONS You can read the count of how many times the microwave has been used. To do this, In standby, press and hold the STOP/RESET button and press the POWER LEVEL button at the same time. The number on display shows how many times the microwave has been used. This function is for the user to analyse the usage of the microwave and the traffic flow at a particular location where the microwave is being used commercially.
CARE AND CLEANING With careful care and cleaning your microwave oven will retain its looks and remain in good order. We will explain here how you should care for and clean your appliance correctly. Risk of electric shock! Penetrating moisture may cause an electric shock. Do not use any high- pressure cleaners or steam cleaners.
USE OF SUITABLE UTENSILS See the table on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test: 1.
REPLACEMENT OF THE LIGHT BULB The lamp within the microwave is replaceable. Before replacing the bulb ensure that the unit is disconnected from power by removing the plug from the microwave. The bulb must be replaced by a competent Bulb Type:E14A/T170 230v~ 240v / 20w 1.
NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. electriQ UK Support www.electriQ.co.uk/support 0871 620 1057 Office hours: 9AM - 5PM Monday to Friday www.ElectrIQ.co.uk...
