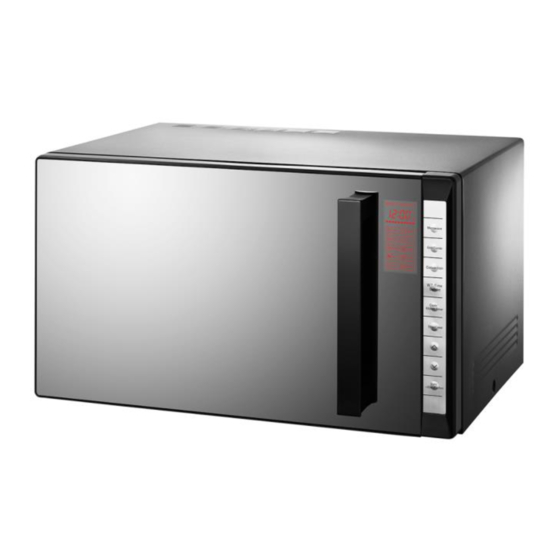

- Page 1 INSTRUCTION MANUAL MICROWAVE OVEN Model: EIQMW25LBL Read these instructions carefully before using your microwave oven, and keep them safe for future reference.
-
Page 3: Table Of Contents
CONVECTION COOKING (WITH PREHEAT) CONVECTION COOKING (WITHOUT PREHEAT) TIMER DEFROST BY WEIGHT DEFROST BY TIME AUTO MENU ONE TOUCH COOKING MULTI-STAGE COOKING CHILD LOCK ENQUIRY FUNCTION NOTER REGARDING OPERATION USE OF SUITABLE UTENSILS CARE AND CLEANING TROUBLESHOOTING SPECIFICATION ELECTRIQ UK SUPPORT... -
Page 4: Important Safety Information
PRECAUTIONS AVOID POSSIBLE EXPOSURE EXCESSIVE MICROWAVE ENERGY 1. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. 2. - Page 5 The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
- Page 6 surface. Even if the container only vibrates a little, the hot liquid may suddenly boil over and spatter. When heating, always place a spoon in the container. This will prevent delayed boiling. Risk of injury! Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
- Page 7 TO REDUCE THE RISK OF INJURY TO PERSONS ENSURE THE UNIT IS CORRECTLY EARTHED. DANGER: Electric Shock Hazard - Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING: Electric Shock Hazard - Incorrectly earthed units can result in electric shock.
-
Page 8: Setting Up Your Oven
SETTING UP YOUR OVEN Ventilation slots and intakes must not be covered. Remove all packing material and accessories. Examine the oven for any damage such as dents or damage to the door. Do not attempt to use if the oven is damaged. Select a level surface that provides enough open space for the intake and outlet vents. -
Page 9: Your New Appliance
YOUR NEW APPLIANCE Use this section to familiarise yourself with your new appliance. The control panel and the individual operating controls are explained. You will find information on the cooking compartment and the supplied accessories NAMES OF OVEN PARTS Remove the oven and all materials from the carton and oven cavity. A) Control panel B) Turntable shaft C) Turntable ring assembly... -
Page 10: Control Panel
CONTROL PANEL DISPLAY Function Indicators Time/ Weight Display Auto Menu Display Microwave Mode Convection Mode Grill Mode Defrost Mode Child Lock Auto Mode... -
Page 11: Operation Instructions
OPERATION OF THE MICROWAVE When first powered "0:00", will be displayed on the screen of the microwave and it will bleep once. SETTING THE CLOCK Press CLOCK/KITCHEN TIMER,"00:00" displays. Press to adjust the hour value, this should be between 0 and 23. Press CLOCK/KITCHEN TIMER and the minute value will flash. -
Page 12: Combination Cooking
COMBINATION COOKING Press the GRILL/COMBI button once, and "G-1" will be displayed. Press GRILL/COMBI repeatedly or press to select the combination mode required. Display Convection Microwave Grill Press START/+30SEC./CONFIRM to confirm the mode. Press to adjust the cooking time between 0:05 and 95:00. Press START/+30SEC./CONFIRM to start cooking. -
Page 13: Convection Cooking (Without Preheat)
CONVECTION COOKING (WITHOUT PRE-HEATING FUNCTION) Press the CONVECTION button once, and "150" will flash on the display. Keep pressing CONVECTION or press to select the oven temperature. Note: The temperature can range from 150 to 240 degrees. Press the START/+30SEC./CONFIRM button to confirm the temperature displayed. - Page 14 AUTO MENU TABLE Menu Weight Power 200 g 300g 400 g 1 (230g) 2 (460g) P100 3 (690g) P100 P100 1 (around 240g) 2 (around 480g) P100 3 (around 720g) 50 (add 450g of cold water) 100 (add 800g of cold water) 150 (add 1200g of cold water) P100 Preheat 180°C...
-
Page 15: One Touch Cooking
ONE TOUCH COOKING With the microwave in standby, press the START/+30SEC./CONFIRM button to cook at 100% power level for 30 seconds. Each additional press of the button will increase the cooking time by 30 seconds. The maximum cooking time is 95 minutes. -
Page 16: Noter Regarding Operation
NOTES REGARDING OPERATION START/+30 SEC./CONFIRM must be pressed to continue cooking if the door is opened during cooking; While the cooking time is been entered, if START/+30 SEC/CONFIRM is not pressed within 5 minutes. The microwave will return to standby. ... -
Page 17: Use Of Suitable Utensils
USE OF SUITABLE UTENSILS See the table on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test: 1. -
Page 18: Care And Cleaning
CARE AND CLEANING With careful care and cleaning your microwave oven will retain its looks and remain in good order. We will explain here how you should care for and clean your appliance correctly. Risk of electric shock! Penetrating moisture may cause an electric shock. Do not use any high- pressure cleaners or steam cleaners. -
Page 19: Troubleshooting
The food was colder than usual. Stir or turn the food during cooking. SPECIFICATION Model: EIQMW25LBL Rated Voltage: 240V~ 50Hz Rated Output Power (Microwave) 900 W Rated Input Power (Microwave) 1500W... -
Page 20: Electriq Uk Support
ElectrIQ UK Support www.ElectrIQ.co.uk/support 0871 620 1057 Office hours: 9AM - 5PM Monday to Friday www.ElectrIQ.co.uk Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA...
