Pedigo P-2205 Operation & Care Manual

Blanket warming cabinet
Hide thumbs Also See for P-2205:
Table of Contents

Advertisement

Quick Links

Blanket Warming Cabinet
P-2205
(shown with optional timer)
(shown with optional timer)
Elite Series
P-2220
P-2210
(shown with optional timer)

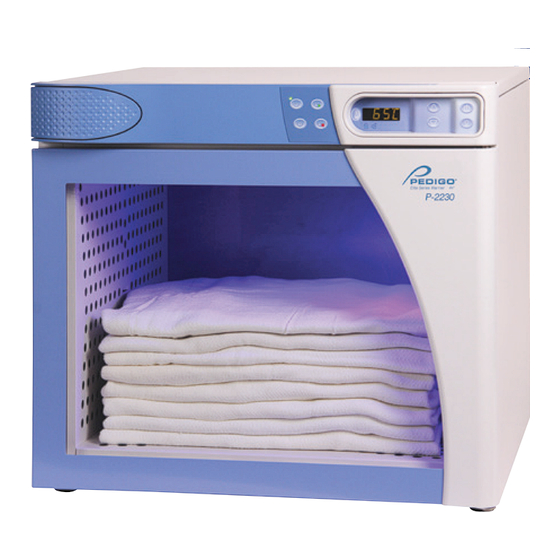

P-2230
OPERATION & CARE
MANUAL
P-2205
P-2210
P-2220
P-2230
P-2240
P-2240
OPERATION & CARE
M N - 3 7 0 7 3 ( M M - 1 0 7 4 ) R e v 0 ( 0 7 / 1 5 )
3
1.5ft
3
2.5ft
3
3.5ft
3
4.0ft
3
7.5ft

Advertisement

Table of Contents
loading

Related Manuals for Pedigo P-2205

Summary of Contents for Pedigo P-2205

  • Page 1 OPERATION & CARE MANUAL Elite Series Blanket Warming Cabinet P-2205 1.5ft P-2210 2.5ft P-2220 3.5ft P-2230 4.0ft P-2240 7.5ft P-2220 P-2210 P-2205 (shown with optional timer) P-2240 (shown with optional timer) P-2230 (shown with optional timer) OPERATION & CARE M N - 3 7 0 7 3 ( M M - 1 0 7 4 ) R e v 0 ( 0 7 / 1 5 )

  • Page 2: Table Of Contents

    P-2205 ........

  • Page 3: Environmental Conditions

    D A M A G E & C L A I M S 3. Note all damage to packages directly on the carrier’s All Pedigo Products, Inc. equipment is sold F.O.B. shipping point, and when accepted delivery receipt. by the carrier, such shipments become the 4.

  • Page 4: Unpacking

    U N P A C K I N G A N D S E T - U P • Carefully remove the appliance from the carton (A) or crate (B) NOTICE: Do not discard the carton and other packaging material until you have inspected the unit for hidden damage and tested it for proper operation.

  • Page 5: Safety Procedures And Precautions

    S A F E T Y P R O C E D U R E S A N D P R E C A U T I O N S Knowledge of proper procedures is essential to the safe 1. This blanket warmer is intended for warming DRY, cotton operation of electrically energized equipment.

  • Page 6: Preparation

    The power specifications are located on the unit identification rating tag. This tag is permanently attached to the unit and must be located to verify power requirements. Hazardous Voltage Present P-2205 120 V.A.C. — 60 Hz, 1 ph NEMA 5-15P 15A - 125V Plug 0.6 kW, 5.0 Amps...

  • Page 7: General Information

    E L E C T R I C A L I N F O R M A T I O N D A N G E R D A N G E R TO PREVENT SERIOUS INJURY, Ensure power source matches DEATH, OR PROPERTY DAMAGE: voltage identified on appliance rating DO NOT use this warming appliance...

  • Page 8: P-2205

    D I M E N S I O N S P-2205 Dimensions (HxWxD) 17.0" x 18.5" x 22.7" (431mm x 470mm x 577mm) With feet 20.5" x 18.5" x 22.7" (521mm x 470mm x 577mm) With casters Capacity 1.5 ft Weight** (est.)

  • Page 9: P-2205

    D I M E N S I O N S P-2205 ( 9.2 " (235mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) 36.0" (914mm) 22.7" (577mm) 18.5" (470mm) 19.8" (504mm) 15.5" (394mm) 14.4" (366mm) CAVITY INSERT 14.5" (368mm) 20.0"...

  • Page 10: P-2210

    D I M E N S I O N S P-2210 Dimensions (HxWxD) 21.9" x 18.5" x 25.7" (557mm x 470mm x 653mm) With feet With plate and 26.2" x 18.5" x 25.7" (666mm x 470mm x 653mm) casters With bumper and 26.3"...
  • Page 11 D I M E N S I O N S P-2210 ( 9.3 " (235mm) IEC Cord Inlet CORD LENGTH: 6 ft (1.83m) (est.) 36.0" (914mm) 25.7" (653mm) 22.8" (580mm) 18.5" (470mm) 14.5" (369mm) 18.6" (472mm) INSERT CAVITY 15.5" (394mm) 22.2"...
  • Page 12 D I M E N S I O N S P-2210 ( 10.6" (270mm) IEC Cord Inlet CORD LENGTH: 6 ft (1.83m) (est.) 37.4" (949mm) 25.7" (653mm) 22.8" (580mm) 18.5" (470mm) 14.5" (369mm) 18.6" (472mm) INSERT CAVITY 15.5" (394mm) 25.1" (631mm) CAVITY 25.9"...

  • Page 13: P-2210

    D I M E N S I O N S P-2210 ( 9.3 " (235mm) IEC Cord Inlet CORD LENGTH: 6 ft (1.83m) (est.) 36.0" (914mm) 25.7" (653mm) 22.8" (580mm) 18.5" (470mm) 14.5" (369mm) 18.6" (472mm) INSERT CAVITY 15.5" (394mm) 22.2"...

  • Page 14: P-2220

    D I M E N S I O N S P-2220 Dimensions (HxWxD) 27.9" x 18.5" x 25.7" (709mm x 470mm x 653mm) With feet With plate and 32.2" x 18.5" x 25.7" (819mm x 470mm x 653mm) casters With bumper and 32.2"...
  • Page 15 D I M E N S I O N S P-2220 ( 9.3 " (235mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) 36.0" (914mm) 25.7" (653mm) 22.8" (580mm) 18.5" (470mm) 18.5" (470mm) CAVITY 14.5" (369mm) INSERT 22.2" (563mm) 15.5"...
  • Page 16 D I M E N S I O N S P-2220 ( 10.6 " (270mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) " 37.3 (948mm) 25.7" (653mm) 22.8" (580mm) 18.5" (470mm) 18.5" (470mm) CAVITY 14.5" (369mm) INSERT 15.5" (394mm) 25.1"...

  • Page 17: P-2220

    D I M E N S I O N S P-2220 ( 9.3 " (235mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) 36.0" (914mm) 25.7" (653mm) 22.8" (580mm) 18.5" (470mm) 18.5" (470mm) CAVITY 14.5" (369mm) INSERT 22.2" (564mm) 15.5"...
  • Page 18 D I M E N S I O N S P-2230 Dimensions (HxWxD) 21.9" x 24" x 28" (557mm x 610mm x 712mm) With feet With plate and 26.1" x 24" x 28" (664mm x 610mm x 712mm) casters With bumper and 26.2"...
  • Page 19 D I M E N S I O N S P-2230 ( 12 " (305mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) 47.0" (1194mm) 28.0" (712mm) 24.0" (610mm) 25.1" (638mm) 20" (507mm) 21" (533mm) INSERT CAVITY 21.0" (533mm) 24.4"...
  • Page 20 D I M E N S I O N S P-2230 ( 13.4 " (339mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) 48.4" (1229mm) 28.0" (712mm) 24" (610mm) 25.1" (638mm) 21.0" (533mm) 20" (507mm) CAVITY INSERT 21.0" (533mm) 27.4"...
  • Page 21 D I M E N S I O N S P-2230 ( 12 " (305mm) IEC Cord Inlet 47.0" (1194mm) 28.0" (712mm) 24.0" (610mm) 25.1" (638mm) 20" (507mm) 21" (533mm) INSERT CAVITY 21.0" (533mm) 24.4" (621mm) CAVITY WITH OPTIONAL CASTERS M N - 3 7 0 7 3 (M M1 07 4 ) R ev 0 (07 / 15) •...
  • Page 22 D I M E N S I O N S P-2240 Dimensions (HxWxD) 35.4" x 24.0" x 28.0" (900mm x 610mm x 710mm) With feet With plate and 39.3" x 24.0" x 28.0" (997mm x 610mm x 710mm) casters With bumper and 39.3"...
  • Page 23 D I M E N S I O N S P-2240 ( 12.0 " (305mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) 47.0" (1194mm) 28.0" (710mm) 25.1" (637mm) 24.0" (610mm) 21.0" (533mm) CAVITY 19.9" (506mm) INSERT 21.0" (533mm) 18.7"...
  • Page 24 D I M E N S I O N S P-2240 ( 13.4" (340mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) 48.3" (1228mm) 28.0" (712mm) 24.0" (610mm) 25.1" (637mm) 21.0" (533mm) CAVITY 19.9" (506mm) INSERT 21.0" (533mm) 27.4" (695mm) CAVITY 26.8"...

  • Page 25: P-2240

    D I M E N S I O N S P-2240 ( 12.0 " (305mm) IEC Cord Inlet Cord length: 6 ft (1.83m) (est.) 47.0" (1194mm) 28.0" (710mm) 25.1" (637mm) 24.0" (610mm) 21.0" (533mm) CAVITY 19.9" (506mm) INSERT 21.0" (533mm) 25.2"...

  • Page 26: General Warnings

    G E N E R A L W A R N I N G S WARNING The unit requires special precautions regarding EMC A risk of increased emissions or decreased immunity (Electromagnetic Compatibility) and needs to be installed may result if the power cord attached is altered or a and put into service according to the EMC information manufacturer supplied power cable is not used.
  • Page 27 Guidance and manufacturer’s declaration - electromagnetic emissions The unit is intended for use in the electromagnetic environment speci ed below. The customer or the end user of this unit should assure that it is used in such an environment. Compliance IEC 60601 test Immunity test Electromagnetic environment - guidance...

  • Page 28: Blanket Control Features

    B L A N K E T C O N T R O L F E A T U R E S Temperature Range: Control and LED Display 32°-72° C (90°-160°F) ON/OFF TEMPERATURE button button RECALL button Error Button lockout DOWN INTERIOR indicator light...

  • Page 29: Optional Features

    O P T I O N A L F E A T U R E – T I M E R C O N T R O L 4. Press the UNIT TIME button again to set the date. Optional Timer Control SET OR VIEW Press the UP or DOWN button to adjust the date.

  • Page 30: Operation Procedures

    B L A N K E T C H A M B E R O P E R A T I O N P R O C E D U R E S The appliance should be plugged into an appropriate hospital grade receptacle as speci ed on the electrical information page.

  • Page 31: Care And Cleaning Cleaning And Preventative Maintenance Protecting Stainless Steel Surfaces

    C L E A N I N G A N D P R E V E N T I V E M A I N T E N A N C E PROTECTING STAINLESS STEEL, EPOXY COATED AND CLEANING MATERIALS PLASTIC SURFACES Cleaning can usually be accomplished with the proper cleaning It is important to guard against corrosion...

  • Page 32: Clean The Unit Regularly

    C A R E A N D C L E A N I N G 1. Disconnect the cabinet from the power source. 4. Interior can be wiped with a sanitizing solution after cleaning and rinsing. This solution must be approved 2.

  • Page 33: Troubleshooting Guide

    T R O U B L E S H O O T I N G G U I D E NOTICE: If your unit is not operating properly, check the following before calling your authorized service agent. Check the power applied to the unit.

  • Page 34: Fuse Replacement

    T R O U B L E S H O O T I N G G U I D E S E R V I C E E-95 Factory Test pin Ensure no debris is causing a short between the test pins. If pins are good, replace control. short detected.

  • Page 35: Options & Accessories

    S E R V I C E O P T I O N S & A C C E S S O R I E S P A R T S L I S T P-2205 P-2210 P-2220 P-2230 P-2240 BUMPER &...

  • Page 36: Full Assembly Service View

    S E R V I C E FULL ASSEMBLY A Item Description Part Item Description Part S IDE COVER, 1.5ft 1011024 2 REAR COVER, STAINLESS STEEL, 1.5ft 1014262 1 SIDE COVER, STAINLESS STEEL, 1.5ft 1014261 2 REAR COVER, 2.5ft 5013521 1 SIDE COVER, 2.5ft 1011269 2 REAR COVER, STAINLESS STEEL, 2.5ft...
  • Page 37 S E R V I C E FULL ASSEMBLY B Item Description Part Item Description Part BLANKET SUPPORT BOTTOM, 1.5ft 1011045 DOOR ASSEMBLY, PAINTED W/ LOCK, 1.5ft 5018255 BLANKET SUPPORT BOTTOM, 2.5ft 1011265 DOOR ASSEMBLY, STAINLESS STEEL W/ LOCK, 1.5ft 5018260 BLANKET SUPPORT BOTTOM, 3.5ft 1011265...
  • Page 38 S E R V I C E FULL ASSEMBLY C Item Description Part Item Description Part CHASSIS, 3-ZONE, 120V, 1.5ft /2.5ft 5017792 SPRING, DOOR, 2.5ft /3.5ft /4.0ft /7.5ft SD-29467 CHASSIS, 4-ZONE, 120V, 3.5ft /4.0ft /7.5ft 5017793 UPPER HINGE, ASSEMBLY 5015522 BUMPER FEET, RUBBER,1.5ft /2.5ft /3.5ft...

  • Page 39: Electrical Chassis Service View

    S E R V I C E ELECTRICAL CHASSIS Item Description Part WIRE ASSEMBLY, CONTROL, ALL VERSIONS, 5018056 NOT SHOWN POWER SUPPLY, 20W BA-34965 1 RELAY BOARD, 3-ZONE, 120V, 1.5ft /2.5ft BA-35106 1 RELAY BOARD, 4-ZONE, 120V, 3.5ft /4.0ft /7.5ft BA-35107 1 CABLE, RELAY BOARD CB-35193 1...

  • Page 40: Door Latch & Sensor Service View

    S E R V I C E DOOR LATCH & SENSOR Item Description Part PLATE, LATCH PULL, 1.5ft 1011197 PLATE, LATCH PULL, 2.5ft /4.0ft 1011263 PLATE, LATCH PULL, 3.5ft 1011295 PLATE, LATCH PULL, 7.5ft 1011850 GUIDE, LOW PROFILE RAIL, 1.5ft GI-29204 GUIDE, LOW PROFILE RAIL, 2.5ft /3.5ft...

  • Page 41: Control Interface Service View

    S E R V I C E CONTROL INTERFACE Item Description Part PANEL, INTERFACE MOUNT, 18.5", 1.5ft /2.5ft /3.5ft 1011336 PANEL, INTERFACE MOUNT, 24", 4.0ft /7.5ft 1011482 PANEL, FRONT TOP TRIM, PAINTED, 18.5", 1.5ft /2.5ft /3.5ft 1011032 PANEL, FRONT TOP TRIM, PAINTED, 24", 4.0ft /7.5ft 1011481 PANEL, FRONT TOP TRIM, STAINLESS STEEL, 18.5", 1.5ft...

  • Page 42: Shelf (P-2220/P-2240) Service View

    S E R V I C E SHELF (P-2220/P-2240 Item Description Part PANEL, HEATED SHELF BOTTOM, 3.5ft 1011230 PANEL, HEATED SHELF BOTTOM, 7.5ft 1011597 PANEL, HEAT SHELF, 3.5ft 1015078 PANEL, HEATED SHELF, 7.5ft 1014609 HEATED SHELF KIT, 3.5ft 5017020 HEATED SHELF KIT 5019545 LED ASSEMBLY 5014852...
  • Page 43 Refer to wire diagram included with the unit. M N - 3 7 0 7 3 (M M1 07 4 ) R ev 0 (07 / 15) • Ped i go E l it e Se r ie s B l an k et Wa rm i n g C a bi n et s • 4 1...
  • Page 44 PEDIGO PRODUCTS, INC LIMITED WARRANTY Pedigo Products, Inc. warrants to the original purchaser that any original part that is found to be defective in material or workmanship will, at our option, subject to provisions hereinafter stated, be replaced with a new or rebuilt part.
