OPERATION & CARE
MANUAL
P-2010-S
120V
P-2010-S
BLANKET WARMING CABINET
OPERATION & CARE
M M - 1 0 7 0 • 0 5 / 2 1
.
.
.
P R I N T E D I N U
S
A

Advertisement

Table of Contents
loading

Related Manuals for Pedigo P-2010-S

Summary of Contents for Pedigo P-2010-S

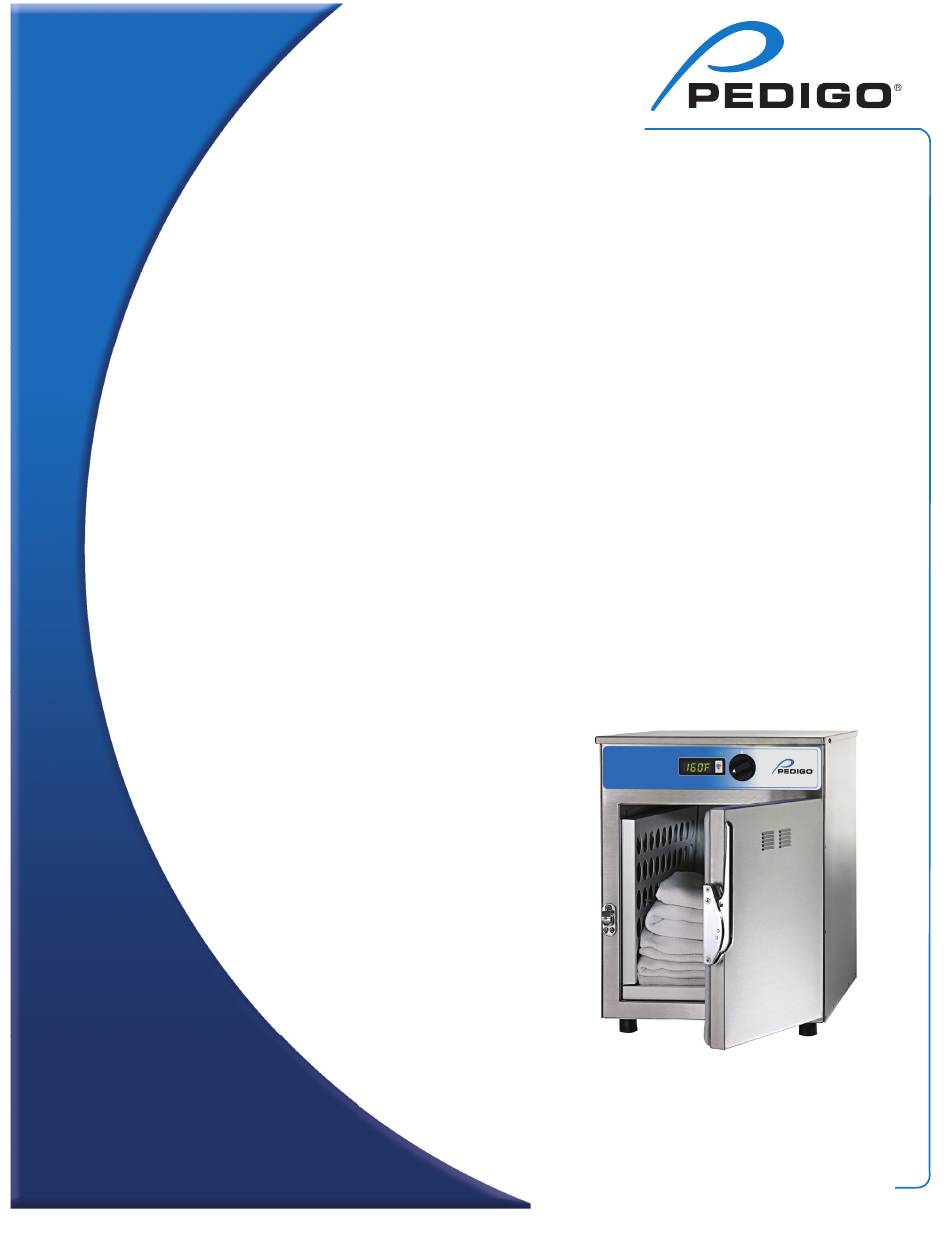

  • Page 1 OPERATION & CARE MANUAL P-2010-S 120V P-2010-S BLANKET WARMING CABINET OPERATION & CARE M M - 1 0 7 0 • 0 5 / 2 1 P R I N T E D I N U...

  • Page 2: Table Of Contents

    Clean the Unit Regularly . . . . . . . . . . . . . . . . . . . . . .10 Pedigo Products, Inc. • 4000 S.E. Columbia Way • Vancouver, WA 98661 U.S.A.

  • Page 3: Transport And Storage

    Contact the Pedigo service department if you have responsible for training operators. Additional any questions concerning installation, operation, manuals are available from the Pedigo or maintenance.

  • Page 4: Safety Procedures And Precautions

    SAFETY PROCEDURES A N D P R E C A U T I O N S Knowledge of proper procedures is essential to the 1. Pedigo blanket warmers are intended for warming safe operation of electrically energized equipment. In cotton blankets ONLY. No other use for this device is accordance with generally accepted product safety labeling authorized or recommended.

  • Page 5: Preparation

    E L E C T R I C A L I N F O R M A T I O N The power specifications are located on the unit identification rating tag. This tag is permanently attached to the unit and must be located to verify power requirements. P-2010-S POWER REQUIREMENTS - NOTE: An electrical wiring diagram for this unit can be found in a sleeve on the bottom side 120 V.A.C.

  • Page 6: General Warnings

    Guidance and manufacturer’s declaration – electromagnetic emissions The Model P-2010-S is intended for use in the electromagnet environment specified below. The customer or the end user of the Model P-2010-S should assure that it is used in such an environment.
  • Page 7 Guidance and manufacturer’s declaration - electromagnetic emissions The Model P-2010-S is intended for use in the electromagnet environment specified below. The customer or the end user of the Model P-2010-S should assure that it is used in such an environment.The P-2010-S is intended for use in the electromagnetic environment specified below.

  • Page 8: General Information

    G E N E R A L I N F O R M A T I O N This warming cabinet is designed to elevate and The cabinet is controlled by one (1) ON/OFF power switch maintain blanket temperatures to a level which will and a temperature control knob that is adjustable from 16°C increase patient comfort.

  • Page 9: Dimension Drawings, Weights & Capacities

    D I M E N S I O N S ELECTRICAL CONNECTION 1.5" (38mm) FROM TOP 16.25" (411mm) Cavity 13.25" (337mm)

  • Page 10: Blanket Chamber Operational Procedures

    O P E R A T I O N A L P R O C E D U R E S 1. The appliance should be plugged into a hospital grade, 4. The temperature display LED will illuminate when the NEMA 5-15P receptacle.

  • Page 11: Cleaning And Preventative Maintenance

    C L E A N I N G A N D P R E V E N T I V E M A I N T E N A N C E PROTECTING STAINLESS STEEL SURFACES CLEANING AGENTS It is important to guard against corrosion Use non-abrasive cleaning products designed for use on in the care of stainless steel surfaces.

  • Page 12: Care And Cleaning

    C A R E A N D C L E A N I N G The cleanliness and appearance of this equipment will contribute considerably to its operating efficiency. Make certain the cabinet and door gasket are kept free of any debris that may accumulate. Good equipment that is kept clean works better and lasts longer.

  • Page 13: Troubleshooting Guide

    E-70 Confi guration error Check wire diagram for correct DIP switch settings. (Diagram is located under Inoperative Unit the unit’s top cover behind the control.) If error code persists, contact Pedigo Service Department. E-82 or EEPROM Error - Bad Checksum Contact Pedigo Service Department for help resetting the control.

  • Page 14: Service Parts Lists And Drawings

    S E R V I C E P A R T S L I S T (SEE SERVICE VIEW ON FOLLOWING PAGE) DESCRIPTION P-2010-S P/N ELECTRICAL HARDWARE CIRCUIT BREAKER SWITCH SW-33826 CORDSET, HOSPITAL GRADE, 10ft (3m) E3025CD CONTROL, MANUAL 5012186...
  • Page 15 PART NUMBERS AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
  • Page 16 P-2010-S REFER TO WIRE DIAGRAM UNDER TOP COVER OF FOR MOST CURRENT VERSION PART NUMBERS AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

  • Page 17: Limited Warranty

    This warranty is in lieu of all other warranties expressed or implied and Pedigo 8. Promptly fi le a written claim with the carrier and attach copies of Prodcuts, Inc. neither assumes or authorizes any persons to assume all supporting paperwork.
  • Page 18 M N - 2 9 6 2 1 • 0 5 / 2 1...
