Aeroflex ATB-7300 Operation Manual

Avionics test bench
Hide thumbs Also See for ATB-7300:
Table of Contents

Advertisement

Quick Links

Download this manual

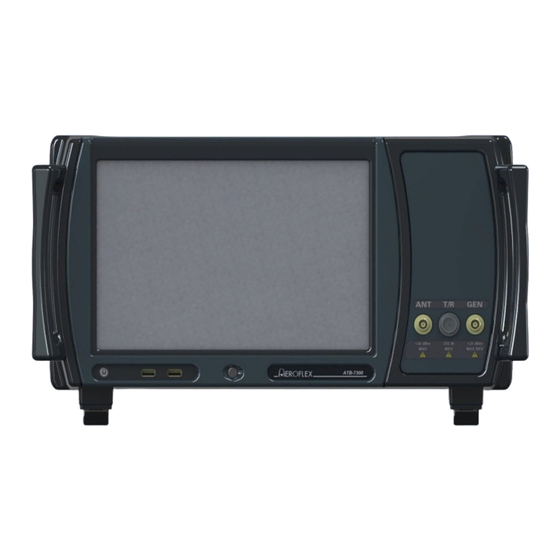

ATB-7300
Avionics Test Bench
Operation Manual
EXPORT CONTROL WARNING: This document contains controlled technical data
under the jurisdiction of the Export Administration Regulations (EAR), 15 CFR
730-774. It cannot be transferred to any foreign third party without the specific prior
approval of the U.S. Department of Commerce, Bureau of Industry and Security (BIS).
Violations of these regulations are punishable by fine, imprisonment, or both.
