Summary of Contents for Hedson IRT-UVA-1 PrepCure 4

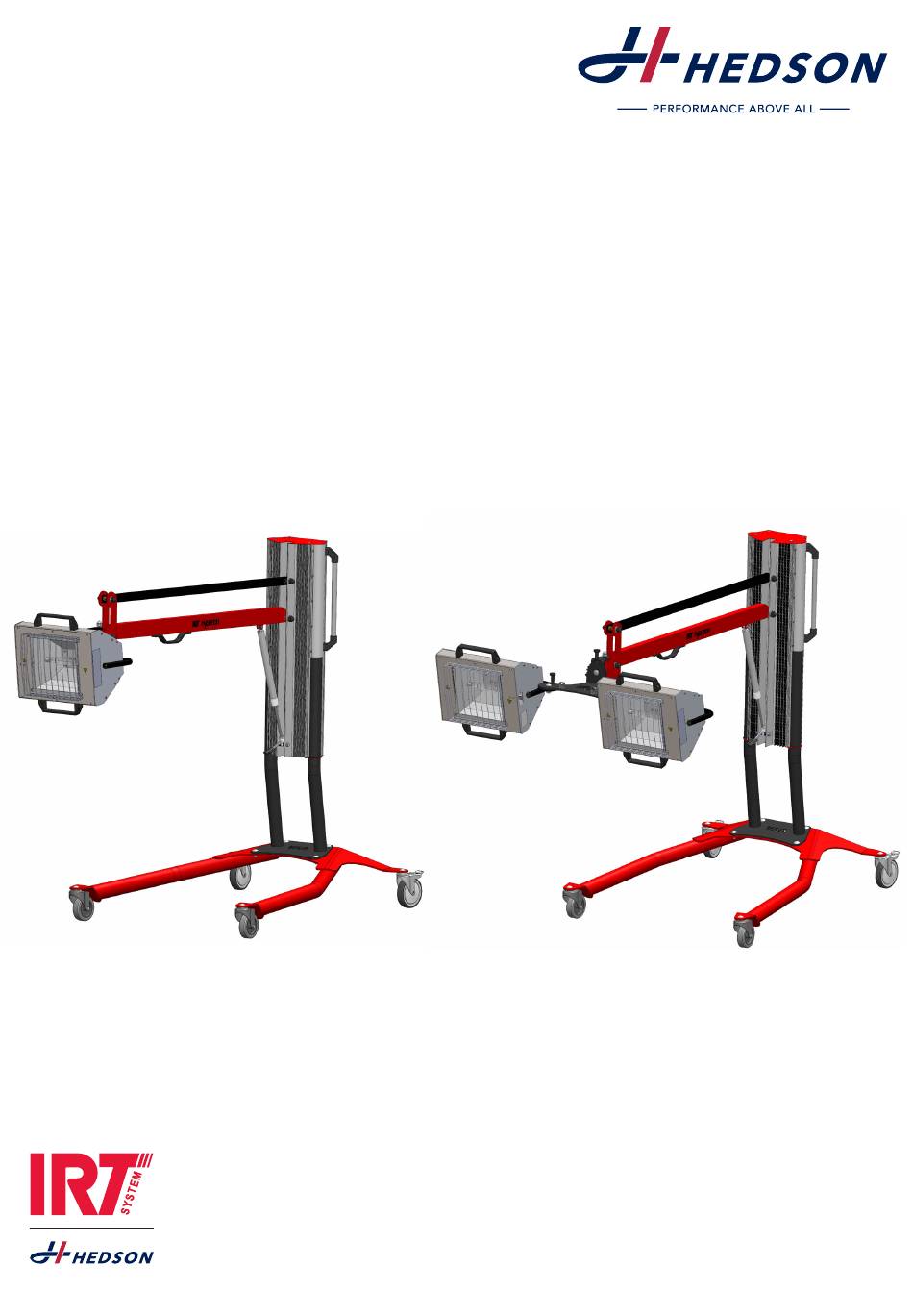

- Page 1 Instructions (ETL) IRT-UVA 1/2 PrepCure 4 Digital 714850 rev 1 © Hedson Technologies AB 2017...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety instructions ......... 3 Intended use of the product ....4 Product description ......4 Technical data ........4 Instruction to the owner ....... 4 Markings ..........5 Operation ..........5 Maintenance .......... 5 Filter replacement ......... 6 UV-lamp replacement ...... -
Page 3: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical equipment, basic precautions should WARNING always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING IRT-UVA 1/2 Prep- To reduce the risk of fire, electric shock, or injury: Cure 4 Digital • Do not leave equipment when plugged in. Unplug from outlet when not in use and before servicing. -
Page 4: Intended Use Of The Product
The ultraviolet light spectrum generated by a UV lamp interacts with special coating chemistries to produce a high- IRT-UVA-1 PrepCure 4 IRT-UVA-2 PrepCure 4 quality, durable curing. In many applications, UV curing can Voltage... -
Page 5: Markings
protection facility for recycling. The UV- radiation emission is: according to ANSI/IESNA RP27.3-07 = Ris Group 3 (RG-3) As appropriate measures; Always wear eye protection during work in areas exposed to UV-radiation. The lamp used in IRT UV-equipment have a spectrum that 714852 WARNING Eye damage may result from directly viewing the start below 250nm but is of an ozone free type. -
Page 6: Filter Replacement
11. Declaration of conformity Weekly Check that UV lamps light up during mobile dryer We, Hedson Technologies AB operation.Also, check that all cables are undamaged. A Box 1530 damaged cable can be a danger to life! SE-462 28 VÄNERSBORG Sweden... -
Page 7: Spare Parts List
12. Spare parts list Pos. Part.no Description 713472 Foot Hyperion 714156 Assembling kit Wheels 102258 Castor braked dia: 125 mm 410522 Castor dia: 100 mm 714455 Pillar stand 714471 Gas spring UVA 1 (One Cassette) 714472 Gas spring UVA 2 (Two Cassettes) 714456 714860 Filter glass... -
Page 8: Electrical Diagram
13. Electrical Diagram IRT UVA-1 PrepCure 4 230V 1 phase 714850 rev 1... - Page 9 IRT UVA-2 PrepCure 4 230V 1 phase 714850 rev 1...
-
Page 10: Dimensions
14. Dimensions 714850 rev 1... - Page 11 714850 rev 1...
- Page 12 © Hedson Technologies N.A. Inc 2016 The manufacturer reserves the right to introduce technical modifications. Hedson Technologies AB Hedson Technologies N.A. Inc Hammarvägen 4 Phone 1-866-IRT-HEAT (478-4328) 232 37 ARLÖV, Sweden www. hedsonna.com Tel. +46 40 53 42 00 sales@hedsonna.com info@hedson.com...
