Summary of Contents for Blaupunkt IL-MB23

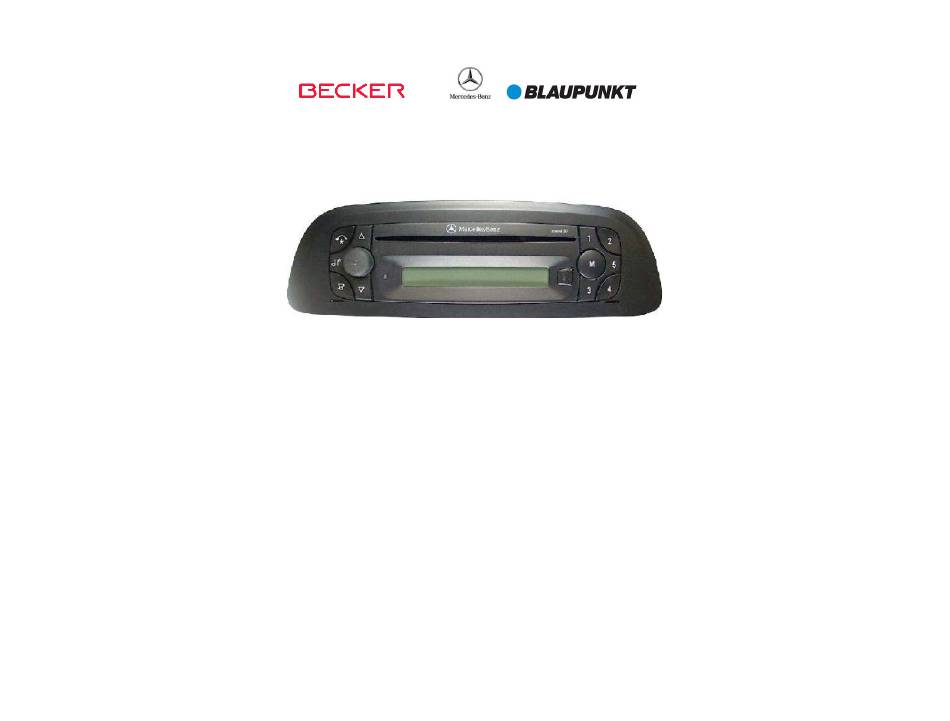

- Page 1 Courtesy of:DiscountCarStereo.com IL-MB23 Installation Guide for Sprinter & Blaupunkt with AUX Menu Option Revised: August 7, 2018...
- Page 2 Apple recently released a new generation of products and with them a new Lightning plug, and if you have an older iPod adapter it will also need updating. With the iL-MB23 you can play and charge play and charge the newest Apple products including the...
- Page 3 3. For Blaupunkt Radios For Blaupunkt Radios: : : : Connect the 10-way plug from For Blaupunkt Radios For Blaupunkt Radios adapter harness (See Fig. Fig. Fig. Fig. 3 3 3 3 ) into the (D D D D ) slot on Radio (See Fig.
- Page 4 CD Changer connection and because of that you must perform the following steps and change the setting to “AUX” otherwise the radio will not recognize the iL-MB23. Becker Sound 20 and Sound 30 Radios Becker Sound 20 and Sound 30 Radios...
- Page 5 Test Operation Test Operation Test Operation Test Operation 1. Connect your Apple iPod, iPad or iPhone to the Lightning plug 2. The Apple device will begin charging 3. Press the CD Button on Radio to enter AUX Mode. If radio does not enter AUX mode go to “Operation”...
- Page 6 CD Changer must be disconnected. Does the iL Does the iL Does the iL Does the iL- - - - MB23 work on all Blaupunkt MB23 work on all Blaupunkt MB23 work on all Blaupunkt MB23 work on all Blaupunkt Radios...
