Introduction
Description

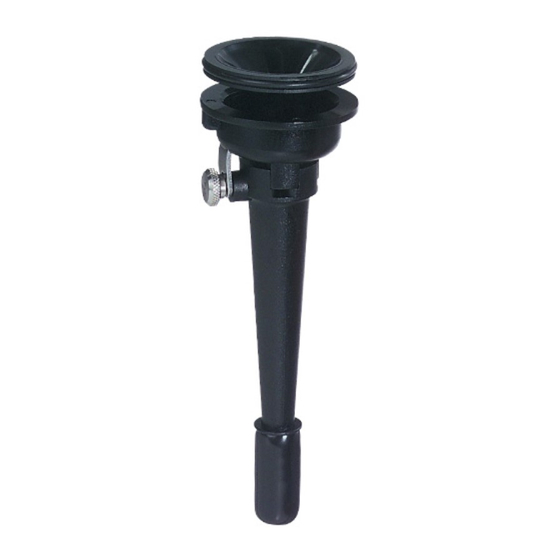

The GS-3 Cyclone is a 10-mm
lightweight conductive plastic
sampler with multiple inlets
that uses a standard three-piece
25 or 37-mm cassett e and fi lter for
collecting respirable dust particles.
The GS-3 Cyclone conforms to
the ISO 7708/CEN criteria of a
4-μm 50% cut-point at 2.75 L/min*
with minimum bias meeting the
performance criteria in OSHA's
final silica rule. Other flow rates
may be used to achieve cut-points
for alternative applications. The GS-3
Cyclone is supplied with cassette
adapter, bowl adapter, and grit pot.
* Calibrated at U.K. Health and Safety
Laboratories. Visit www.skcinc.com/
prod/225-100.asp to view the collection
effi ciency curve.
O
Required Equipment
Sample pump capable of specifi ed fl ow rate
1/4-inch ID (3/8-inch OD) Tygon
Electronic calibrator
Calibration Jar (Cat. No. 225-111)
Cassett e Holder (Cat. No. 225-1)
Filter Cassett es sampling media (225 Series)
GS-3 Multiple-inlet Cyclone
Cat. Nos. 225-100 and 225-103
Operating Instructions
863 Valley View Road, Eighty Four, PA 15330 USA
Tel: 724-941-9701 • www.skcinc.com

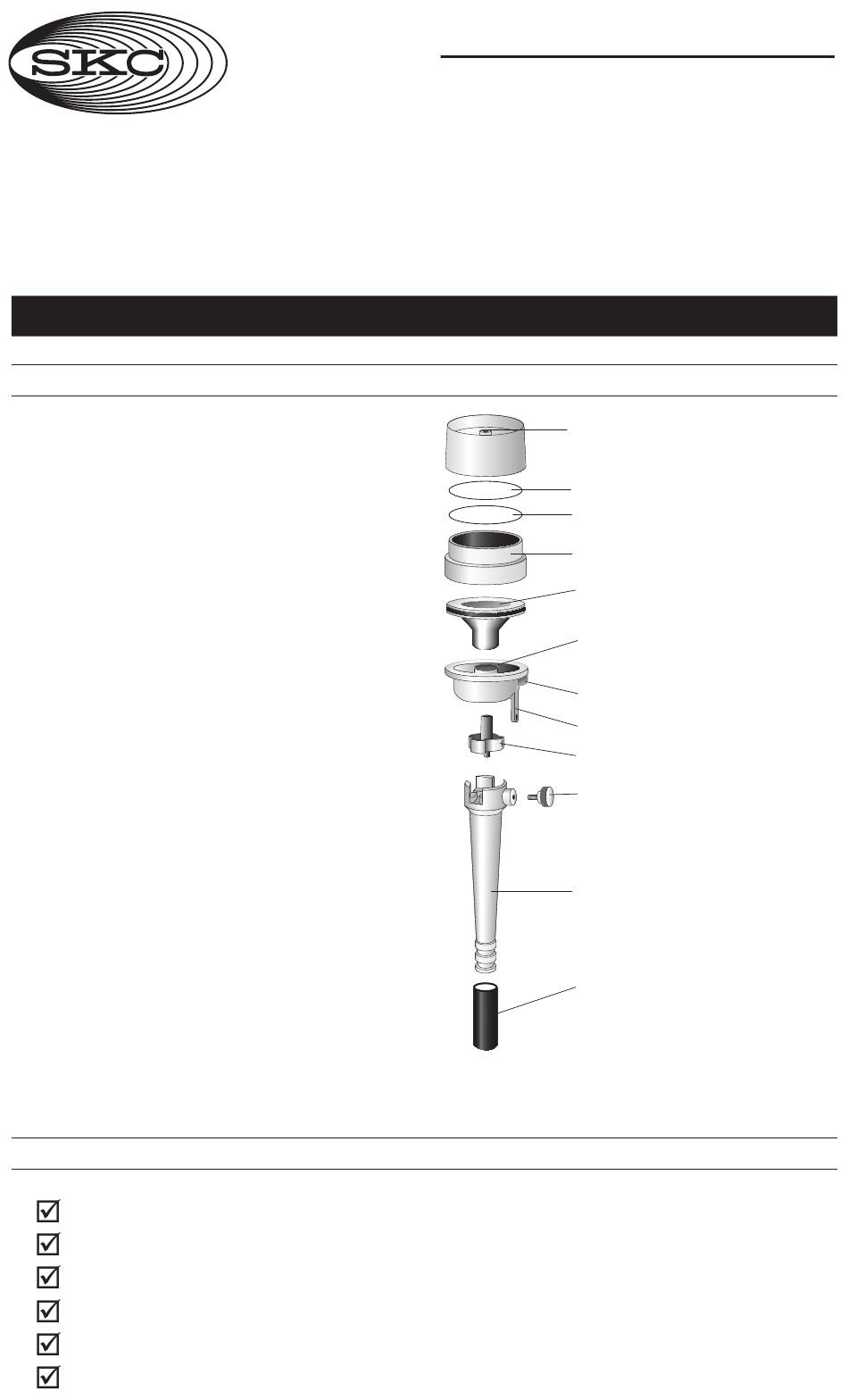

GS-3 Cyclone with fi lter cassette —
®
tubing for calibration train
Cassett e outlet
Support pad
Filter
Cassett e ring (middle)
Cassett e adapter (25 or 37 mm,
supplied assembled with cyclone body)
Bowl adapter (supplied assembled
with cyclone body)
Nodule for holder
Retaining tab
Cyclone top
Thumbscrew
Cyclone body
Grit pot
Figure 1.
exploded view
Advertisement
Table of Contents
Related Manuals for SKC GS-3 Cyclone
Summary of Contents for SKC GS-3 Cyclone
- Page 1 Laboratories. Visit www.skcinc.com/ prod/225-100.asp to view the collection effi ciency curve. Grit pot Figure 1. GS-3 Cyclone with fi lter cassette — exploded view Required Equipment Sample pump capable of specifi ed fl ow rate ® 1/4-inch ID (3/8-inch OD) Tygon...
- Page 2 Getting Started Assembling Cyclone with Cassette (Figure 1) The GS-3 Cyclone is supplied fully assembled with bowl adapter and 37 or 25-mm cassett e adapter dependent upon model (Cat. Nos. 225-100 and 225-103, respectively). Replacement cassett e adapters are available, allowing the user to adapt whichever model they are using to another cassett e size.
- Page 3 Prepare a cyclone/cassett e assembly (Figure 1). Ensure grit pot remains on cyclone body during calibration. SKC recommends using the smallest calibration jar possible. To achieve this, do NOT use Cassette Holder Cat. No. 225-1 during calibration. Place cyclone/cassett e assembly into an airtight calibration jar that contains an inlet and outlet (Cat.
- Page 4 Sampling Ensure the fl ow rate has been set properly (see Calibration). Leave grit pot in place during calibration and sampling. Ensure a fresh cassett e has been installed on the cyclone and the cyclone/cassett e assembly has been inserted into the cassett e holder (see Inserting Cyclone/Cassett e Assembly in Cassett e Holder).
- Page 5 225-111 SKC Limited Warranty and Return Policy SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited Warranty and Return Policy, go to htt p://www.skcinc.com/warranty.
- Page 8 www.skcinc.com Form 37097 Rev 1808...
