The Alignment of Signal to Target
Hard to Show in a picture:
When the Red LEDs indicate
that a target has been "locked"
onto, and the automatic RED
"Position" Laser activates, it will
appear in a "Direct Line" looking
right across the top of the
locator like aiming a pistol. It is
also the direct line angle to the
target.
Provides the "lay" or "direction" of the target:
Please Notice: The "hand" is
not "high up" on the handle,
nor any other object near the
"head" of the locator/detector.

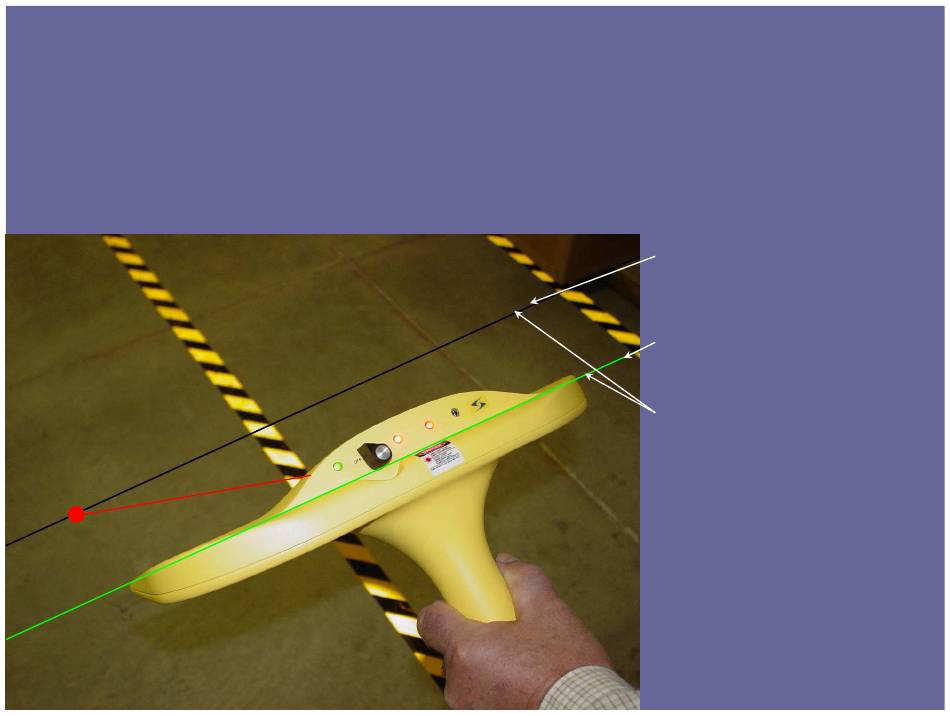

Target Line
Horizontal plane with Laser in Front
Center.
The Target line or edge of an object
must align parallel with the Horizontal
Plane of the locator, for the locator to
"lock onto" the target edge. This
provides "direction" of the target edge.
If one Red LED is solid the locator is
not 'parallel" with the target, OR, there
may be a false target.
Rotate the locator with wrist action
around the axis of the Red LED that is
solid, to attempt to "line the locator up"
with the target.
