Operating Panel & Battery Replacement - SubSurface Instruments AML Operator's Manual

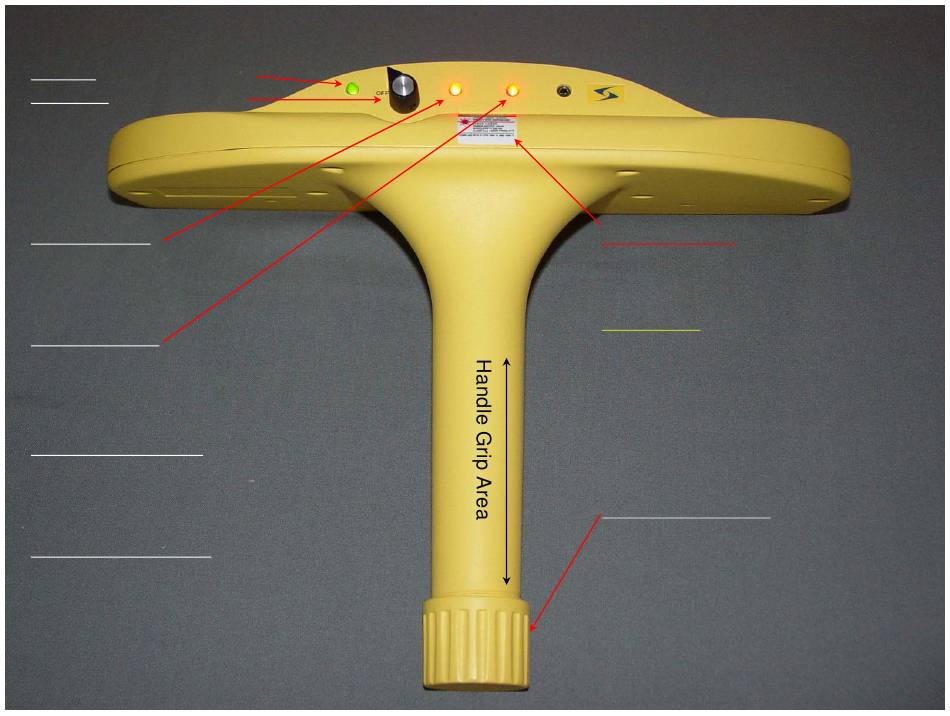

Green LED indicates when unit is "ON"
Pointed Knob is "OFF" in left position,
"ON" in High #3 Sensitivity
"ON" in Med #2 Sensitivity
"ON" in Low #1 Sensitivity
Left Target Indicator:
When the Left Target Indicator "flashes", it has detected the
vicinity of a possible target. When it becomes "solid" it has a
possible target.
Right Target Indicator:
When the Right Target Indicator "flashes", it has detected the
Vicinity of a possible target. When it becomes "solid" it has a
possible target.
Left & Right Target Indicators:
When BOTH Left & Right Target Indicators become solid at
the same time, the unit has detected a Target. AT THAT
MOMENT:
The RED Target Position Laser comes on automatically (not
shown in this photo), and indicates a RED spot on the surface
that is in a direct line to the target.
CAUTION: Do not cross-thread or over-tighten the Battery Cap.
Operating Panel & Battery Replacement
WARNING – DANGER Please Read Label
DO NOT ALLOW eye contact (yourself or anyone else)
This Laser can & will come on (activate automatically)
whether it can be seen or not, whenever the unit is "ON".
DO NOT OPEN, or attempt to open, the Clamshell top
and bottom halves. There are NO user-serviceable
parts inside; AND, the alignment of the
transmitter/receivers will be adversely affected, as
there are molded bosses, shelves, slots, and attach
points for the antennas and electronic components
built into the insides of the clamshells and upper
handle. If this occurs the warranty is automatically
VOID, and factory service is mandatory AT THE
USER'S EXPENSE.
BATTERY REPLACEMENT:
The unit uses just 4 "C" cell batteries. We recommend
alkaline for longer life.
TO CHANGE THE BATTERIES:
1. Unscrew the Battery Cap at the bottom of the handle.
2. Remove & properly discard the old batteries, if any.
3. Insert the new batteries (4), all in the same direction,
into the bottom of the handle, POSITIIVE "+" END
first, one behind the other.
4. Carefully replace the screw cap.
