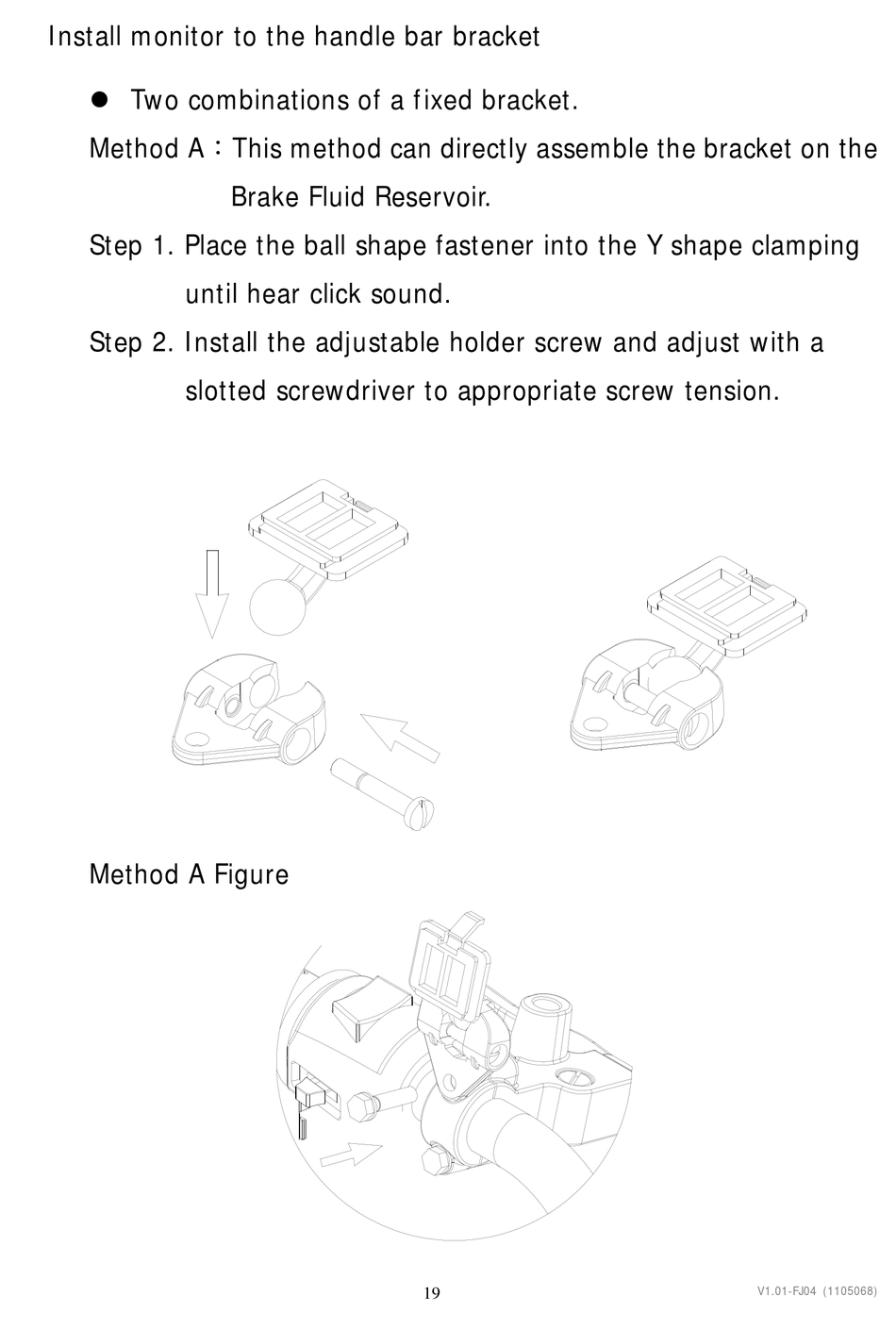

Install monitor to the handle bar bracket

 Two combinations of a fixed bracket.
Method A：This method can directly assemble the bracket on the
Step 1. Place the ball shape fastener into the Y shape clamping
until hear click sound.
Step 2. Install the adjustable holder screw and adjust with a
slotted screwdriver to appropriate screw tension.
Method A Figure
Brake Fluid Reservoir.
19
V1.01-FJ04 (1105068)
