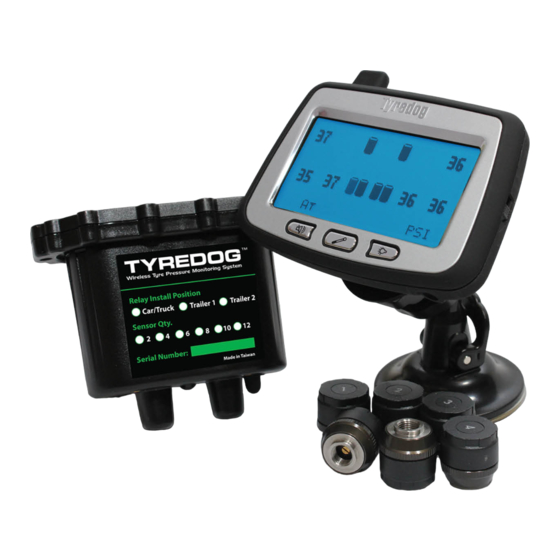

Tyredog TD-2300A Programming Replacement Monitor

TD-2300A / TD2700F – Programming Replacement Monitor.
Before you start. Make sure the relay has power and the relay top cover is removed (If top cover is
fitted remove 2 screws to remove cover) so you can access the programming button.

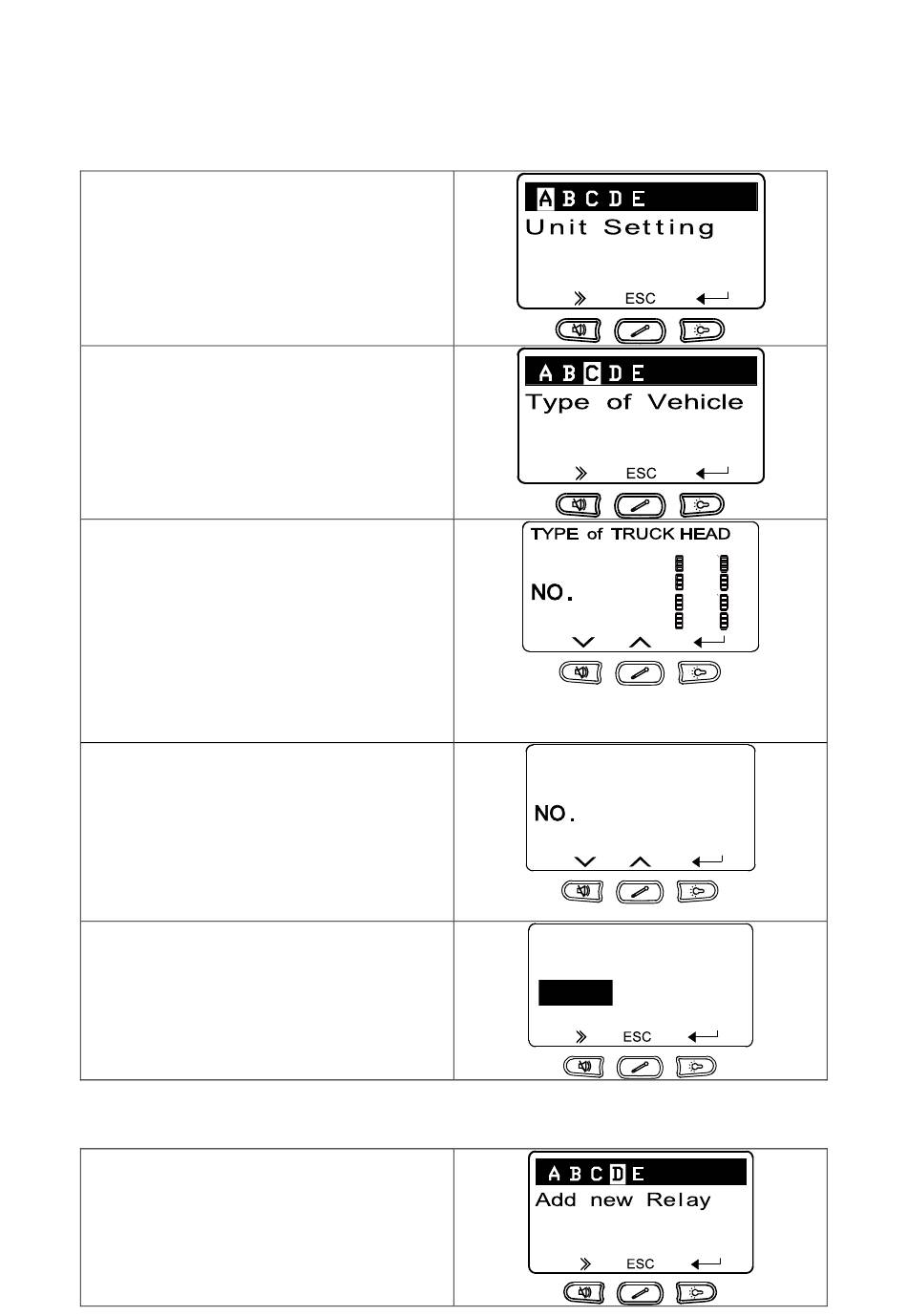

Step 1: Adding a New Monitor to a Relay and Saving the layout.

Press and hold the Mute (Left) button down for
a few seconds until the Unit settings menu
appears.
Press the Mute (Left) button a couple of times
to scroll across to menu C (Type of vehicle),
Press the Backlight (Right) button to enter this
menu. TYPE of TRUCK HEAD and your current
Layout No. will be displayed. Use the Mute
(Left) or Temperature (Middle) button to scroll
through the vehicle layouts until you find your
new layout then press the Backlight (Right
Button) or to keep the existing layout just press
the Backlight (Right Button).
Make sure TYPE of TRAILER is set to NO.1 NONE
by using the Mute (Left) or Temperature
(Middle) button to scroll through the vehicle
layouts then press the Backlight (Right Button).
Note: If you do have Trailer Relays, then you
would need to select your Trailer Layout for
each Trailer.
Make sure Receive from Relay is highlighted
Black like shown then press the Backlight (Right
Button) and this will take you back to the
settings menu. Applicable to TD-2700F Models
only.
Press the Mute (Left) button to scroll across to
menu D (Add new Relay).
15
TYPE of TRAILER 1
1 NONE
Receive From
Sensor
Relay
