ZIGBIT 900 MHZ WIRELESS MODULES
Features
Compact size (38.5 x 20.0 mm)
High RX sensitivity (-103 dBm)
Outperforming link budget (up to +112 dB)
Up to +9.0 dBm output power
Very low power consumption:
8.7 mA in RX mode
34.8 mA in TX mode
0.6 µA in sleep mode
Ample memory resources (256K Bytes In-System, Self-Programmable Flash
memory, 4K Bytes EEPROM, 16K Bytes SRAM)
Wide range of interfaces (both analog and digital)
4- wire SPI, TWI
ISP, JTAG
2 Analog comparator Input
UART, USART
Timer, PWM
4 ADC lines
External Clock Input, Internal Clock Output
Upto 32 lines configurable as GPIO
®
Preassigned Atmel
MAC address that can be used on end product
Capability to use MAC address into the internal EEPROM
®
IEEE
802.15.4 compliant Transceiver
900MHz ISM band
Serial bootloader
High Performance Low power AVR XMEGA 8/16-bit Microcontroller
Rapid design-in with built-in Chip Antenna
RF Test point using MS-147 RF connector
Small physical footprint and low profile for optimum fit in very small application
boards
Mesh networking capability
Easy-to-use low cost development kit
Single source of support for HW and SW
Worldwide license-free operation
(1)
(1)
(2)
ATZB-X0-256-4-0-CN
DATASHEET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZIGBIT ATZB-X0-256-4-0-CN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atmel ZIGBIT ATZB-X0-256-4-0-CN

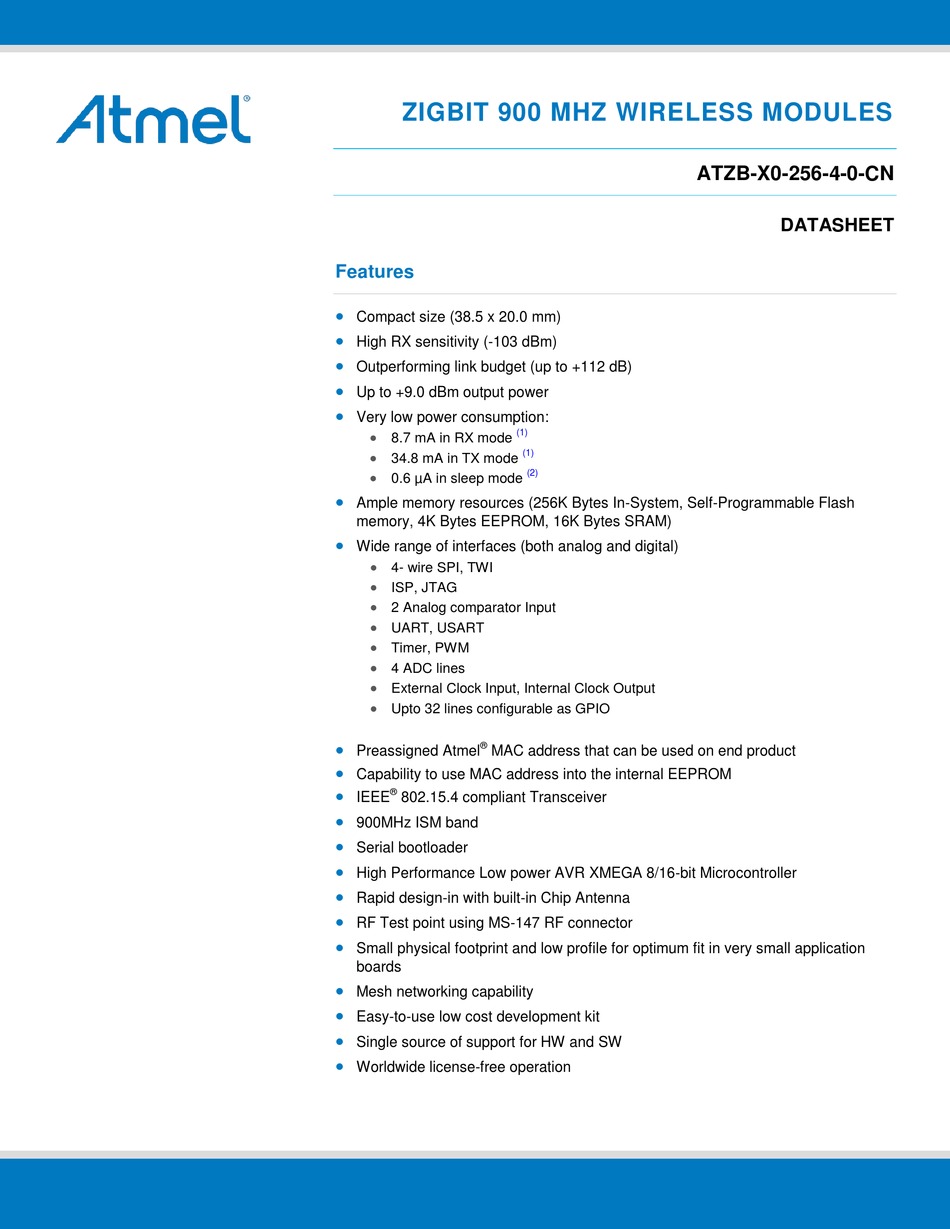

  • Page 1  External Clock Input, Internal Clock Output  Upto 32 lines configurable as GPIO  ® Preassigned Atmel MAC address that can be used on end product  Capability to use MAC address into the internal EEPROM  ® IEEE 802.15.4 compliant Transceiver...
  • Page 2: Table Of Contents

    Note: 1. MCU is in active state with 3V Supply, CPU clock @ 16MHz, RX RPC enabled (for RX current), PHY_TX_PWR=0x0 (for TX current), All digital outputs pulled high. 2. Controller Sleep Mode – SLEEP_MODE_PWR_DOWN Note: Table of Contents 1. Introduction ..................3 Summary ......................
  • Page 3: Introduction

    ® Atmel . Based on the innovative mixed-signal hardware platform from Atmel, this module uses the ATXMEGA256A3U [1] Microcontroller and AT86RF212B [5] 700/800/900 MHz ISM band Transceiver. The radio transceiver provides high data rates from 20 kb/s up to 1 Mb/s, frame handling, outstanding receiver sensitivity and high transmit output power enabling a very robust wireless communication.
  • Page 4: Related Documents

    Wireless networking standards targeted at low-power applications 802.15.4 The IEEE 802.15.4-2003 standard applicable to low-rate wireless Personal Area Network Related documents [1] ATXMEGA256A3U Datasheet in http://www.atmel.com/devices/ATXMEGA256A3U.aspx?tab=documents [2] MS-147 Series Interface RF Connector with Switch, 3.9mm High, DC to 6GHz http://www.hirose.co.jp/cataloge_hp/e35801505.pdf ATZB-X0-256-4-0-C [ZigBit 900 MHz Wireless Modules]...
  • Page 5 [3] IEEE Std 802.15.4-2003 IEEE Standard for Information technology - Part 15.4 Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs) [4] ZigBee Specification. ZigBee Document 053474r17, October 19, 2007 [5] AT86RF212B Datasheet in http://www.atmel.com/devices/AT86RF212B.aspx?tab=documents ATZB-X0-256-4-0-C [ZigBit 900 MHz Wireless Modules]...
  • Page 6: Zigbit Module Overview

    The ATZB-X0-256-4-0-CN ZigBit is a compact, low-power, high sensitivity IEEE 802.15.4/ZigBee OEM module. Based on a solid combination of the latest Atmel MCU Wireless hardware platform, 900 MHz ISM band transceiver and Atmel Studio Wireless Composer - the ZigBit offers an unmatched combination of superior radio performance, ultra-low power consumption and exceptional ease of integration.
  • Page 7 Every ZigBit Module come pre loaded with Atmel assigned 64-bit MAC address stored in the signature bytes of the device. This unique IEEE MAC address can be used as the MAC address of the end product, so there is no need to buy a MAC address separately for the product using the ZigBit.
  • Page 8: Specification

    Specification Electrical Characteristics 3.1.1 Absolute Maximum Ratings (1)(2) Table 3-1. Absolute Maximum Ratings Parameter Minimum Maximum Voltage on any pin, except RESET with respect to ground -0.3V 3.6V (V DD max Input RF level +10 dBm Current into Vcc pins 200 mA Absolute Maximum Ratings are the values beyond which damage to the device may occur.
  • Page 9: Rf Characteristics

    3.1.3 RF Characteristics Table 3-3. RF Characteristics Parameter Condition Range Unit Frequency band – FCC and Industry Canada 902 – 928 Numbers of channels (FCC and Industry Canada) Channel spacing Transmitter output power Adjusted in 36 steps -25 to +11 Receiver sensitivity PER = 1% -103...
  • Page 10: Atxmega256A3U Microcontroller Characteristics

    3.1.4 ATXMEGA256A3U Microcontroller Characteristics Table 3-5. ATXMEGA256A3U Characteristics. Parameter Condition Range Unit On-chip flash memory size 256K Bytes On-chip RAM size Bytes On-chip EEPROM size Bytes Operation frequency 3.1.5 Module Interfaces Characteristics Table 3-6. Module Interfaces Characteristics Parameters Condition Range Unit UART maximum baud rate 115.2...
  • Page 11: Pin Configuration

    Pin configuration Table 1 ATZB-X0-256-4-0-CN Pinout description Pin Out Pin descriptions Function AVSS Analog Ground AVSS Analog Ground DEVDD Digital Power input pin DEVDD Digital Power input pin RSET/PDI_CLOCK RESET PD4/SS PD5/MOSI/XCK1 PD6/MISO/RXD1/D- PD7/SCK/TXD1/D+ GPIO / ADC / Analog COMP+ GPIO/ADC/Analog Comp- DVSS Digital Ground...
  • Page 12: Antenna Orientation Recommendation

    PE4/SYNC/OC1A Master Clock out put GPIO/Timer DVSS Digital Ground DVSS Digital Ground NOTE: TXD, RXD of UART are crossed inside ZigBit Module. External UART devices connecting to ZigBit Module should follow straight connection for UART. UART_TXD_external_device <-> UART_TXD UART_RXD_external_device <-> UART_RXD Antenna Orientation Recommendation Mounting information The Figure below shows the PCB layout recommended for a ZigBit module.
  • Page 13: Antenna Reference Designs

    Antenna reference designs Multiple factors affect proper antenna match, hence, affecting the antenna pattern. The particular factors are the board material and thickness, shields, the material used for enclosure, the board neighborhood, and other components adjacent to antenna. Following guidelines need to be followed when designing the base board for the ZigBit. General Recommendations: ...
  • Page 14: Persistence Memory

    Flash Commands” in Xmega AU manual [1] for details in reading the user signature data from application software Note: 1 The MAC address stored inside the MCU is a uniquely assigned ID for each ZigBit and owned by Atmel. User of the ZigBit application can use this unique MAC ID to address the ZigBit in end-applications.
  • Page 15: Ordering Information

    Ordering information Ordering information Part number Description ATZB-X0-256-4-0-CN 900 MHz IEEE802.15.4/ZigBee OEM module based on ATXMEGA256A3U MCU and AT86RF212B Transceiver with MS-147 test connector and chip antenna, Single unit ATZB-X0-256-4-0-CNR 900 MHz IEEE802.15.4/ZigBee OEM module based on ATXMEGA256A3U MCU and AT86RF212B Transceiver with MS-147 test connector and chip antenna, Tape &...
  • Page 16: Agency Certifications

    Agency Certifications United States (FCC) This equipment complies with Part 15 of the FCC rules and regulations. To fulfill FCC Certification requirements, an OEM manufacturer must comply with the following regulations: The ATZB-X0-256-4-0-CN modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.
  • Page 17 This equipment complies with radio frequency exposure limits set forth by Industry Canada for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the device and the user or bystanders. Cet équipement est conforme aux limites d'exposition aux radiofréquences définies par Industrie Canada pour un environnement non contrôlé.
  • Page 18: Appendix A. Revision History

    Revision history Appendix A. Doc. Rev. Date Comments 16.Jul.13 Internal Initial release 06.Dec.13 Added Electrical characteristics, and more sections ATZB-X0-256-4-0-C [ZigBit 900 MHz Wireless Modules]...
  • Page 19 Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
