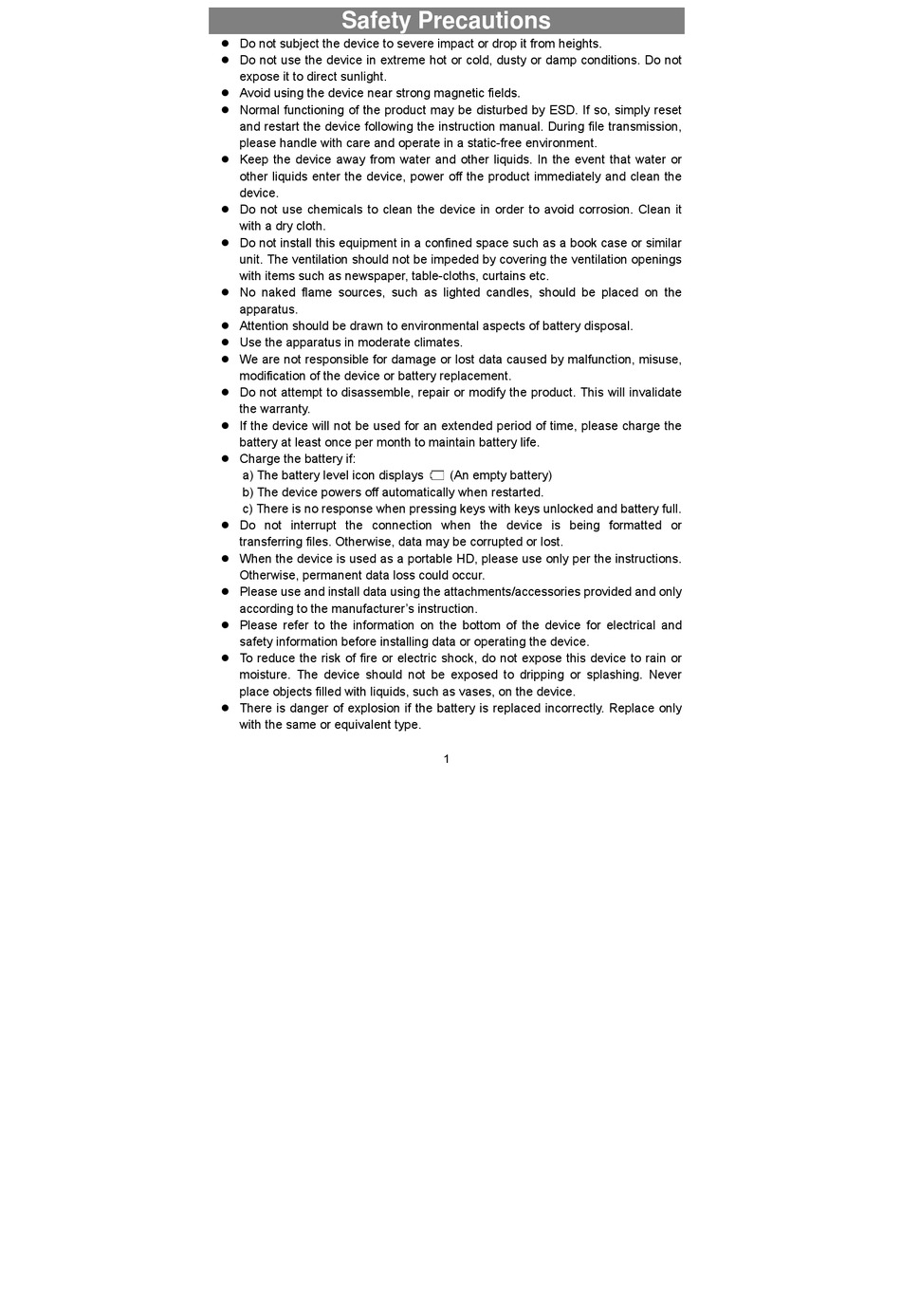

Safety Precautions

Do not subject the device to severe impact or drop it from heights.
Do not use the device in extreme hot or cold, dusty or damp conditions. Do not
expose it to direct sunlight.
Avoid using the device near strong magnetic fields.
Normal functioning of the product may be disturbed by ESD. If so, simply reset
and restart the device following the instruction manual. During file transmission,
please handle with care and operate in a static-free environment.
Keep the device away from water and other liquids. In the event that water or
other liquids enter the device, power off the product immediately and clean the
device.
Do not use chemicals to clean the device in order to avoid corrosion. Clean it
with a dry cloth.
Do not install this equipment in a confined space such as a book case or similar
unit. The ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains etc.
No naked flame sources, such as lighted candles, should be placed on the
apparatus.
Attention should be drawn to environmental aspects of battery disposal.
Use the apparatus in moderate climates.
We are not responsible for damage or lost data caused by malfunction, misuse,
modification of the device or battery replacement.
Do not attempt to disassemble, repair or modify the product. This will invalidate
the warranty.
If the device will not be used for an extended period of time, please charge the
battery at least once per month to maintain battery life.
Charge the battery if:
a) The battery level icon displays
b) The device powers off automatically when restarted.
c) There is no response when pressing keys with keys unlocked and battery full.
Do not interrupt the connection when the device is being formatted or
transferring files. Otherwise, data may be corrupted or lost.
When the device is used as a portable HD, please use only per the instructions.
Otherwise, permanent data loss could occur.
Please use and install data using the attachments/accessories provided and only
according to the manufacturer's instruction.
Please refer to the information on the bottom of the device for electrical and
safety information before installing data or operating the device.
To reduce the risk of fire or electric shock, do not expose this device to rain or
moisture. The device should not be exposed to dripping or splashing. Never
place objects filled with liquids, such as vases, on the device.
There is danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type.
(An empty battery)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC70XE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Archos AC70XE

  • Page 1: Safety Precautions

    Safety Precautions Do not subject the device to severe impact or drop it from heights.  Do not use the device in extreme hot or cold, dusty or damp conditions. Do not  expose it to direct sunlight. Avoid using the device near strong magnetic fields. ...
  • Page 2 The battery (battery or batteries or battery pack) should not be exposed to  excessive heat such as sunlight, fire or the like. Please follow responsible procedures for battery disposal.  If the power adaptor disconnected from the device, the device will remain ...
  • Page 3: Listening Cautions

    Listening Cautions This product respects the current regulations for limiting the output volume of  consumer audio devices to a safe level. By listening to your device with headphones or earbuds at high volumes, you run the risk of permanent damage to your ears.
  • Page 4: Table Of Contents

    Table of Content   Safety Precautions...................... 1   Listening Cautions ...................... 3   Feature Summary ....................... 5   Accessories ........................ 5   Buttons & Ports......................5   Basic Connections ...................... 6   Basic Operation ......................7   Major Applications..................... 11  ...
  • Page 5: Feature Summary

    Feature Summary ●Wi-Fi & 2G network ●3rd-party Apps ● GPS Navigation ●7.0” Touch Screen ● Media Entertainment ● Front & Rear Webcam ●Built-in G-sensor ● Phone Call & Message Accessories Main Unit ● USB cable ● AC Adaptor  User Manual ●...
  • Page 6: Basic Connections

    Basic Connections Charging the Battery The device has a built-in rechargeable battery. Charge the device when the battery level is low. To charge the battery, connect the device to a power adaptor via the USB port. It takes a few hours to fully charge the battery. Note: a.
  • Page 7: Basic Operation

    Connecting to PC for transferring files Before reading or playing files, you need to transfer media files from a computer to the device. (1) Connect the device to a computer with the supplied USB cable. (2) Tap “Turn on USB storage” to connect the device to computer. (3) Once connected, two removable disk drives will show on your computer.
  • Page 8 Unlock the Screen The screen will be locked after the device is idle for a few seconds. You need to unlock the screen by dragging the lock icon rightwards. Customizing Home Screen Items  To add a Home Screen item (shortcut, widget etc.), you can tap the application icon display all applications and widgets, then hold your tap on an item to place it on the home page.
  • Page 9 desired location, and release it.  To remove a Home Screen item, hold your finger onto it to highlight it, drag it to the recycle bin symbol “X” and then release your finger.  To change the wallpaper, hold your tap on the Home screen until a menu appear. Tap on “Wallpaper”...
  • Page 10 You can access to the Internet easily with Wi-Fi and 2G networks. 1) Make WI-FI Connection Tap the Setting icon on the Home Screen to open the settings menu. b. Select “WIFI” and slide the toggle switch to “ON” to turn on WIFI. c.
  • Page 11: Major Applications

    Turn on the Bluetooth on the device by switching the Bluetooth setting on. The device should search for devices with Bluetooth nearby and display them. Tap the target device to pair. Follow the onscreen instructions to complete pairing. Once two devices are paired, enter the file manager mode, hold your tap on the file that you want to transfer until a menu pop up.
  • Page 12  You can drag your finger up and down on the file list to scroll through it.  Tap a song to play. Shuffle songs In the library, tap the Menu icon to display options – Play all, Party shuffle and Shuffle all.
  • Page 13 Playlist The playlist is a list of songs that you have added manually. To add the current track to a playlist, tap during playback, selelect “Add to playlist” and then choose a playlist or tap “new” to create a new playlist. To play a playlist, (1) In the Music menu, tap the Playlist icon to display all the playlist.
  • Page 14 Tap a photo thumbnail to view the photo in full screen. To display the previous/next picture, slide your finger on the screen horizontally. To zoom in or out the picture, pinch your finger on the picture. Display Menu When you are viewing the picture, you can tap on the screen or the Menu icon show a menu.
  • Page 15 Using the Webcam Tap the Camera in the apps page to launch the Camera. Front/back camera switch Photo Browse Face beauty mode Photography mode VCR mode Settings File Manager You can explore files and folders with the ES File Manager application. Enter the File Manager application, and you can see all the folders and media files stored in the device.
  • Page 16 In the Home Screen, tap the Applications shortcut to display all applications and then tap the Email icon to launch the e-mail application. Setup Email Account First you need to setup an E-mail account for receiving or sending emails. (1) Start up the email application by tapping the Email application icon and you are prompted to setup an account.
  • Page 17 account. You can edit these settings as you want. View Emails You should enter your mailbox when you start up the email application.  In the mailbox, you can slide your finger up and down to scroll through the email list. ...
  • Page 18: Troubleshooting

    application. Note:  You cannot uninstall the pre-installed applications.  Some of the applications developed for Android mobile might not run properly in the Device. Please consult the respective software developer for further information. Close Recent Applications Your device can remember applications that you used recently. That’s very useful when you want to go back to a window you opened recently.
  • Page 19 Operating GSM/GPRS/EDGE: 850 MHz/1900 MHz Bands Weather Forecast Support JPEG(Baseline) : 10*24pixels to 10000*10000 pixels Photo Format BMP: 10*24pixels to 1200*1200 pixels PNG: 10*24pixels to 10000*10000 pixels File MP3/ FLC /WAV/ OGG / AMR /AAC/ M4A Format MP3: 8~48KHZ/8~320Kbps,CBR and VBR FLC: 8~44KHZ/8~320Kbps,CBR and VBR Audio Coding...
  • Page 20 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 21 This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR.
