OFF
FBD
OPN
RES

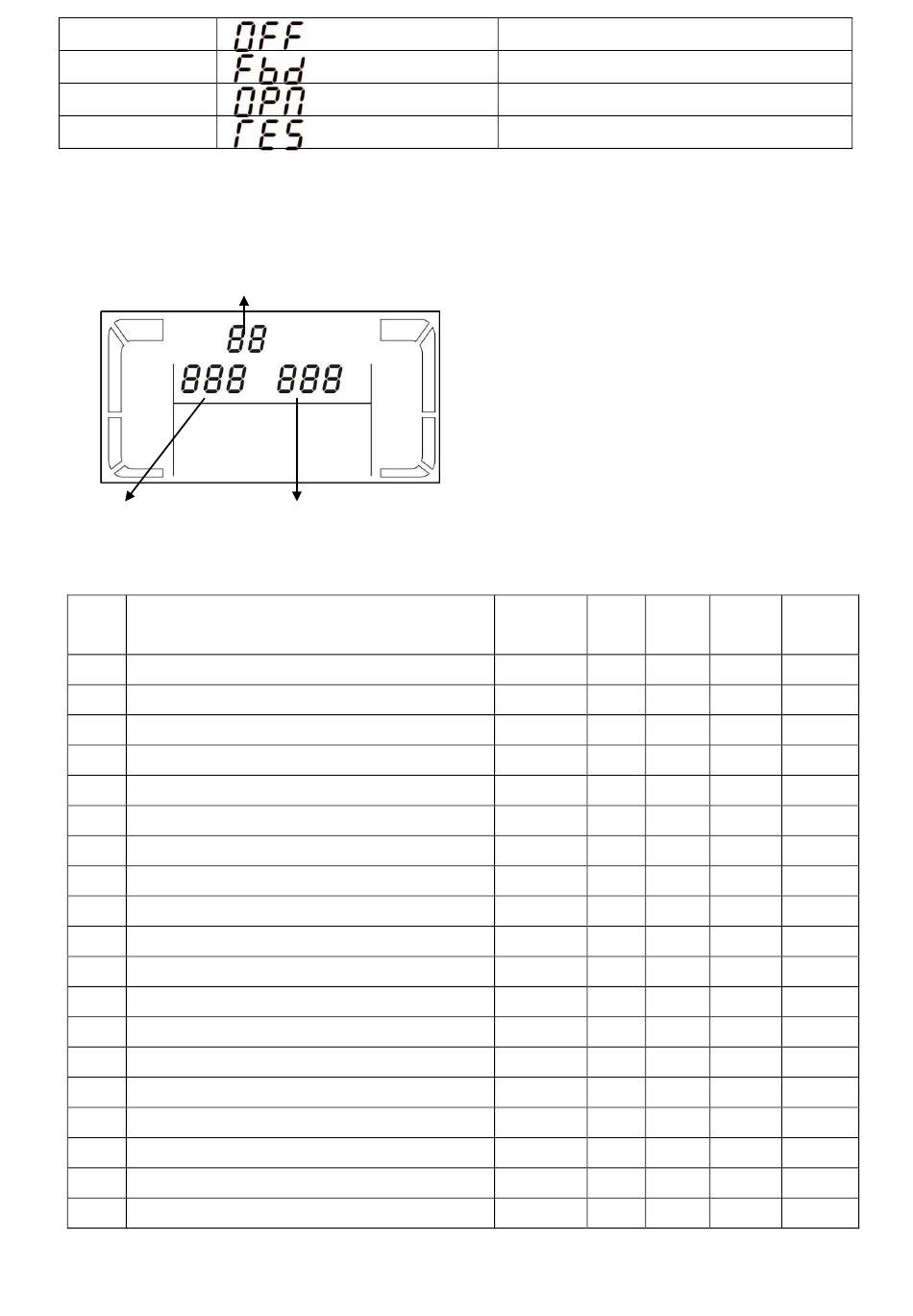

3-6. LCD Setting

There are three parameters to set up the UPS. Refer to the following diagram.
Parameter 1
Parameter 2
List of 20 programs available for parameter 1:
Code Description
01 Output voltage
02 Output frequency
03 Voltage range for bypass
04 Frequency range for bypass
05 Reserved
06 Reserved
07 Reserved
08 Bypass mode setting
09 Battery maximum discharge time setting
10 Reserved
11 Reserved
12 Reserved
13 Battery voltage adjustment
14 Charger voltage adjustment
15 Output voltage adjustment
16 Reserved
17 Reserved
Charger's maximum current setting
18
19 Battery capacity and groups setting
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
37 Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr –
Parameter 3
03 17 AA 59 204 10
Off
Not allowed
Allow
Reserved
Parameter 1 is for program alternatives. There
are 20 programs to set up. Refer to the table
below.
Parameter 2 and parameter 3 are the setting
options or values for each program.
NOTE: Select "Up3 or "Down" buttons to
change the programs or parameters.
Bypass AC CVCF Battery
Y
Y
Y
Y
Y Y
Y Y Y
Y Y Y
Y Y Y
Y Y
Y Y Y
Y Y Y
Battery
Test
Y Y
Y Y
Y Y
Y
Y Y
Y Y
