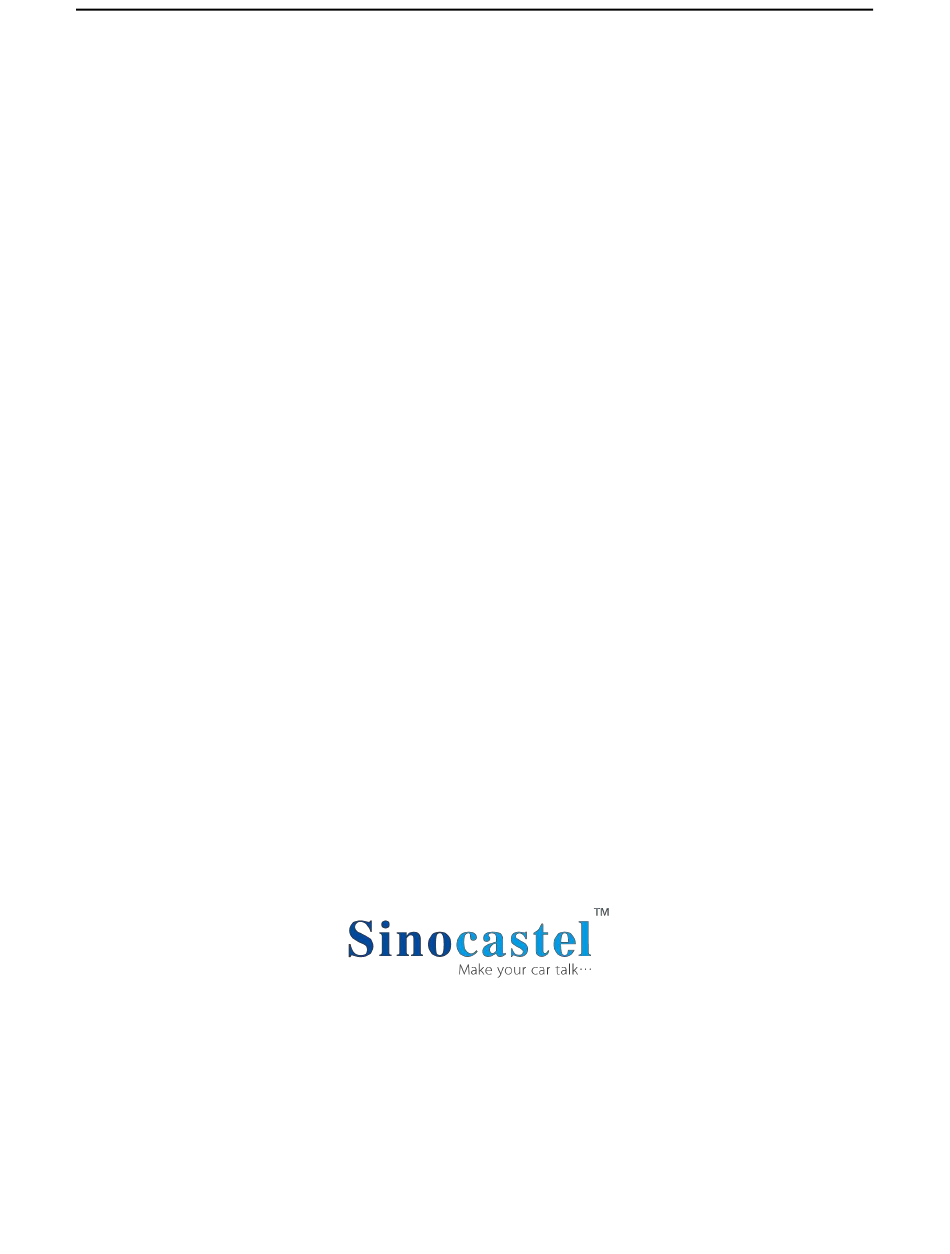

- Page 1 IDD215B User Manual IDD-215B User Manual (Rev.1.0) China Aerospace Telecommunications (Shenzhen) Ltd September, 2016...
-
Page 2: Table Of Contents
IDD215B User Manual Contents Contents................................2 1. Introduction..............................3 2. Specifications............................4 2.1 External Interface........................... 4 2.2 Status Indicator ..........................4 2.3 Technical Parameters........................5 3. Installation Instruction..........................7 3.1 OBD Port............................7 3.2 Device Installation.......................... 8 4. Functions ..............................8 4.1 OBD Protocols..........................8 4.2 Regular Diagnostic Data Reporting.................... -
Page 3: Introduction
IDD215B User Manual 1. Introduction IDD-215B is an intelligent on-board diagnostic device with OBD II and J1939 compliant, it could read various kinds of data including diagnostic info, mileage, fuel consumption and driving behavior, and real-time display on Android and IOS devices via Bluetooth. -
Page 4: Specifications
IDD215B User Manual 2. Specifications 2.1 External Interface Product appearance as follows： Standard OBD Connector It is used to connect to the 16 pin on-board Diagnostic Link Connector (DLC). The vehicleOBD system is able to communicate with an external device which has the same protocol via this connector. -
Page 5: Technical Parameters
IDD215B User Manual Solid off– No OBD communication 2.3 Technical Parameters Size 28mm (L) x 44mm (W) x 26mm (H) Weight Mechanical Color White, Grey Interface OBDII interface Data transmission Bluetooth Storage 8MB FLASH, store up to 200 hours trip data ISO 9141-2 ISO 14230-4 OBD protocol... - Page 6 IDD215B User Manual Accessories OBD II extension cable Environment Working Temperature -30℃ ~ +70℃ Storage Temperature -40℃ ~ +85℃ 5%～95%（no frog） Humidity...
-
Page 7: Installation Instruction
IDD-215B User Manual 3. Installation Instruction 3.1 OBD Port In general, the OBD port is located in the driver or passenger cabin, from the edge of dashboard on driver s i d e to the border of 300mm.It i s easy to touch by sitting in the driver's seat;... -
Page 8: Device Installation
IDD-215B User Manual 3.2 Device Installation Plug the device into OBD port Start engine, with successful OBD communication the OBD light changes its status to solid on. Then device begins to connect app, with successful network registration the Bluetooth light change its status to b linking every 2 times. -
Page 9: Regular Diagnostic Data Reporting
IDD-215B User Manual 4.2 Regular Diagnostic Data Reporting Device is able to read variety of vehicle diagnostic data, including vehicle speed, engine RPM, engine coolant temperature, mass flow air, etc, and reports up to 10 types of diagnostic data according to configured time interval. -
Page 10: Trip Fuel Consumption
IDD-215B User Manual 4.7 Trip Fuel Consumption At the end of the trip, device will report the fuel consumption to server. 4.8 Driving behavior monitoring Real-time monitor bad driving behavior, including Speeding, High RPM, Hard Acceleration, Hard Brake, Excessive Engine Idle Time 4.9 Alarms and Events Reporting... -
Page 11: Disclaimer
To make sure the products works well, please use the original accessories. This manual is based on the “as-is” situation. Sinocastel will not guarantee the accuracy, reliability, content of the hand book. Also Sinocastel reserves the right to a mend or drawn this manual without any prior notification. -
Page 12: Warranty
If product got quality problem with in the warranty period, please bring the product together with avoid warranty card and purchase invoice to the dealer for checking. Please do not disassemble this product, this may result in damage, Sinocastel will not be responsible for those problem. -
Page 13: Statement
Sinocastel reserves the rights to modify or improve these products without any prior notification. Sinocastel reserves the rights to change or cancel the content of this document without any prior notification. All rights reserved by Sinocastel Co.,Ltd Address: 5/F, 5th Building, Software Park, No.2 Gaoxin C.3rd Road Hi-Tech.Industrial Part,Shenzhen,China.
